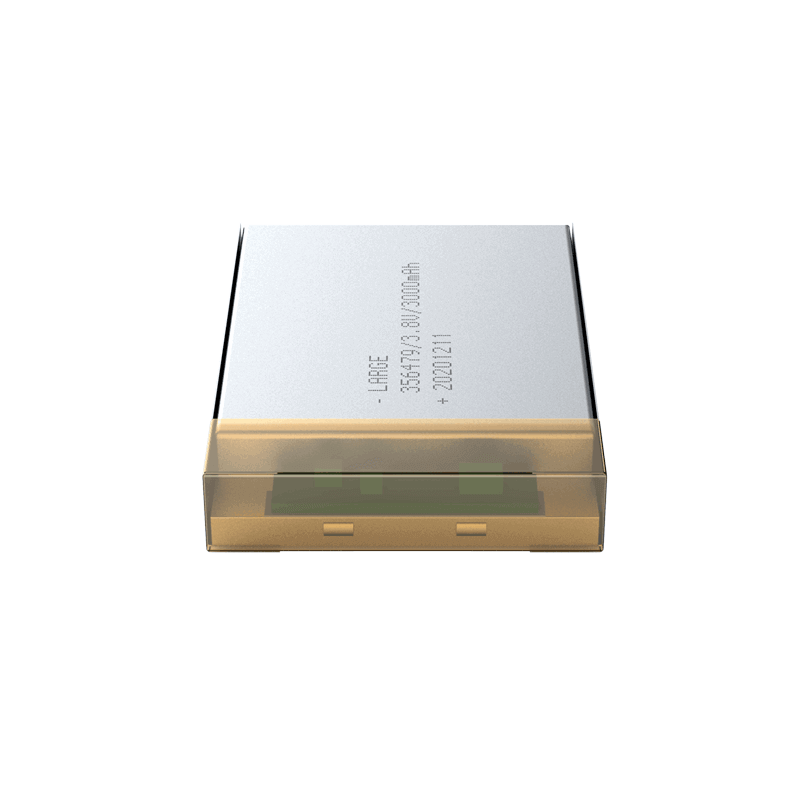

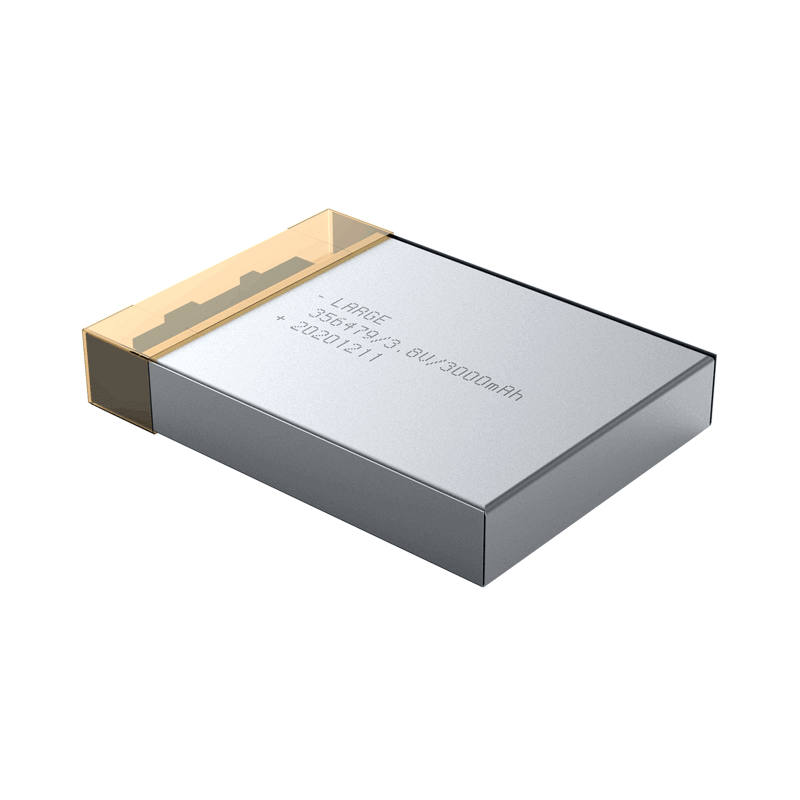

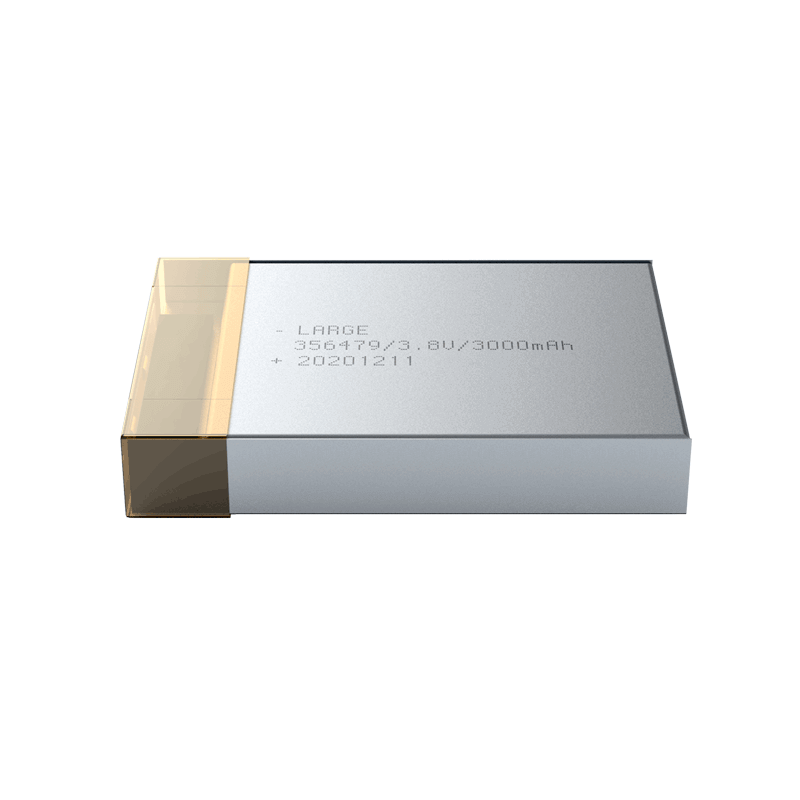

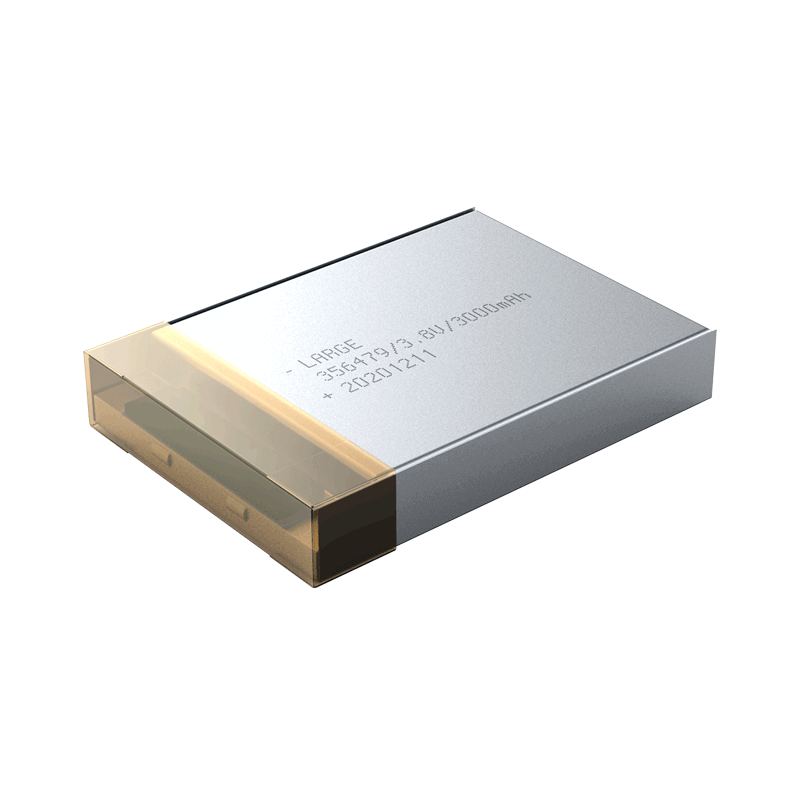

3.8V 3000mAh Lithium Polymer Battery for Data Collection Terminal

Product Number: 06DQ046-02

Cell model: 356479-3000MAa-3.8V

Battery specification: 356479-1S1P-3000Mah-3.8V

Product dimension: 85×65×4mm (Max)

Nominal voltage: 3.8V

Nominal capacity: 3000mAh

Charging voltage: 4.4V

Charging current: ≤ 1.5A

Discharge current: ≤ 1.5A

Discharge cut-off voltage: 5.0V

Finished product internal resistance:  60 mΩ or less

Battery weight: 50G

Charging temperature: 0 ~ 45℃

Discharging temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery case: simple package

Lithium battery protection: no protection

Application: Portable equipment, data collection terminal

Product features

1.Simple package is simple, reliable and easy to install.

2.Connector plug terminal: The JST plug output mode increases conductive reliability;

3.The battery has good safety, nice discharge performance and long cycle life.

4.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
