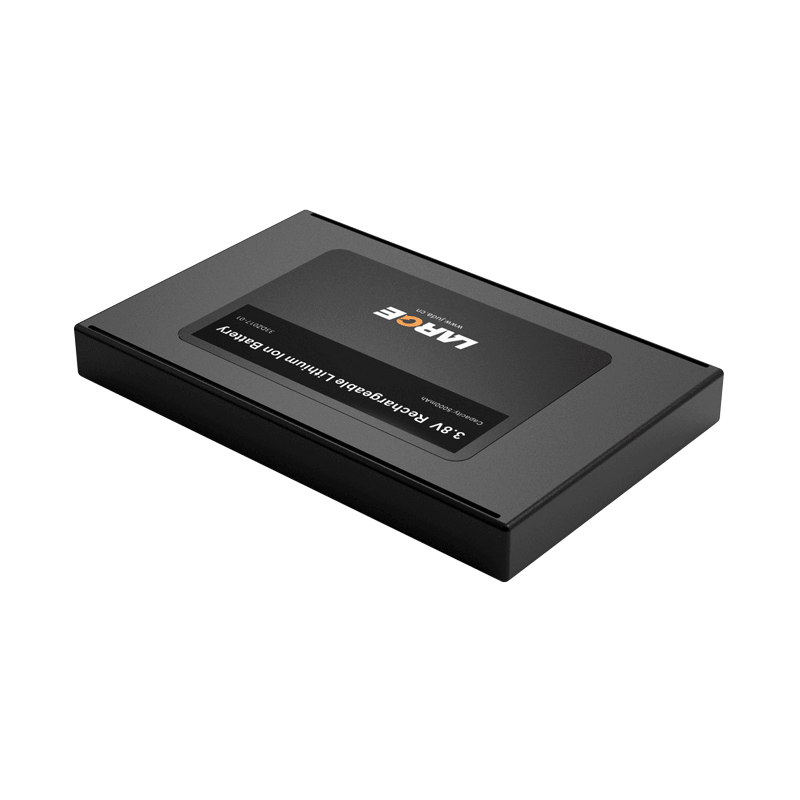

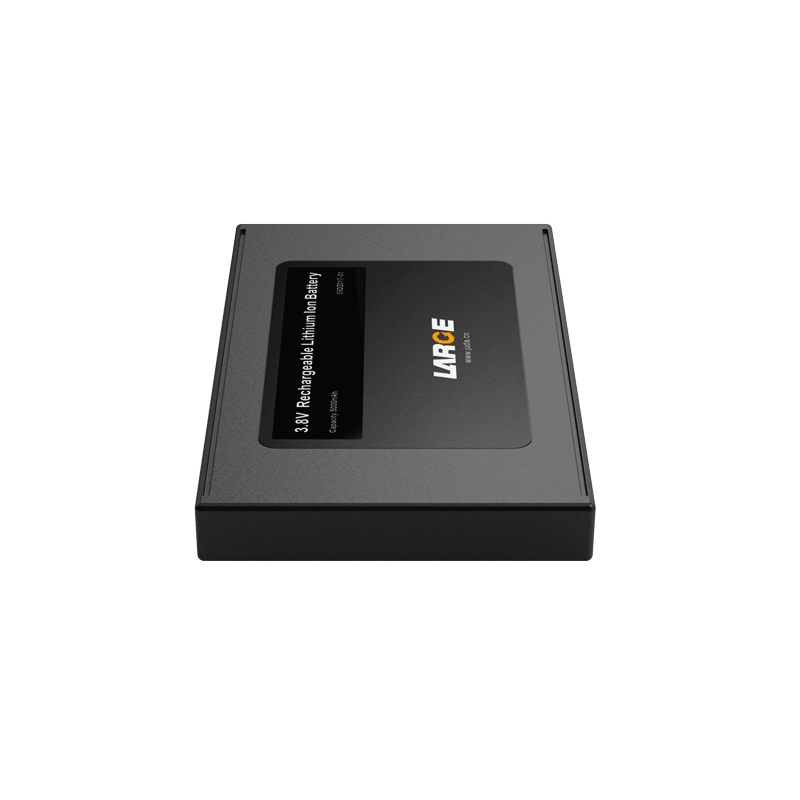

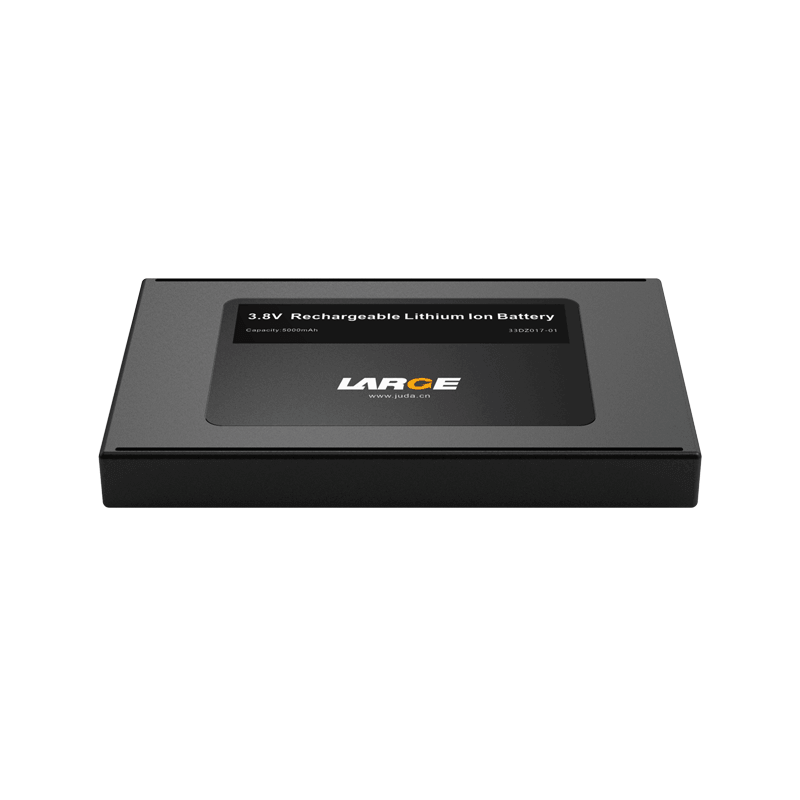

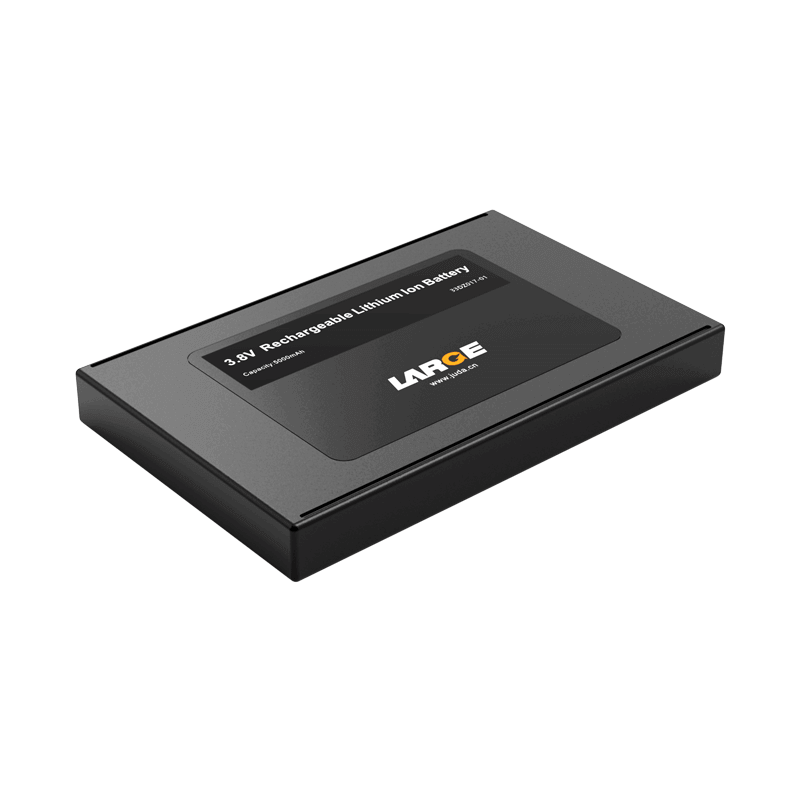

825085 3.8V 5000mAh Lithium Polymer Battery for Handheld Device

825085 3.8V 5000mAh Lithium Polymer Battery for Handheld Device
825085 3.8V 5000mAh Lithium Polymer Battery for Handheld Device
825085 3.8V 5000mAh Lithium Polymer Battery for Handheld Device
825085 3.8V 5000mAh Lithium Polymer Battery for Handheld Device

Product Detail

Project number : 33DZ017-01

Cell model: 825085/5000mah /3.8V

Battery specification: 1S1P/5000mAh/3.8V

Nominal voltage: 3.8V

Nominal capacity: 5000mAh

Charging voltage: 4.35V

Charging current: ≤ 2.5a

Discharging current: 3.5A

Instantaneous discharge current: 5-10A

Discharge cut-off voltage: 2.8V

Finished product internal resistance: 200 mΩ or less

Battery weight: 82G

Product dimension: 10*57*90mm

Charging temperature: 0 ~ 45℃

Discharging temperature: -20 ~ 60℃

Storage temperature: -20 ~ 45℃

Battery case: Plastic case

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,NTC, etc.

Application: handheld terminal batteries

*
*
*
