Custom Lithium ion Battery Pack

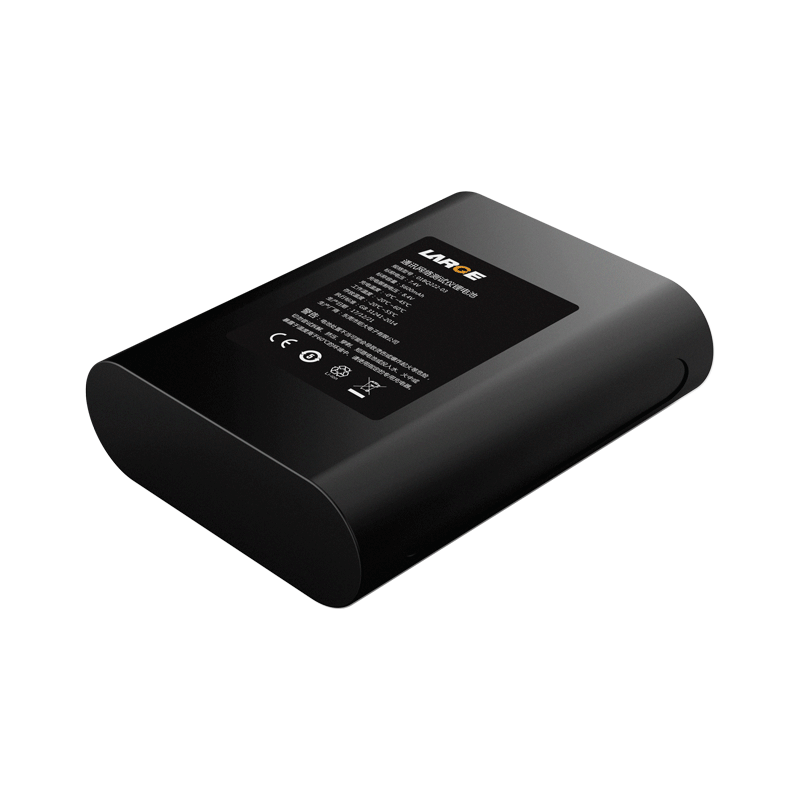

7.4V 5.2Ah 18650 Lithium Ion Battery BIC Battery for Communication Network Tester

  • Model number:01BQ222-03

  • Nominal voltage:7.4V

  • Nominal capacity:5600mAh

  • Battery cell:18650/3.7/2800mAh

  • Dimension:74.5*68*20mm(Max)

  • Application:communication network tester, testing equipment

Product Detail

Product number: 01BQ222-03

Cell model:18650/3.7V/2600mAh

Battery specification: 18650/2S2P/7.4V/5600mAh

Nominal voltage:7.4V

Nominal capacity:5600mAh

Charging voltage: 8.4V

Charging current: ≤2000mA

Discharging current: 2000mA

Instant discharging current: 3000mA

End-off voltage: 6.0V

Internal resistance: ≤150mΩ

Battery weight: 200g

Product dimension: 74.5*68*20mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection and overcurrent protection.

Application field: communication network tester, testing equipment


*
*
*
