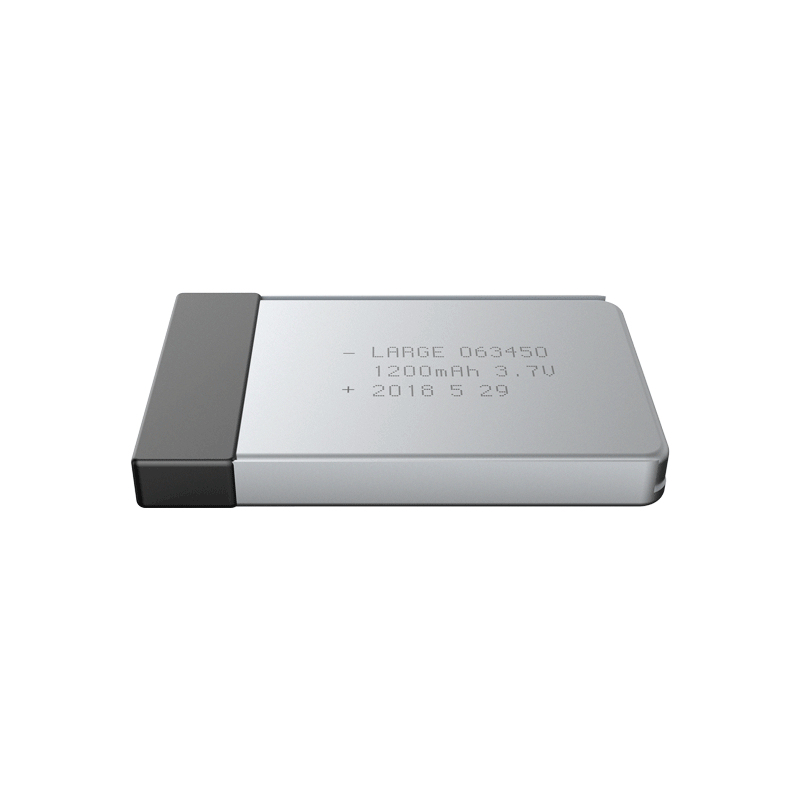

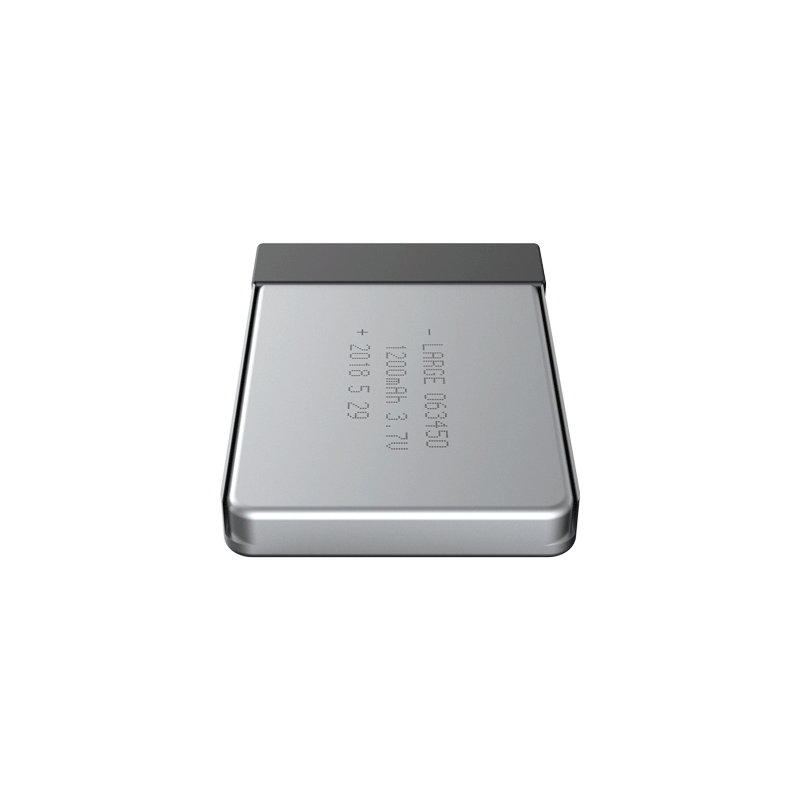

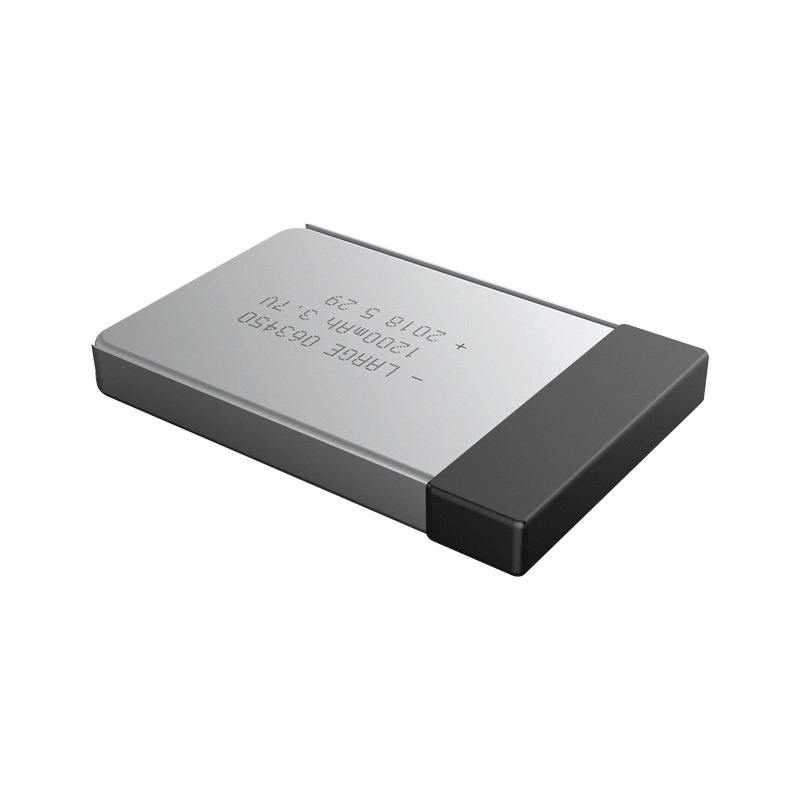

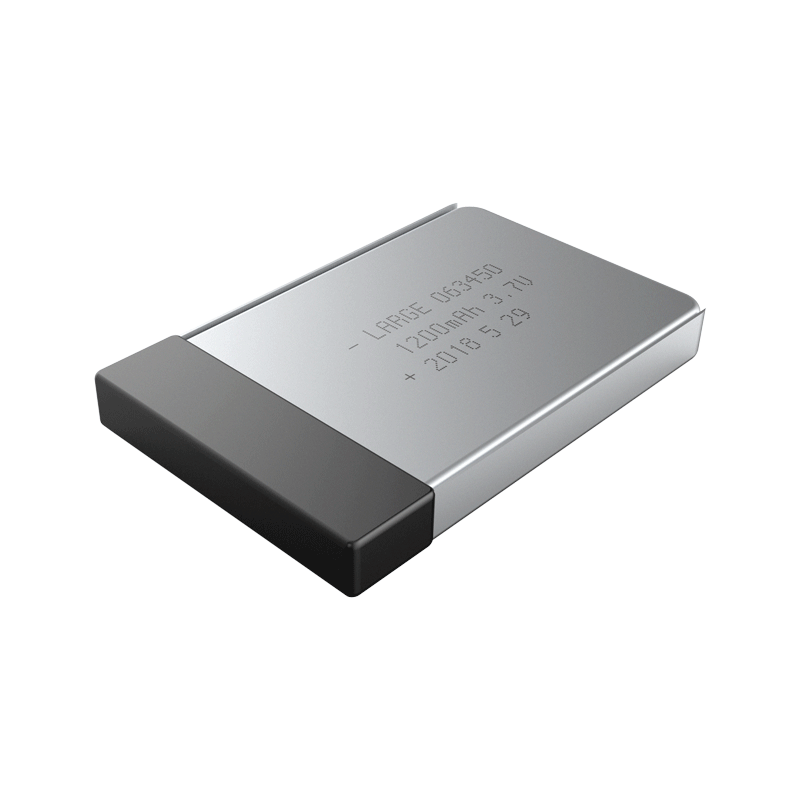

3.7V 1200mAh Lithium Ion Battery for Electrocardiograph

3.7V 1200mAh Lithium Ion Battery for Electrocardiograph

Product number: 09AQ071-07

Cell model：063450/3.7V/1200mAh

Battery specification: 063450-1S1P/3.7V/1200mAh

Nominal voltage：3.7V

Nominal capacity：1200mAh

Charging voltage: 4.2V

Charging current: ≤550mA

Discharging current: 550mA

Instant discharging current: 1.0A

End-off voltage: 3.0V

Internal resistance: ≤2200mΩ

Battery weight: 35g

Product dimension: 51.5*35*9.3mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: electrocardiograph, test and control instrument
