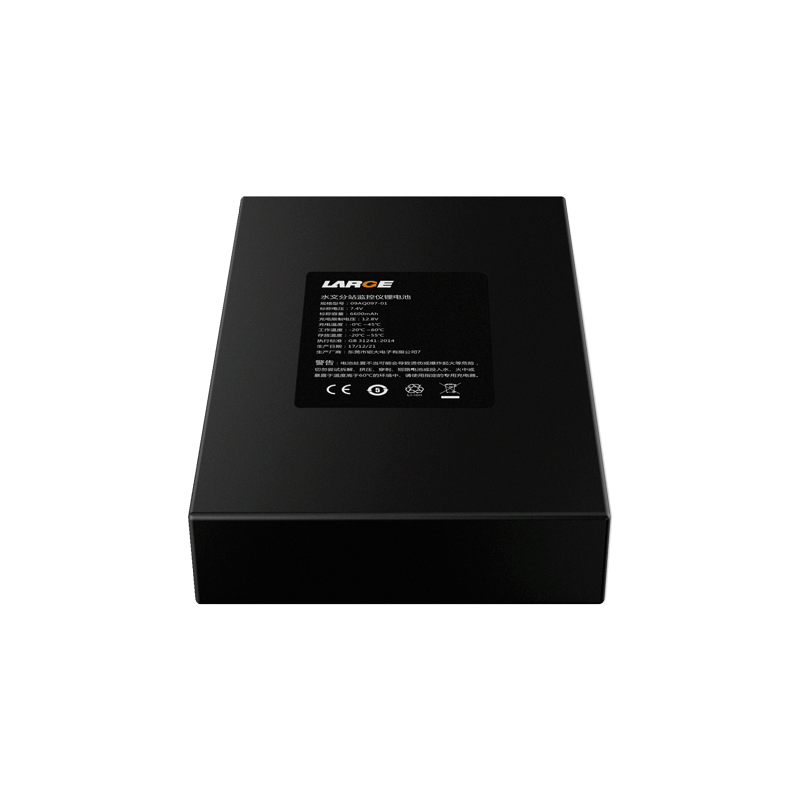

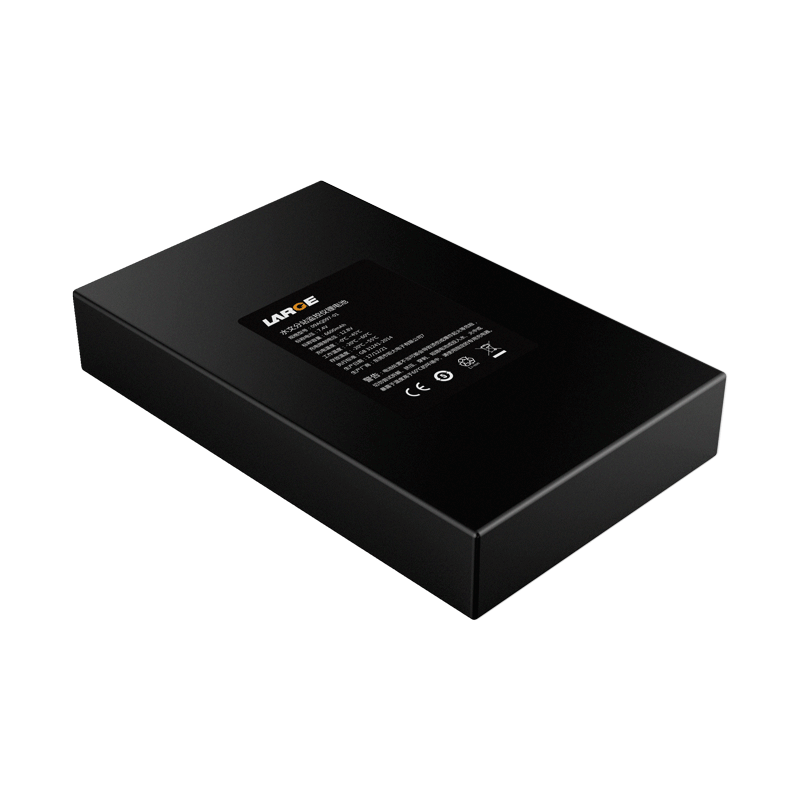

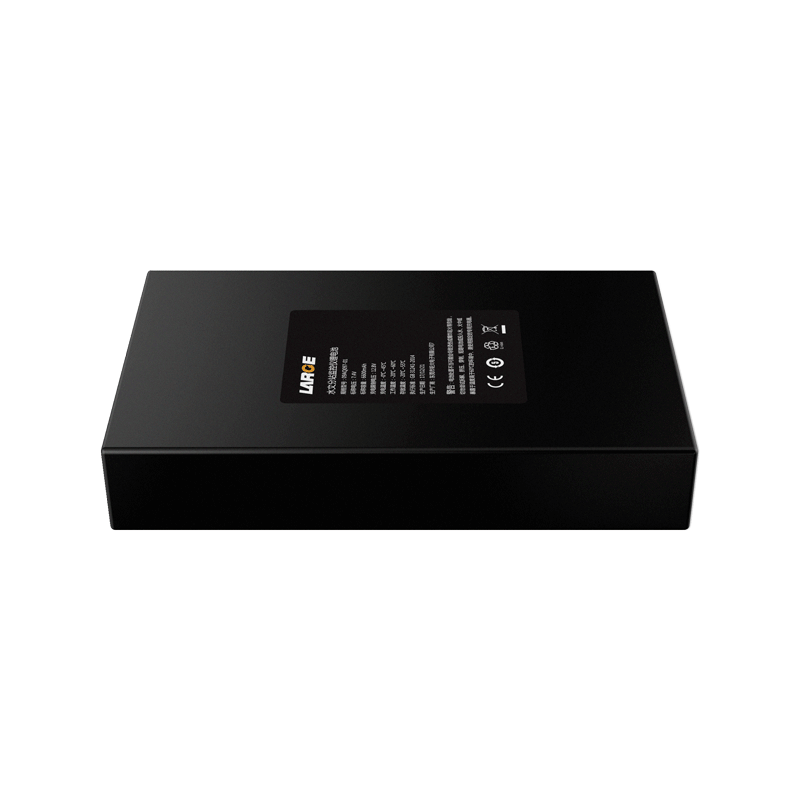

7.4V 6600mAh 18650 Ternary Battery Bak Battery

Project number: 09AQ097-01

Combination mode: ICR18650-2S3P

Nominal voltage: 7.4 V

Working voltage: 4.8~ 8.4V

Nominal capacity: 6600mAh

Standard discharge current: 0.2C

Maximum discharge duration current: 1C

Operating temperature: Charging: 0~45℃

Discharge: - 20 ~ 60 ℃

Product dimension: MAX 19*68*110mm

Finished product internal resistance: 250 mΩ or less

Lead model: National label UL1007/20# line length: 156mm

Protection parameter: overcharge protection voltage/each series is 4.3± 0.025V

Overdischarge protection voltage is 2.4± 0.05V

Overcurrent value: 4~10A
