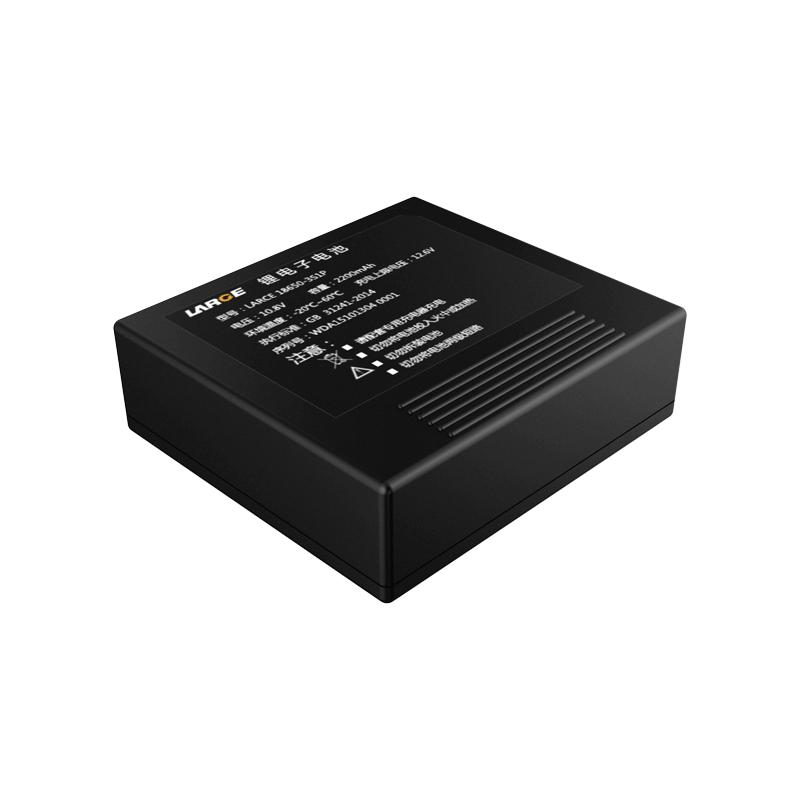

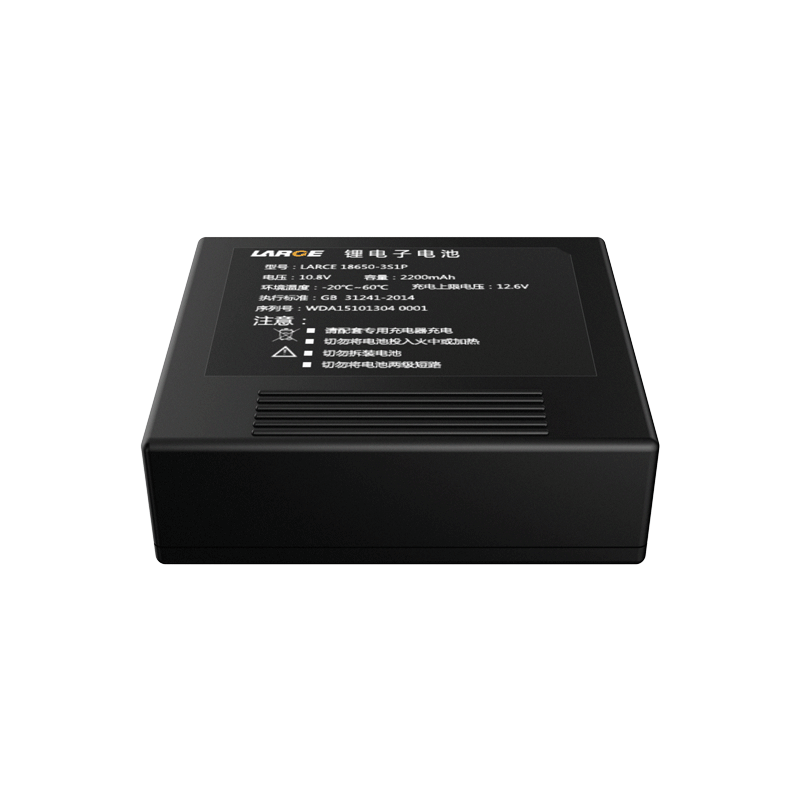

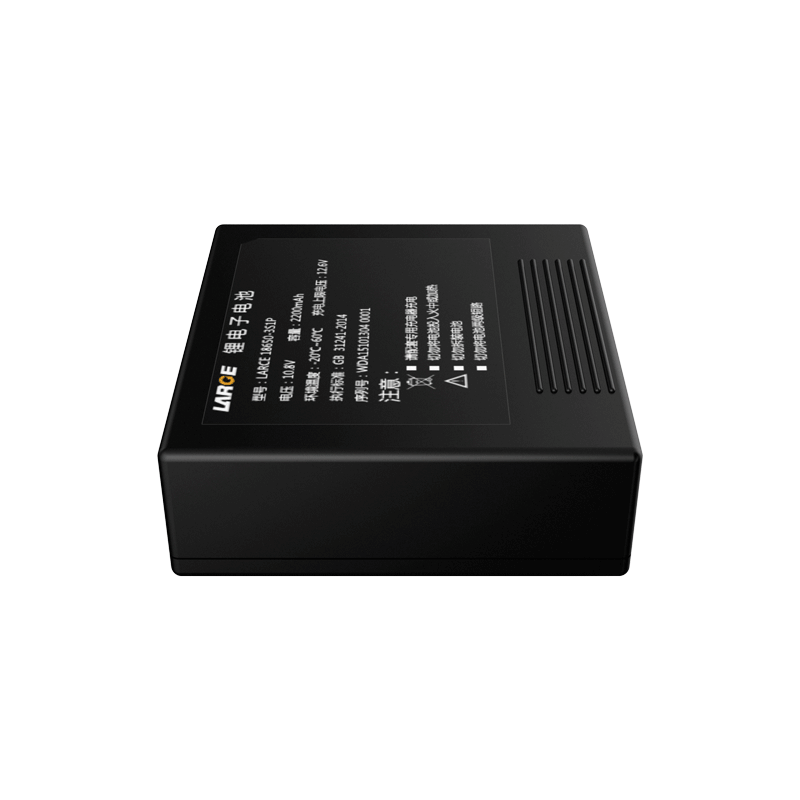

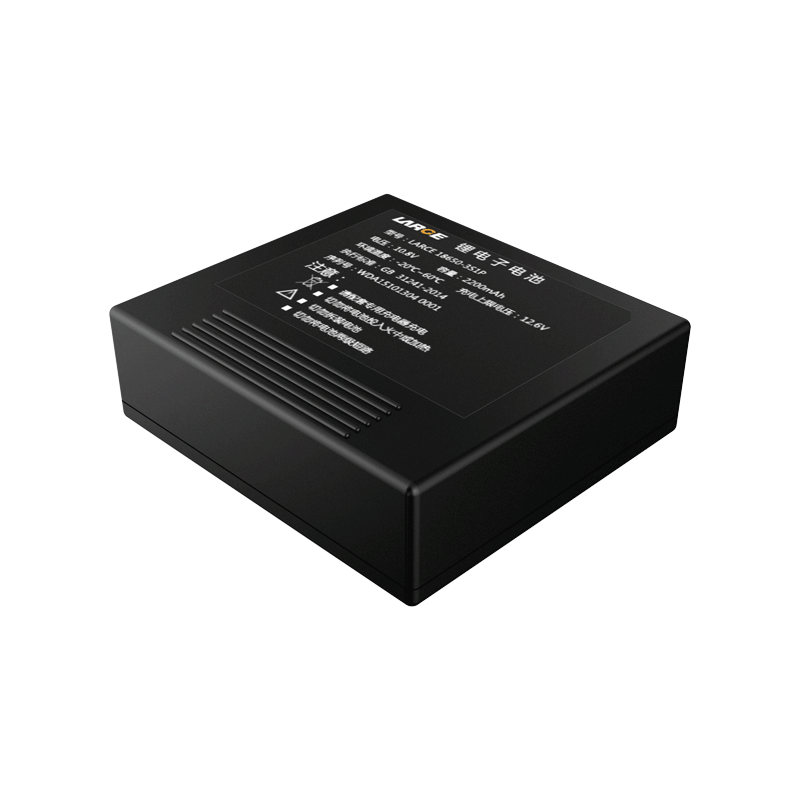

18650 10.8V 2200mAh Lithium Ion Battery for Infusion Pump
Product Number:
08AQ127-08
Nominal voltage:
10.8V
Nominal capacity:
2200mAh
Battery Configuration:
18650-3S1P
Dimension:
(69.59 × 63.61 × 21.5) ±0.2 mm
Application:
infusion pumps
Stable Power Output, Plastic Housing Design, Multi Protection System
Product Overview
This battery is designed for infusion pumps, supporting continuous medical operation and portable healthcare applications. With stable power output and a compact plastic housing, it ensures reliable long-duration performance in critical usage scenarios.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 08AQ127-08 |
| Cell Model | 18650/2200mAh/3.6V |
| Battery Configuration | 18650-3S1P |
| Nominal Voltage | 10.8V |
| Nominal Capacity | 2200mAh |
| Rated Energy | 23.76Wh |
| Charging Voltage | 12.6V |
| Discharge Cut-off Voltage | 9.0V |
| Standard Charging Current | ≤2200mA |
| Standard Discharge Current | ≤2200mA |
| Internal Resistance | ≤250mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage temperature | -20～35℃ |
| Dimensions | (69.59 × 63.61 × 21.5) ±0.2 mm |
| Weight | Approx. 160g |
| Battery Case | Plastic Housing |
| Protection System | Overcharge Protection, Over-discharge Protection, Overcurrent Protection, Short Circuit Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
