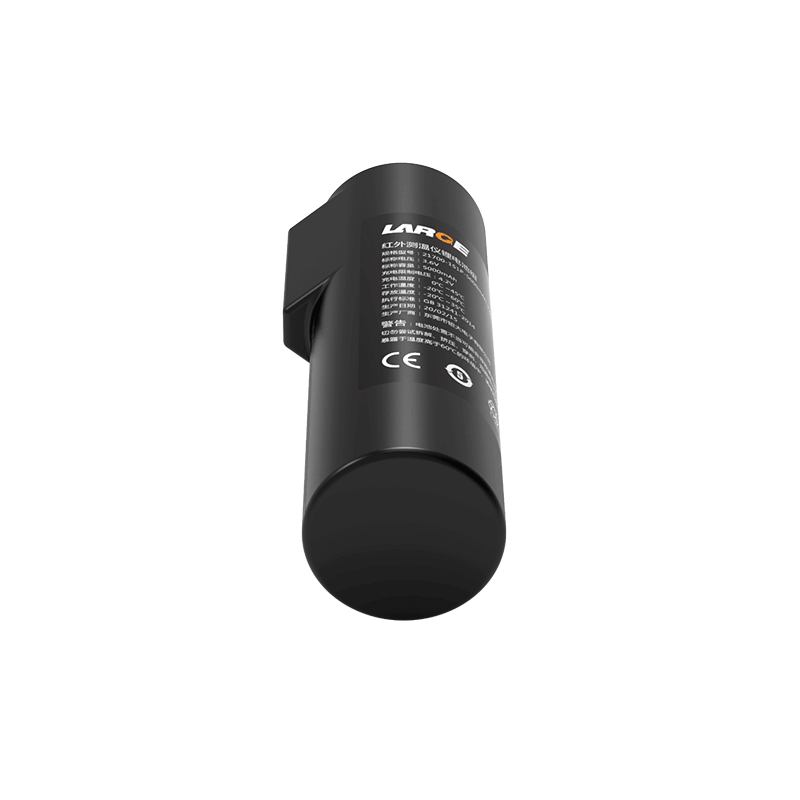

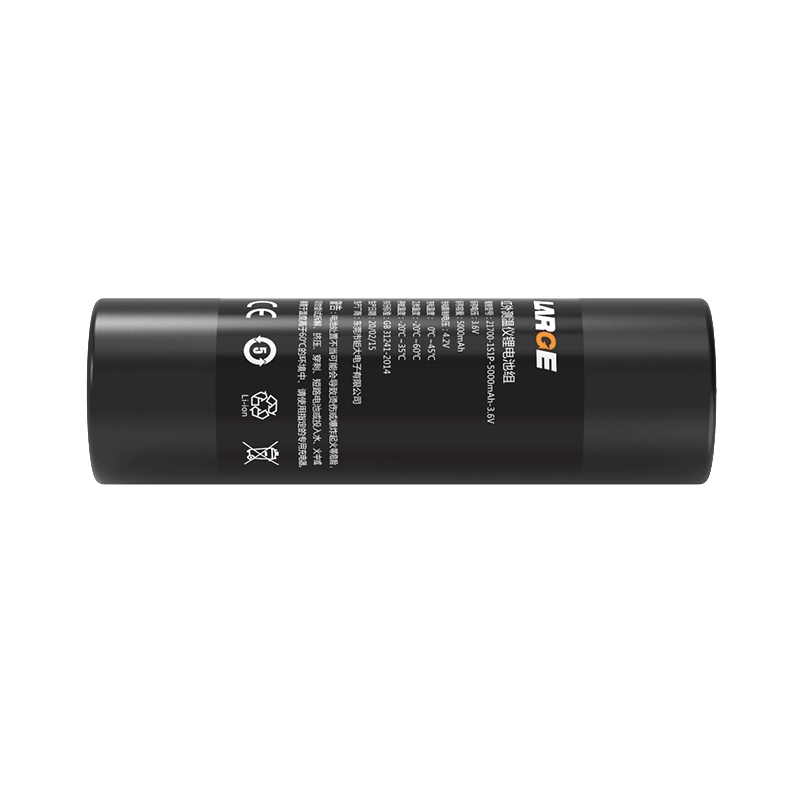

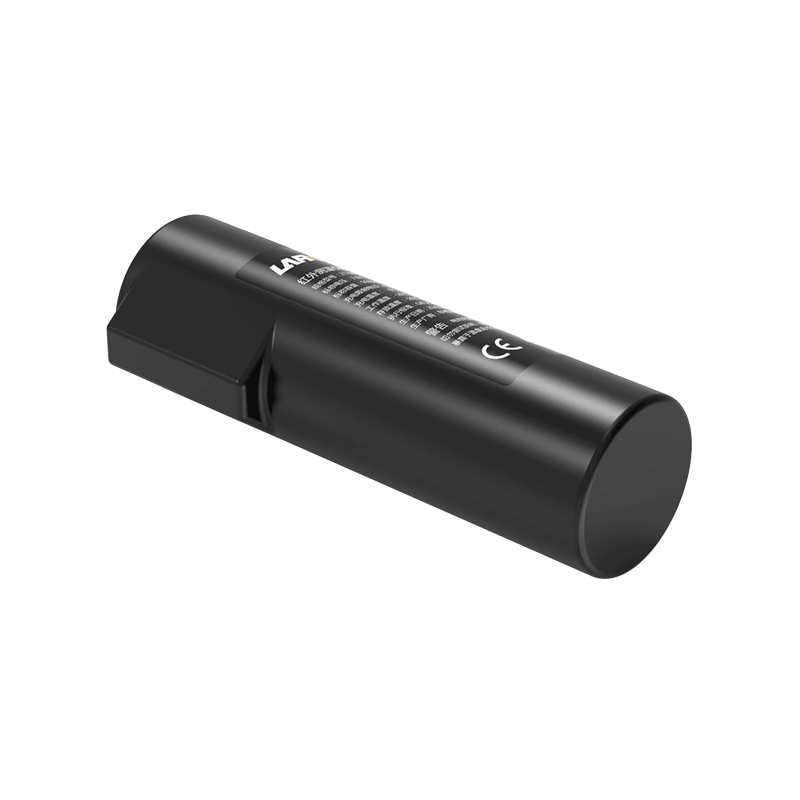

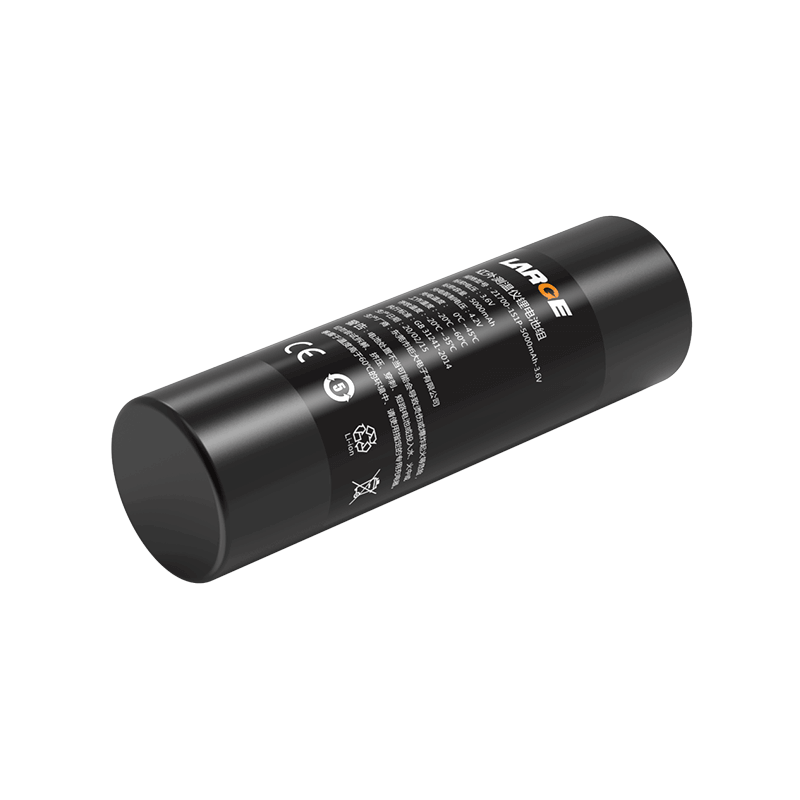

21700 5000mAh 3.6V Lishen Lithium Battery for Infrared Thermoscope

Product number: 01DQ0030-09

Cell model: 21700-5000MAH-3.6V

Battery specifications: 21700-1S1P-5000MAH-3.6V

Product size: 72*φ25.6mm (Max)

Nominal voltage: 3.6V

Nominal capacity: 5000mAh

Charging voltage: 4.2V

Charging current: ≤ 2.5A

Discharge current: ≤ 2.5A

Discharge cut-off voltage: 2.5V

Finished product internal resistance: ≤120mΩ

Battery weight: 75g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: PVC heat shrinkable film package

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: temperature tester, portable thermometer, handheld terminal testing equipment

Product Features

1.Blue PVC heat shrinkable film package is simple, reliable and easy to install.

2.Output terminal: Adopt the national standard JST plug output mode to increase conductive reliability.

3.Battery protection management: Adopt imported seiko protection chip with good stability, high precision monitoring and precise control, to eliminate potential safety hazards to the maximum.

4.The battery pack is safe, has good discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
