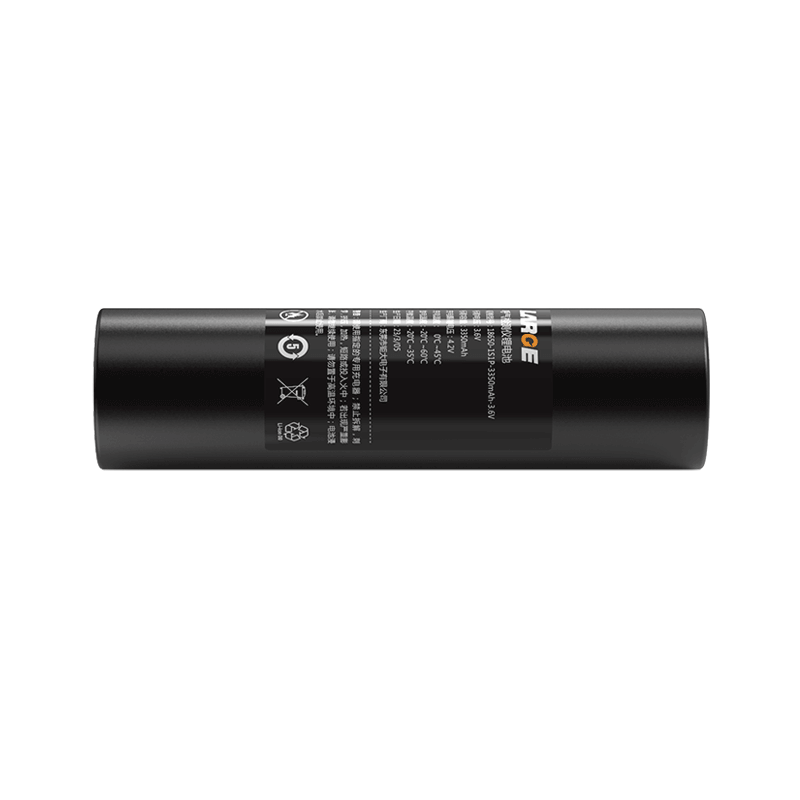

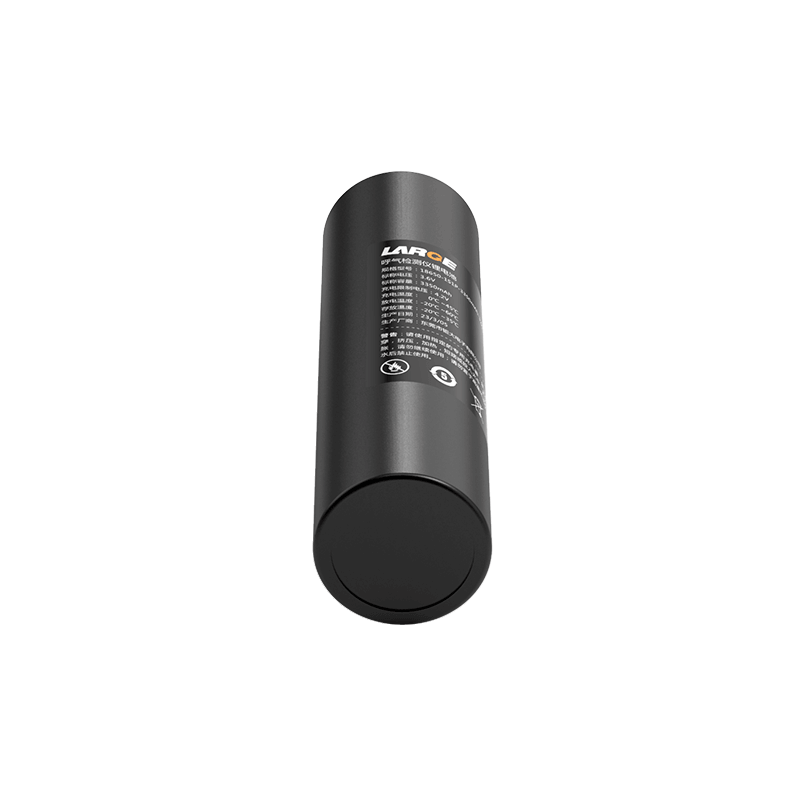

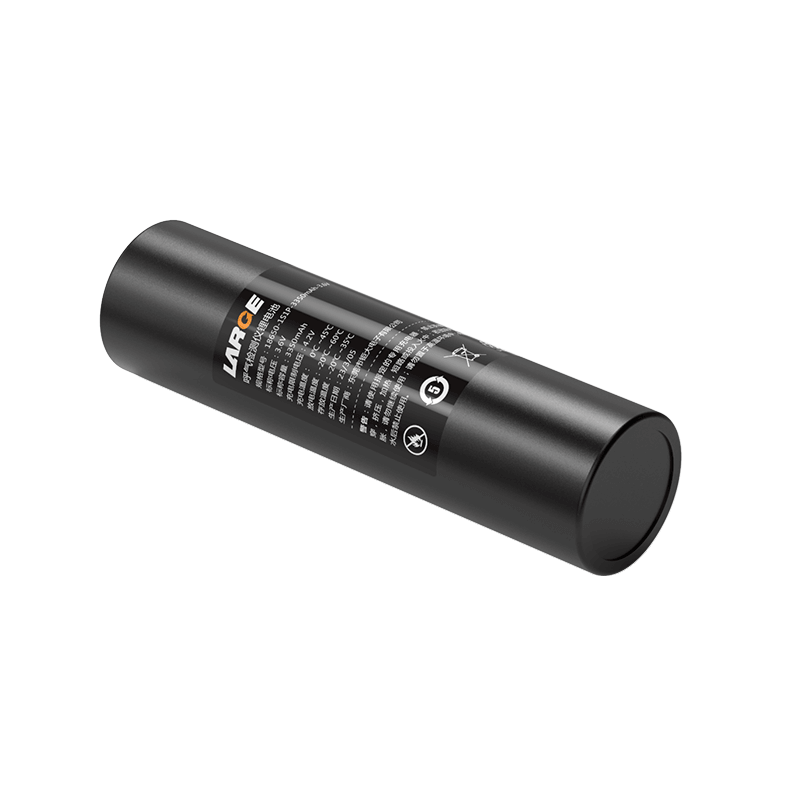

18650 3.6V 3350mAh Breath Detector Lithium-ion Battery

Product number: 03KQ014-02

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-1S1P-3350mAh-3.6V

Product size: 72*φ19.5mm (Max)

Nominal voltage: 3.6V

Nominal capacity: 3350mAh

Finished internal resistance: ≤150mΩ

Charging voltage: 4.2V

Charging current: ≤3.15A

Discharge current: ≤3.15A

Discharge cut-off voltage: 2.5V

Battery weight: 50g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 ~ 35 ℃

Battery package: Blue PVC heat shrink film

Output mode: MOLEX plug

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Applications: portable breath detector, medical equipment
