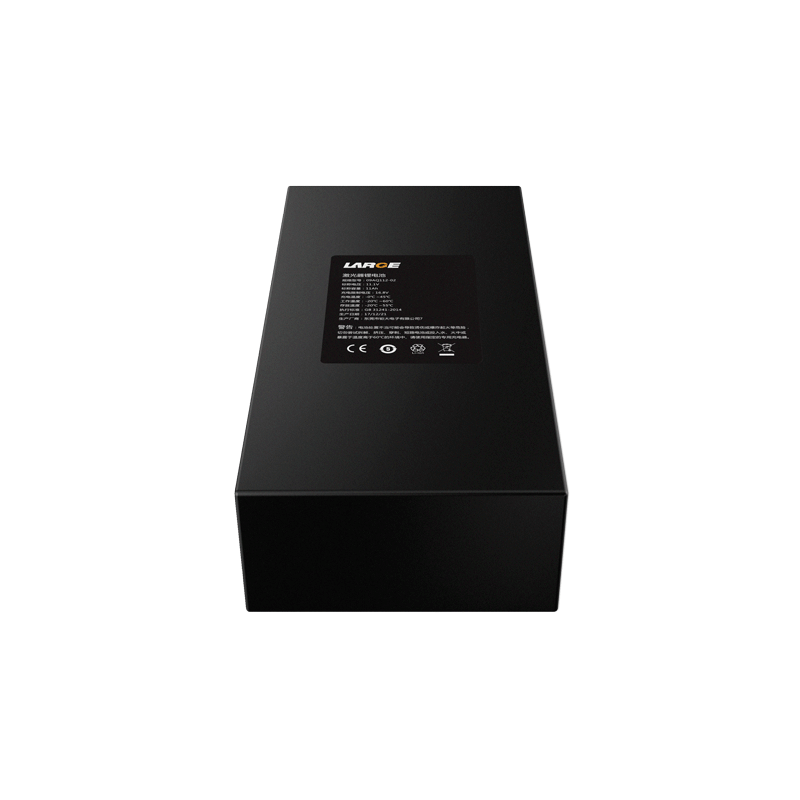

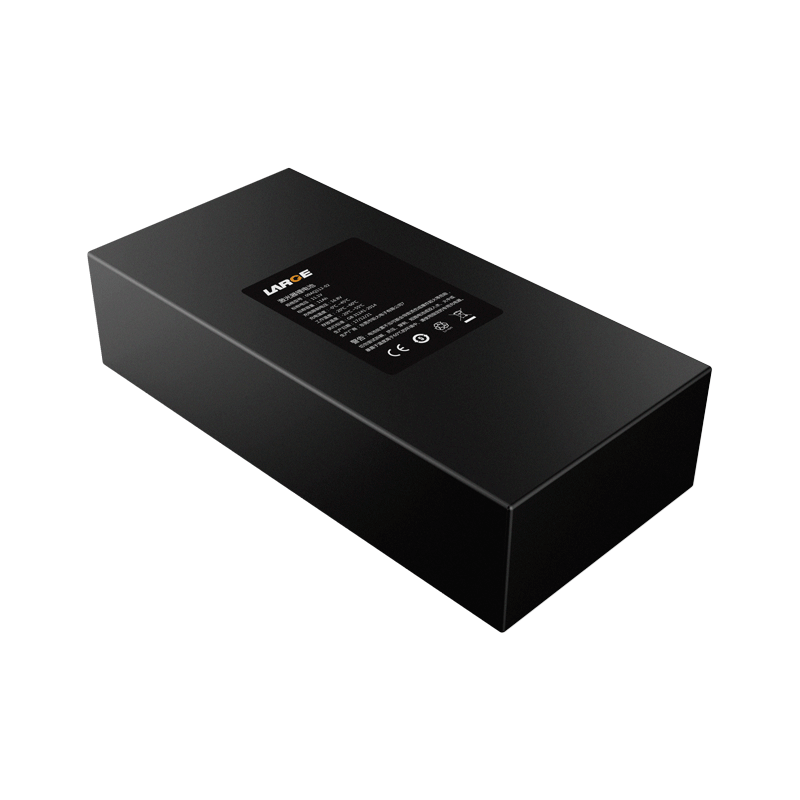

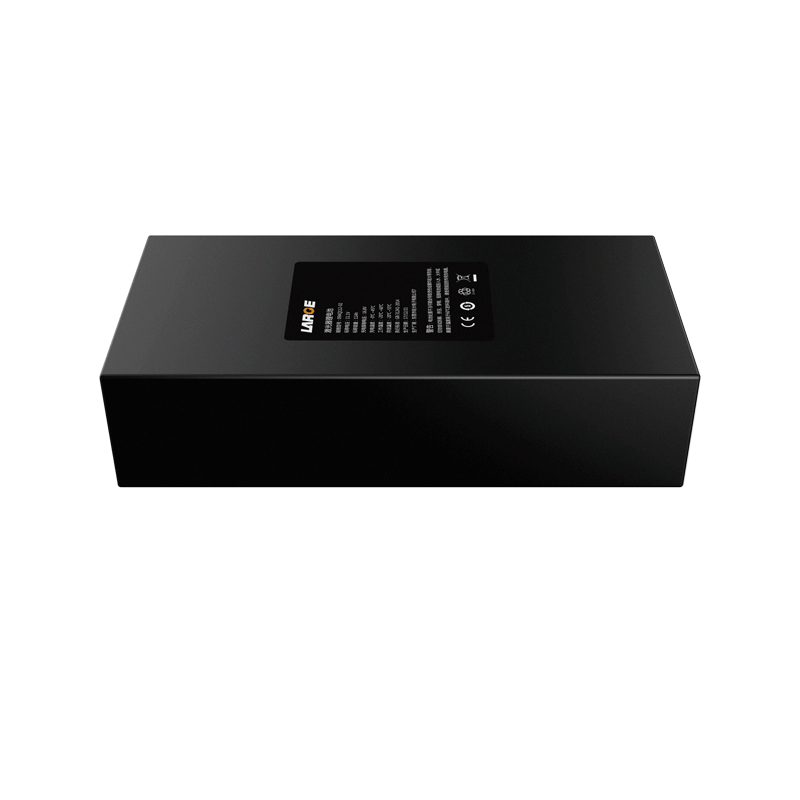

11.1V 11Ah 18650 Bak Battery Ternary Battery

Product Detail

Project number : 09AQ112-02

Combination mode: ICR18650-3S5P

Nominal voltage: 11.1V

Operating voltage: 7.5~12.6V

Nominal capacity: 11Ah

Standard discharge current: 0.2C

Maximum discharge current: 0.5C

Operating temperature: Charging: 0~45℃

Discharge: - 20 ~ 60 ℃

Size: MAX 36*72*148mm

Finished product internal resistance: 300 mΩ or less

Lead model: 5.5DC base UL2468/22#, line length: 150mm

Protection parameters: overcharge protection voltage / 4.2±0.025V per series

Overdischarge protection voltage 2.5±0.08V

Overcurrent value: 8~12A

*
*
*
