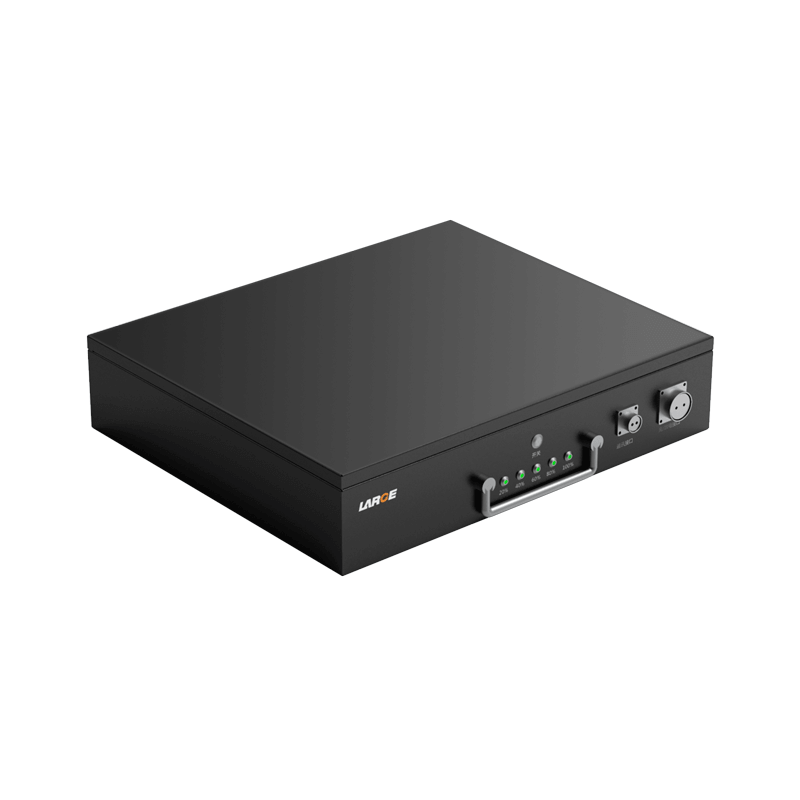

26650 48V 35.2Ah LiFePO4 Battery for Elevator

26650 48V 35.2Ah LiFePO4 Battery for Elevator
26650 48V 35.2Ah LiFePO4 Battery for Elevator
26650 48V 35.2Ah LiFePO4 Battery for Elevator
26650 48V 35.2Ah LiFePO4 Battery for Elevator

Product Detail

Product number: 01DQ0140-01

Cell model: 26650-15S11P-35.2 AH-48V

Specification: IRF26650/3300mah /3.2V

Product size: 460± 1.5mm *390±1 mm *100±1mm

Nominal voltage: 48V

Nominal capacity: 36.3Ah

Charging voltage: 54.75V

Charging current: Max. 10A

Discharge current: Max. 25A

Discharge cut-off voltage: 30V

Finished product internal resistance: ≤150mΩ

Battery weight: 22Kg

Charging temperature: -10~+55℃

Discharge temperature: -25~+55℃

Storage temperature: -20°C to 45°C (less than 1 month) -20°C to 35°C (less than 3 months); -20℃~ 25°C (less than 12 months)

Battery package: black metal case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: lift


Product Features

1.Black metal shell package is simple, reliable and is easy for installation.

2.MODBUS RTU communication with a baud rate of 19200

3.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

4.Battery protection management: Adopt imported well-known protection chips with good stability, high precision monitoring and accurate control, to eliminate safety risks to the maximum.

5.The battery pack has good safety, nice discharge performance and long cycle life.

6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.

*
*
*
