Custom Lithium Ion Battery Pack

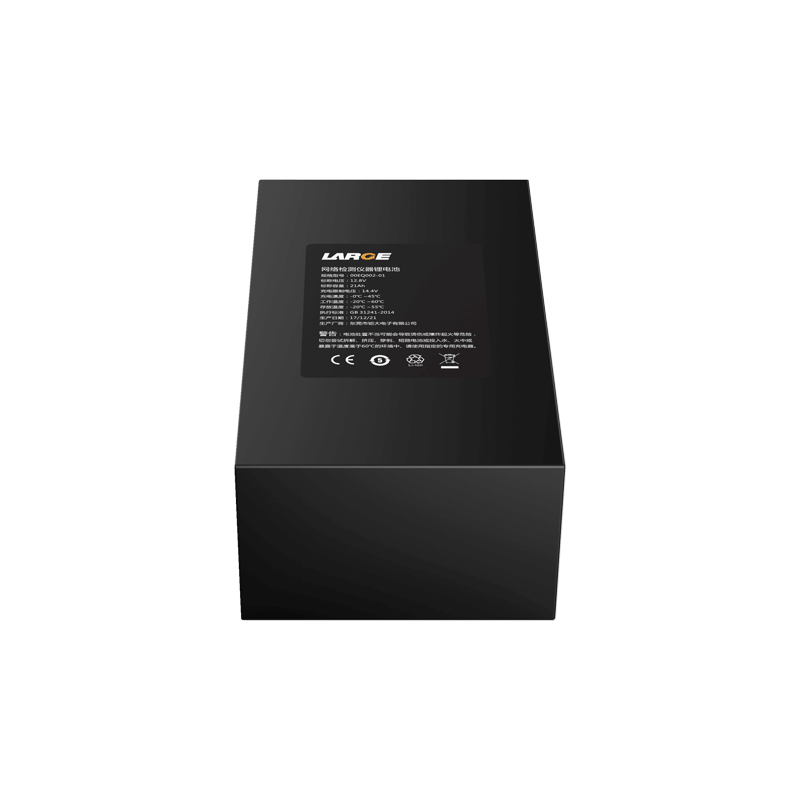

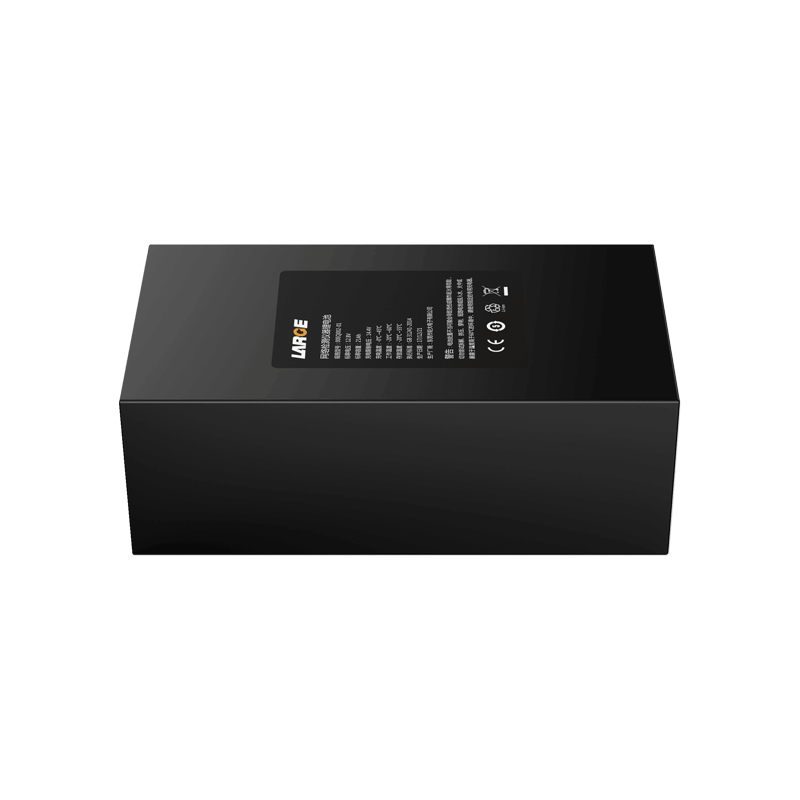

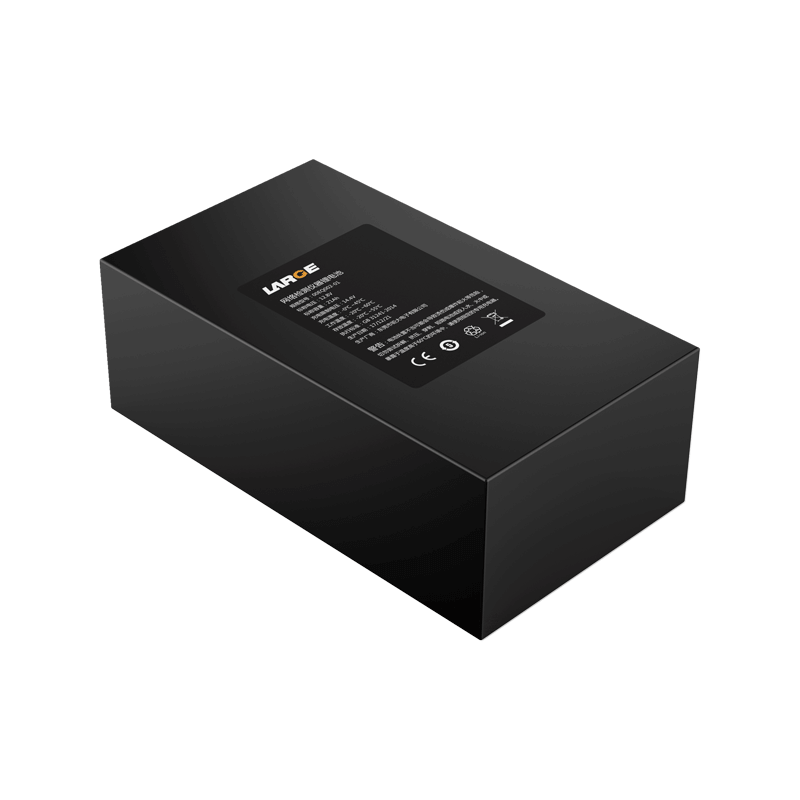

26650 12.8V 21Ah Lifepo4 Battery of Network Monitoring Instrument

  • Model number:00BQ002-01

  • Nominal voltage:12.8V

  • Nominal capacity:21000mAh

  • Battery cell:26650/3.2V/3.0Ah

  • Dimension:202*114*70mm(Max)

  • Application:network testing instrument, testing equipment

Product Detail

Product number: 00BQ002-01

Cell model:26650/3.2V/3.0Ah

Battery specification: 26650-4S7P/12.8V/21Ah

Nominal voltage:12.8V

Nominal capacity:21Ah

Charging voltage: 14.4V

Charging current: ≤5A

Discharging current: 5A

Instant discharging current: 10A

End-off voltage: 10.0V

Internal resistance: ≤120mΩ

Battery weight: 2.8Kg

Product dimension: 202*114*70mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: blue PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: network testing instrument, testing equipment

*
*
*
