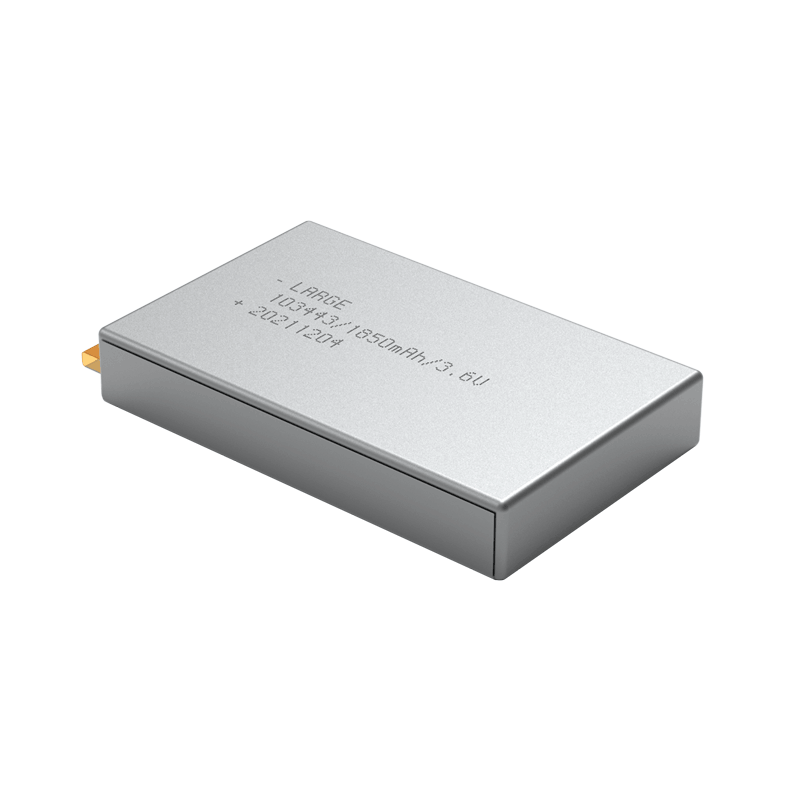

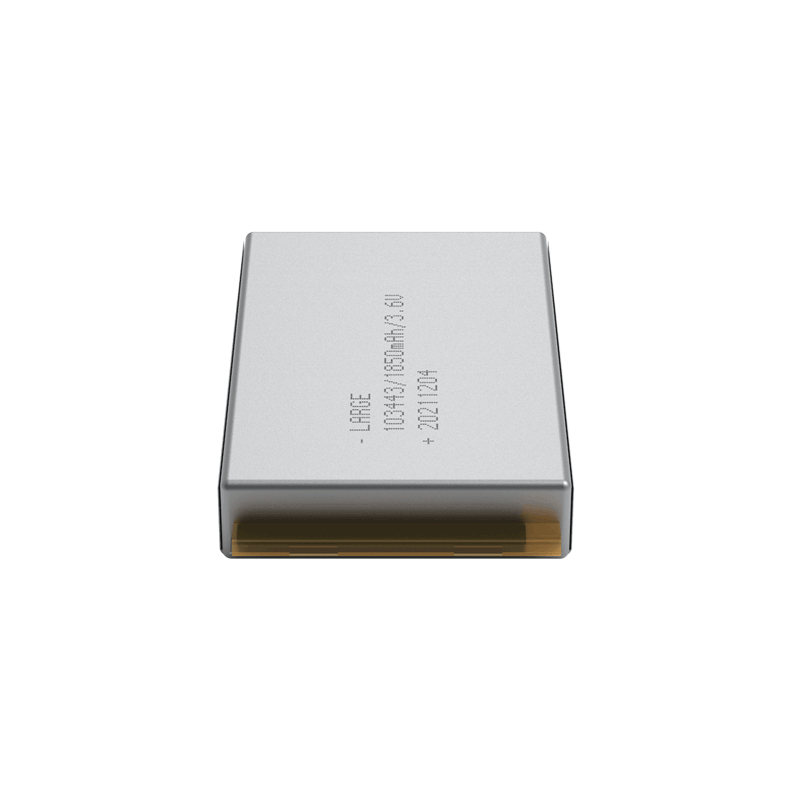

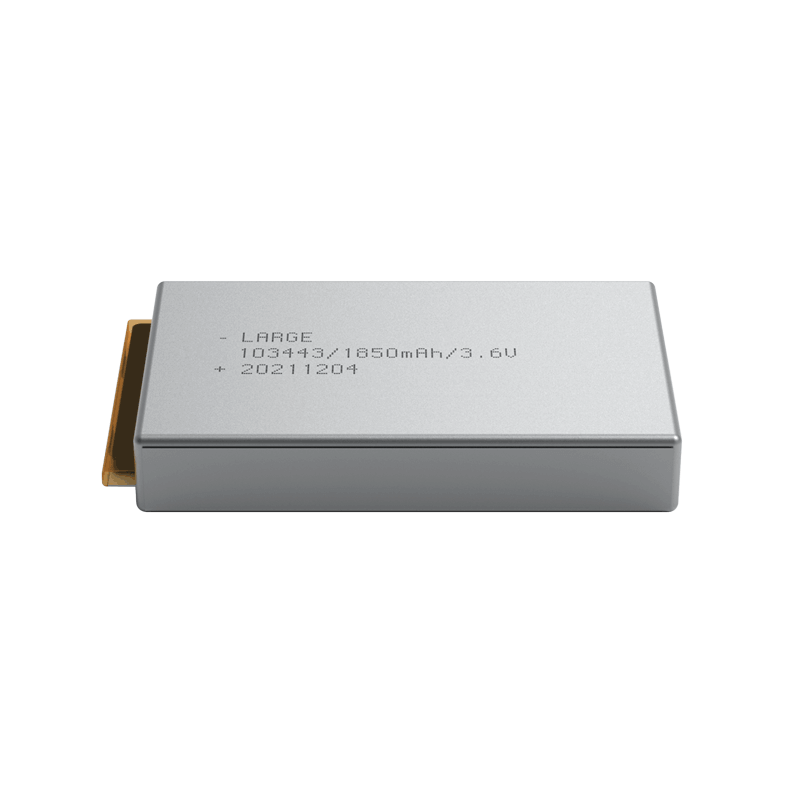

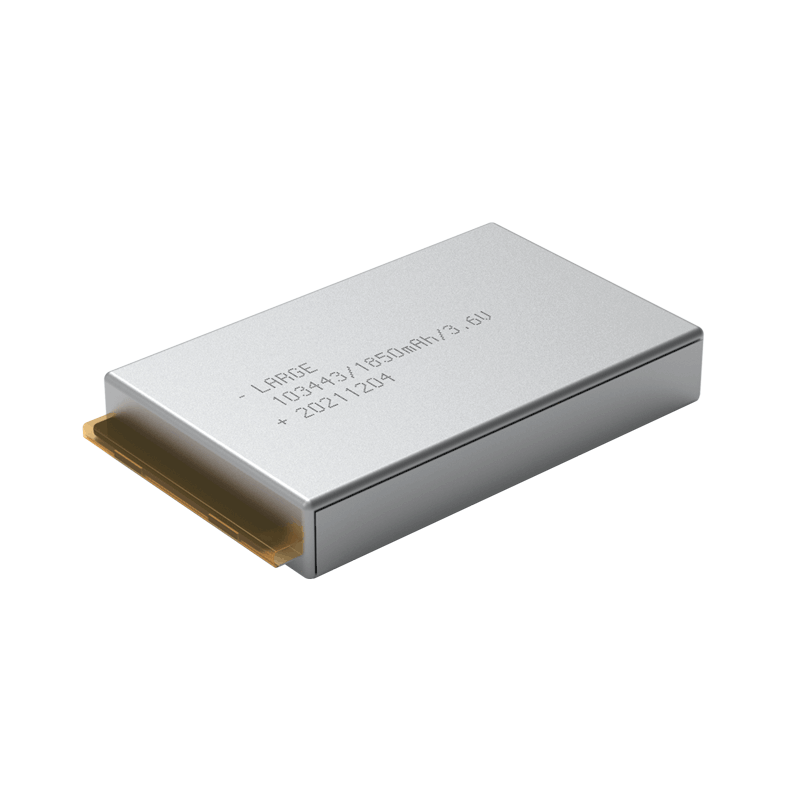

3.6V 1850mAh Lithium-ion Battery for Handheld Vibration-detecting Device

Project number: 08DQ0051-01

Cell model: 103443/2010mAh/3.6V

Specification: 103443/1850mAh/3.6V

Nominal voltage: 3.6V

Nominal capacity: 1900mAh

Charging current: ≤900mA

Discharge current: 1.0A

Instantaneous discharge current: 1.5A

Discharge cut-off voltage: 2.8V

Product internal resistance: ≤180mΩ

Battery weight: 35G

Product size: 12*35.0*50mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 50℃

Storage temperature: -20 to 25°C

Battery case: /

Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Handheld vibration detector
