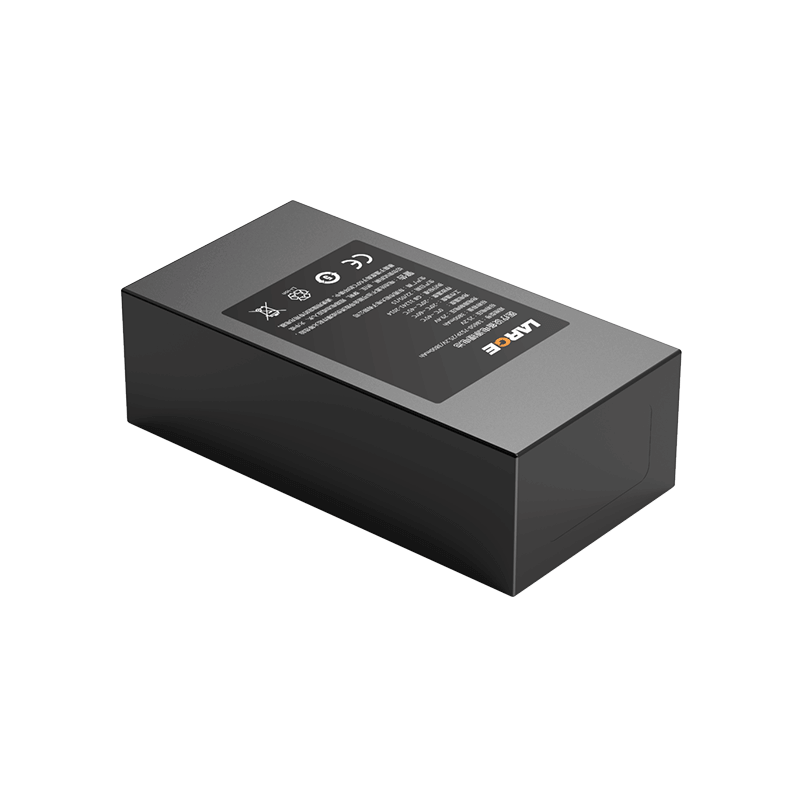

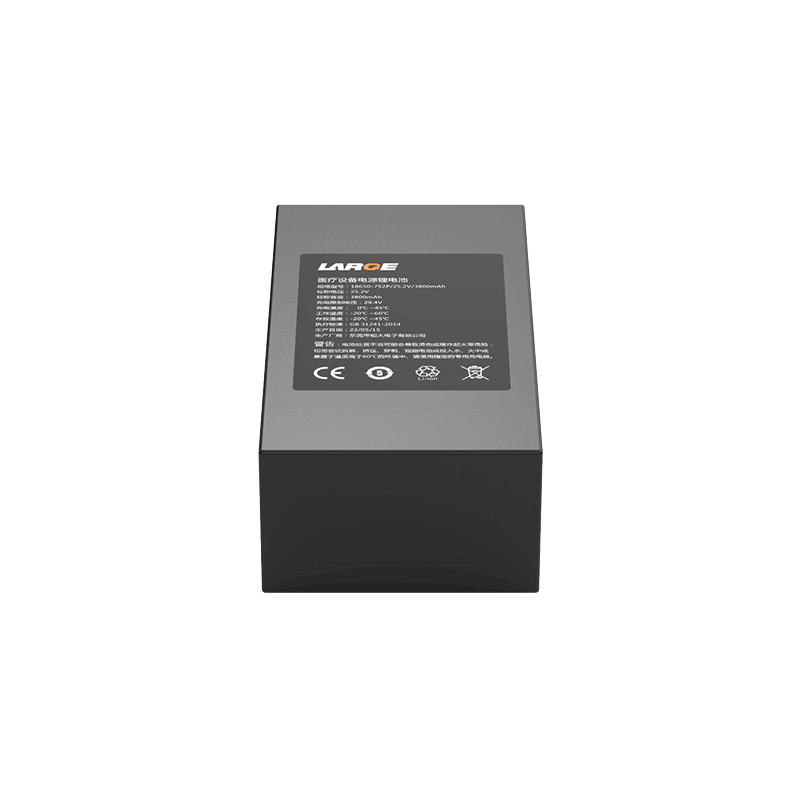

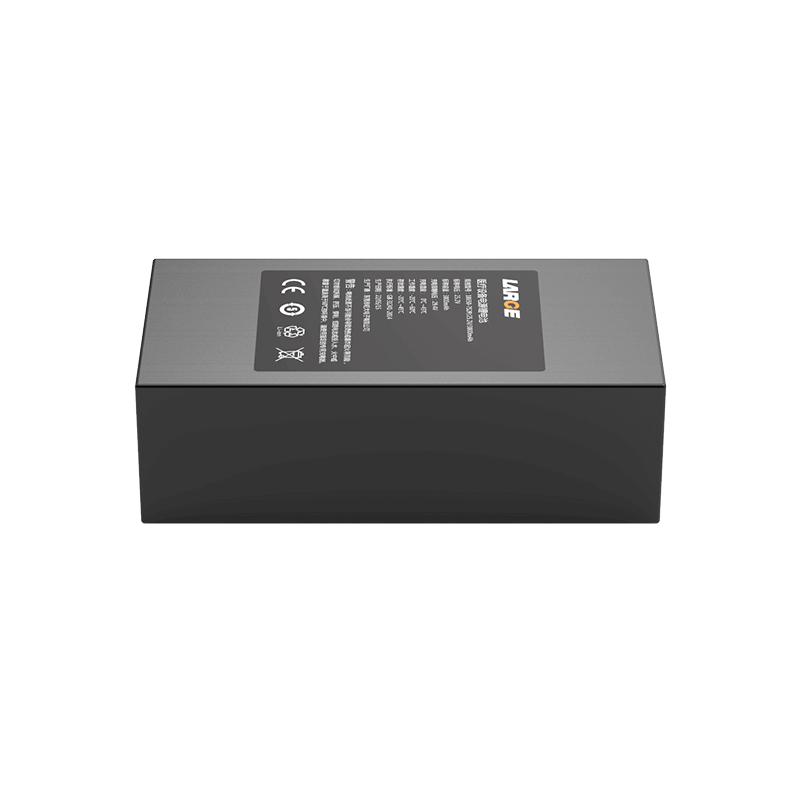

18650 25.2V 3800mAh Lithium-ion Battery for Medical Device

Product number: 33DZ042-01

Cell model: 18650/3.6V/2000mAh

Battery specification: 18650-7S2P/25.2V/3800mAh

Nominal voltage: 25.2V

Rated capacity: 3800mAh

Charging voltage: 29.4V

Charging current: ≤4A

Discharge current: ≤3.0A

Instant discharge current: 20-40A

Discharge cut-off voltage: 18V

Finished internal resistance: ≤200mΩ

Battery weight: 750g

Product dimension: 45*75*145 mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 45 ° C

Temperature protection: 70℃±5℃

Battery encapsulation: PVC

Lithium battery protection: short circuit protection, over-charge protection, over-discharge protection, over-current protection, temperature protection, anti-reverse connection protection, etc.

Application: Medical equipment
