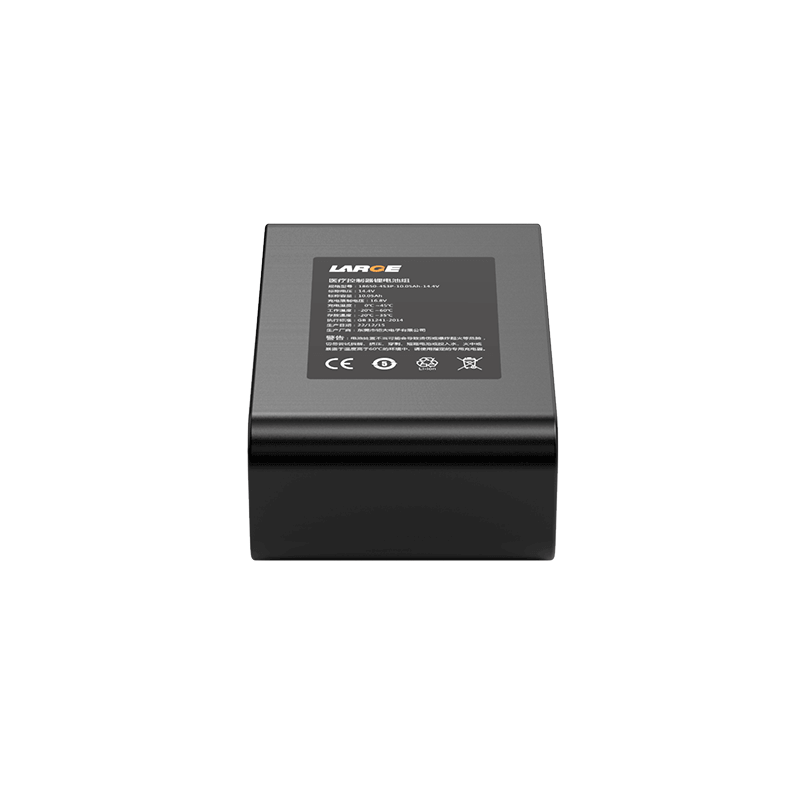

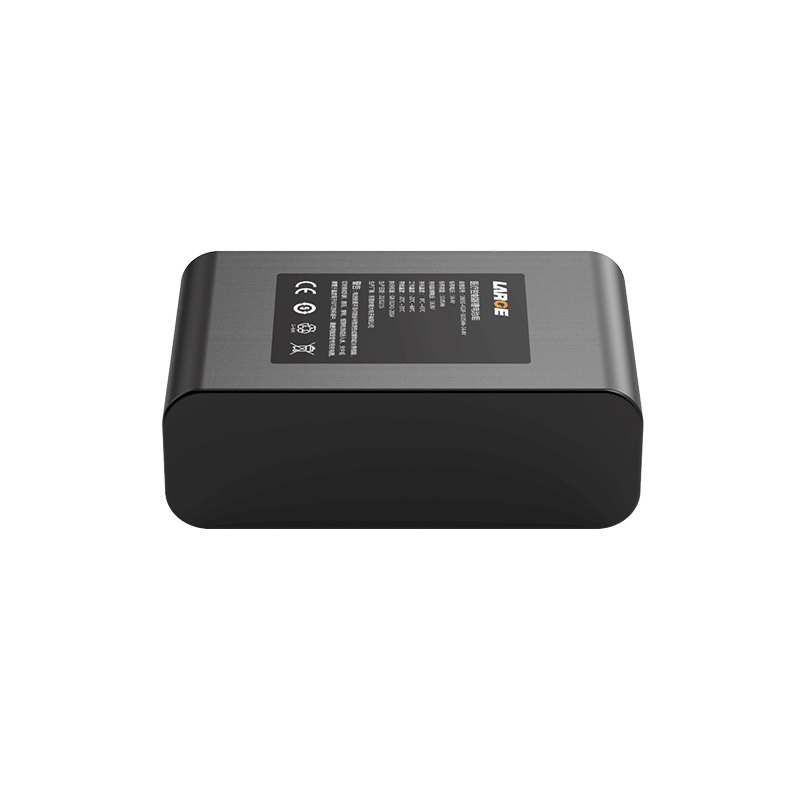

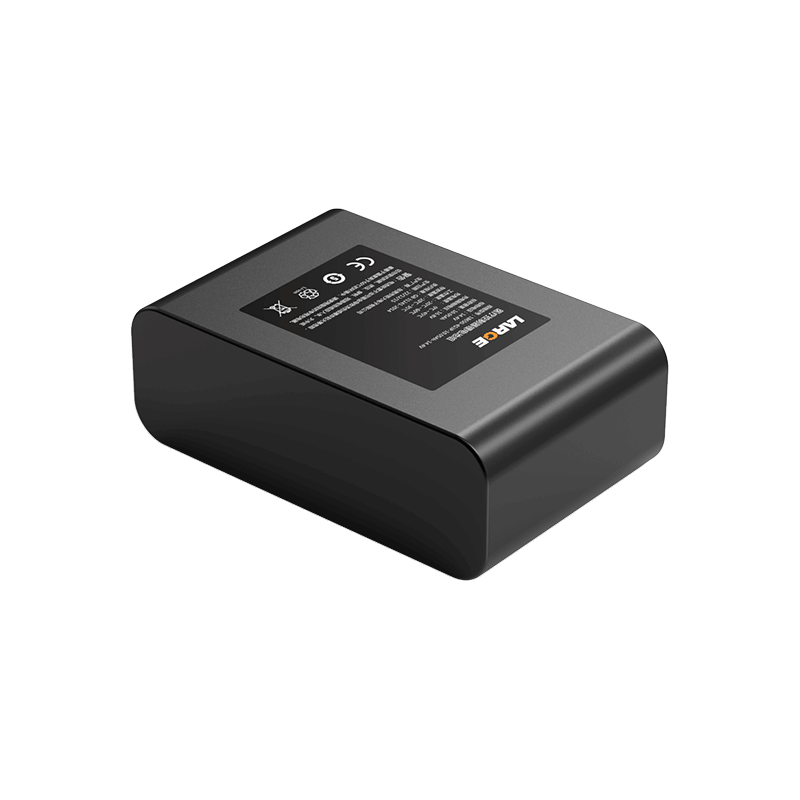

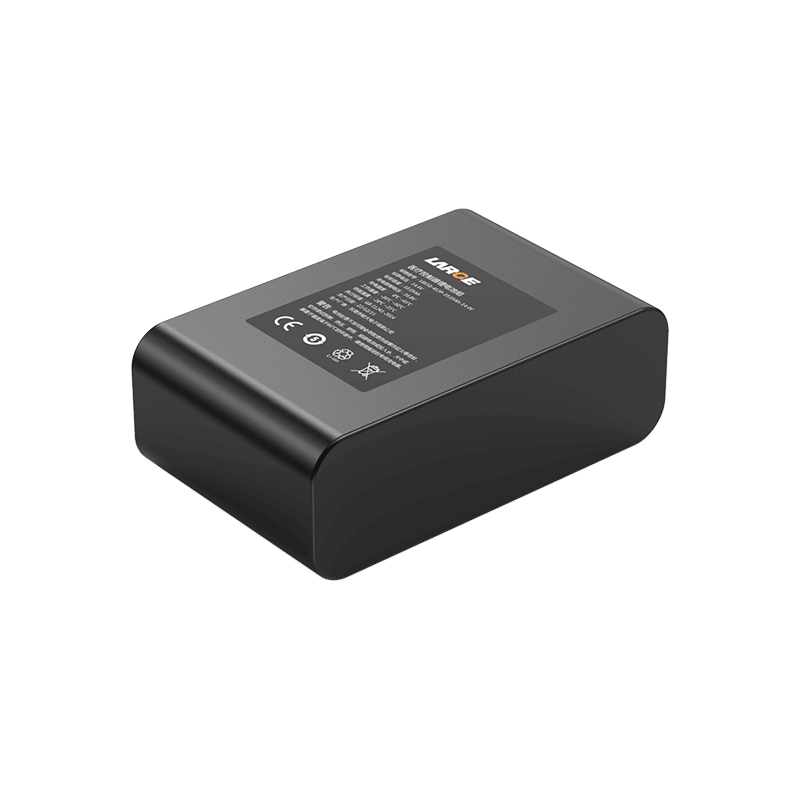

18650 14.4V 10.05Ah Lithium-ion Battery Pack for Medical Controller

Product number: 06DQ054-05T

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-4S3P-10.05Ah-14.4V

Nominal voltage: 14.4V

Nominal capacity: 10.05Ah

Charging voltage: 16.8V

Charging current: ≤3.0A

Discharge current: ≤6.0A

Discharge cut-off voltage: 10.8V

Internal resistance of finished product: ≤350mΩ

Battery weight: 410g

Product size: 114*72*38.5mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: PVC packaging

Output mode: MOLEX plug

Communication protocol: SMBus

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, etc.

Application: Medical controller, portable medical equipment
