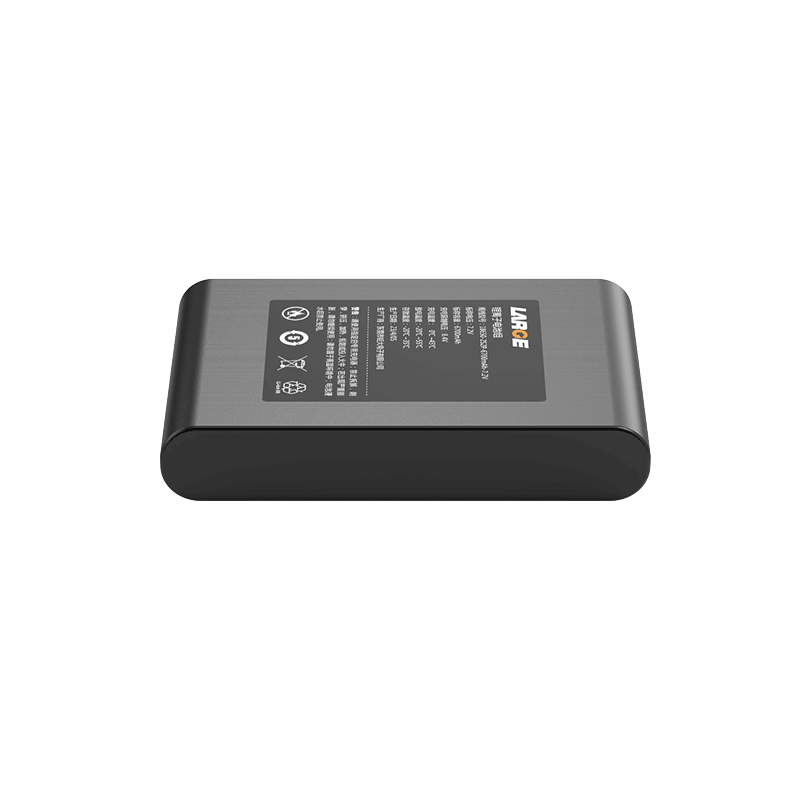

18650 10.8V 6.7Ah Intelligent Lithium-ion Battery for Medical Equipment

Product number: 33DZ015-01A

Cell model: 18650/3.6V/3.35Ah

Battery specification: 18650-3S2P/10.8V/6.7Ah

Nominal voltage: 10.8V

Nominal capacity: 6.8Ah

Charging voltage: 12.6V

Charging current: ≤3.1A

Discharge current: 3.1A

Instantaneous discharge current: 10A

Discharge cut-off voltage: 7.5V

Finished internal resistance: ≤150mΩ

Battery weight: 300g

Product size: 113*72*20mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 45℃

Temperature protection: 75℃±5℃

Battery case: PVC

Communication protocol: SMBUS

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, etc.

Application: Medical battery
