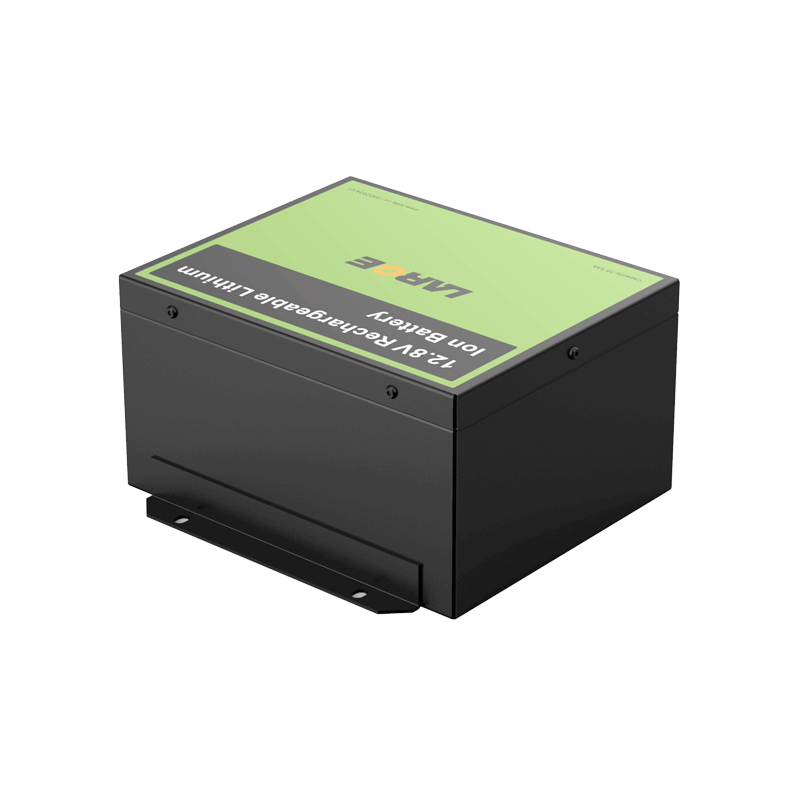

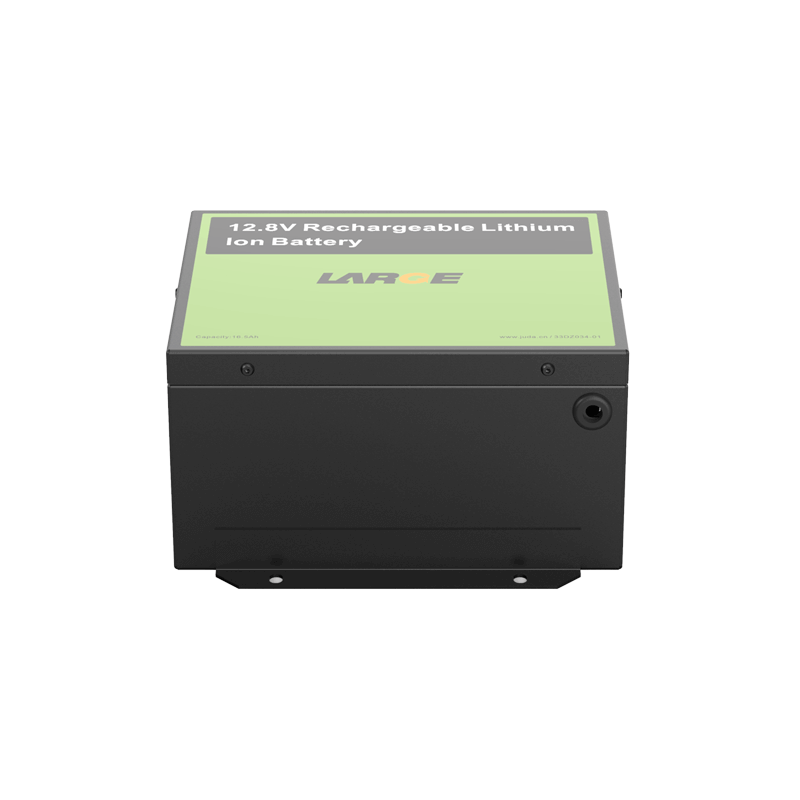

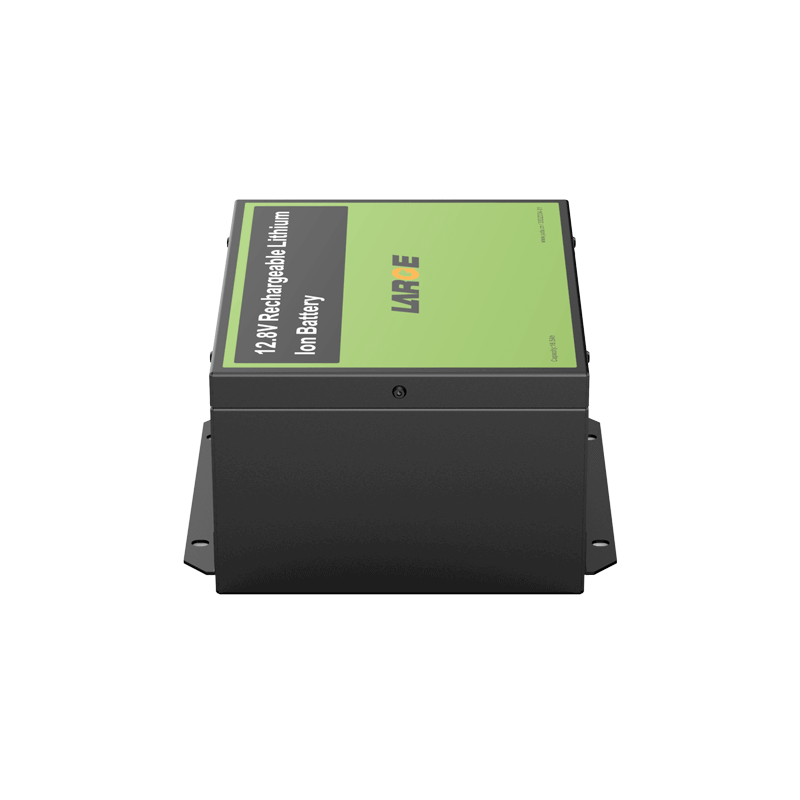

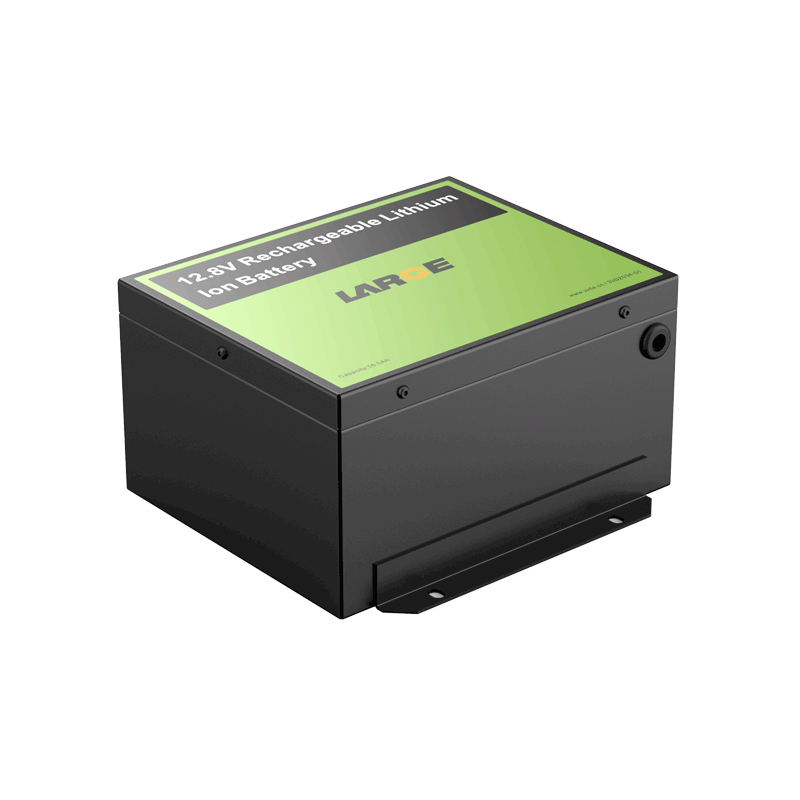

26650 12.8V/16.5AH LiFePO4 Battery for Portable Device

26650 12.8V/16.5AH LiFePO4 Battery for Portable Device
26650 12.8V/16.5AH LiFePO4 Battery for Portable Device
26650 12.8V/16.5AH LiFePO4 Battery for Portable Device
26650 12.8V/16.5AH LiFePO4 Battery for Portable Device

Product Detail

Project number: 33DZ034-01

Cell model: 26650 3.2V/ 3.3AH

Battery specification: 4S5P/12.8V/ 16.5AH (low temperature)

Nominal voltage: 12.8V

Nominal capacity: 16.5Ah

Charging voltage: 14.6V

Charging current: ≤8.25A

Discharge current: 17.25A

Instantaneous discharge current: greater than 35A

Discharge cut-off voltage: 8V

Product internal resistance: ≤200mΩ

Battery weight: 200G

Product dimension: 100*150*185mm

Charging temperature: -20 ~ 45℃

Discharge temperature: -40 ~ 60 ℃

Storage temperature: -40 ° C to 45 ° C

Temperature protection: 75℃±5℃

Battery package: metal plate

Communication: no

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, etc.

Application: Backup power supply for portable devices


Product features

1.Lithium iron phosphate low temperature charge and discharge battery

2.Temperature protection,

3.Large current discharge

4.The battery pack is safe and has long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.

*
*
*
