Custom Lithium Ion Battery Pack

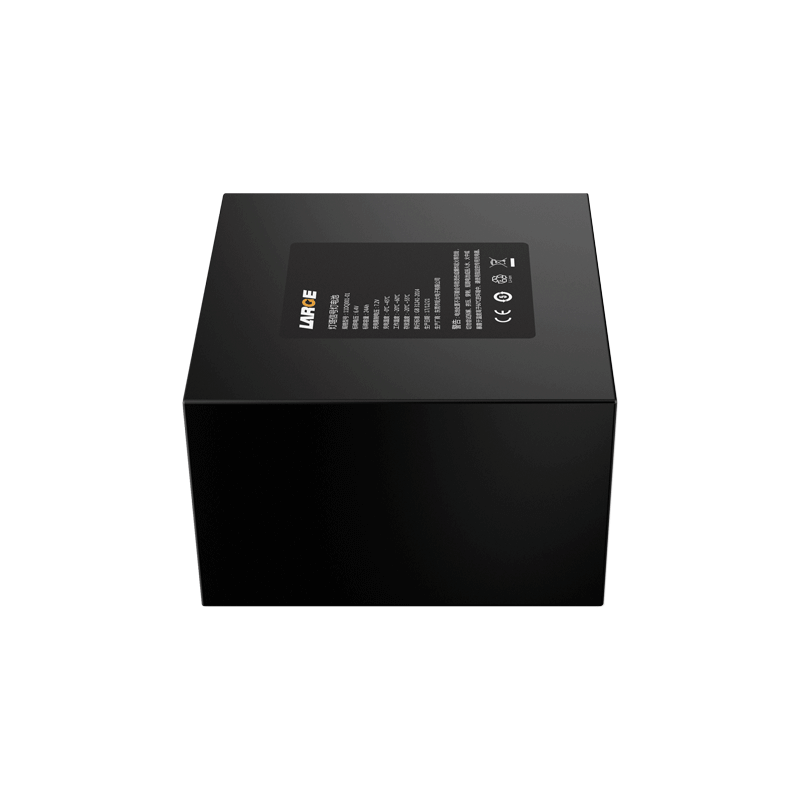

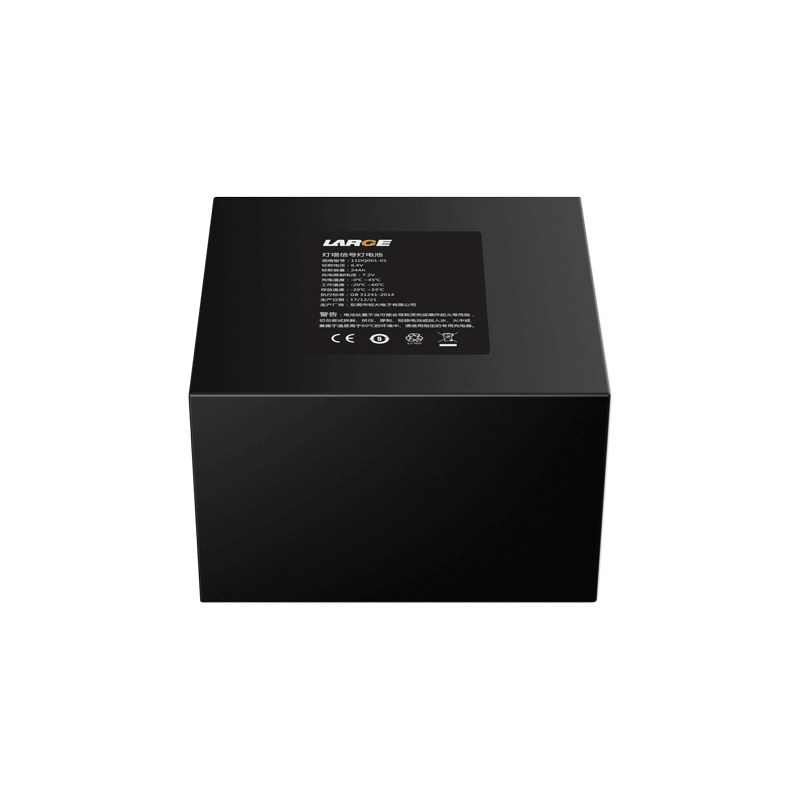

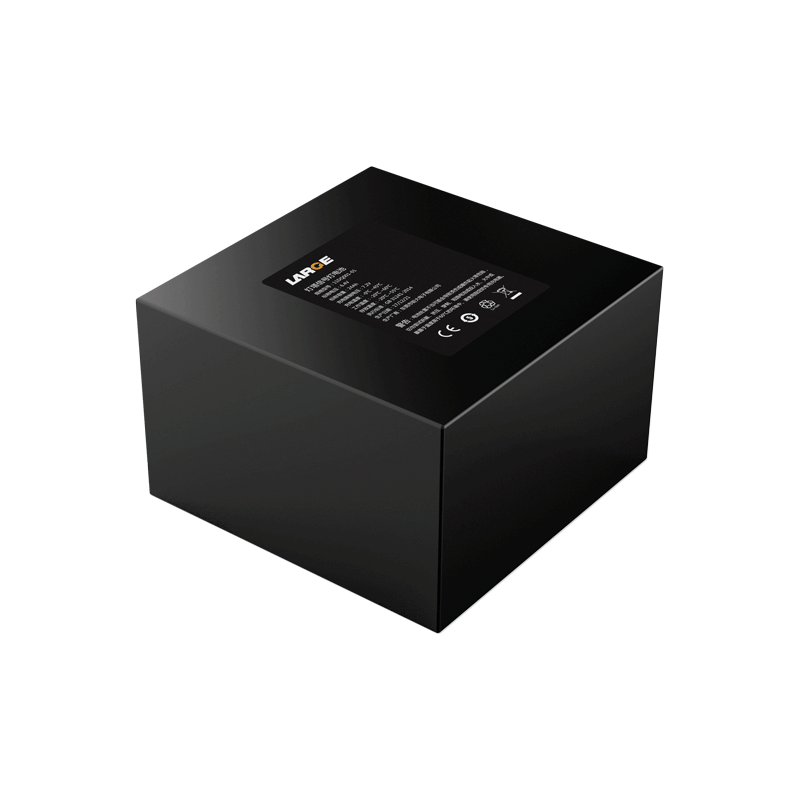

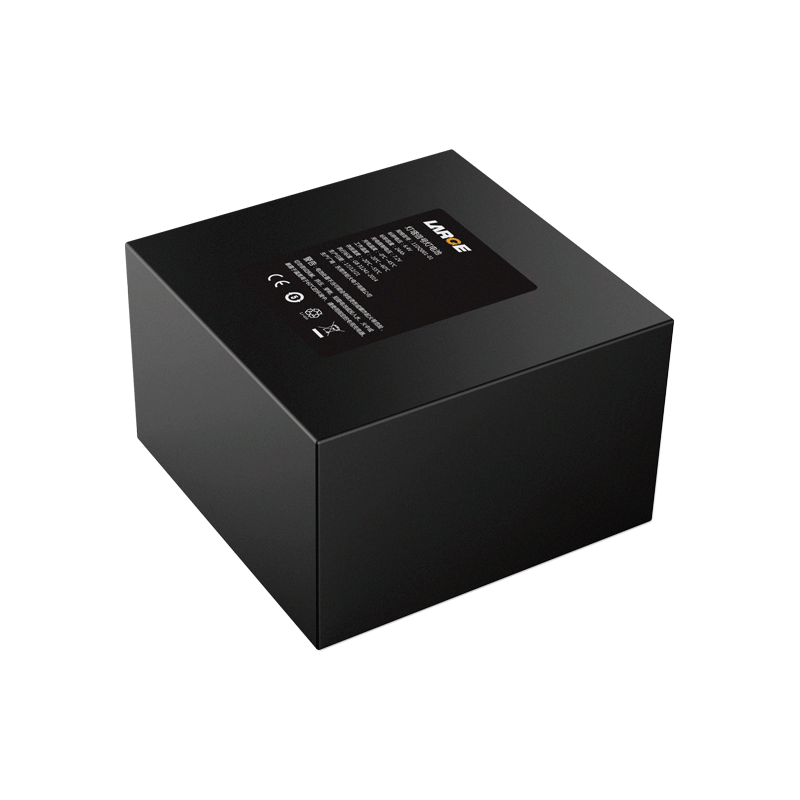

26650 6.4V 24Ah Lifepo4 Battery for Signal Lamp of Lighthouse

  • Model number:11DQ001-01

  • Nominal voltage:6.4V

  • Nominal capacity:24000mAh

  • Battery cell:26650/3.2V/3000mAh

  • Dimension:120*120*75mm(Max)

  • Application:signal light of beacon, testing equipment

Product Detail

Product number: 11DQ001-01

Cell model:26650/3.2V/3000mAh

Battery specification: 26650/2S8P/6.4V/24Ah

Nominal voltage:6.4V

Nominal capacity:24Ah

Charging voltage: 7.2V

Charging current: ≤3A

Discharging current: 3A

Instant discharging current: 5A

End-off voltage: 5.0V

Internal resistance: ≤100mΩ

Battery weight: 1600g

Product dimension: 120*120*75mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: signal light of beacon, testing equipment

*
*
*
