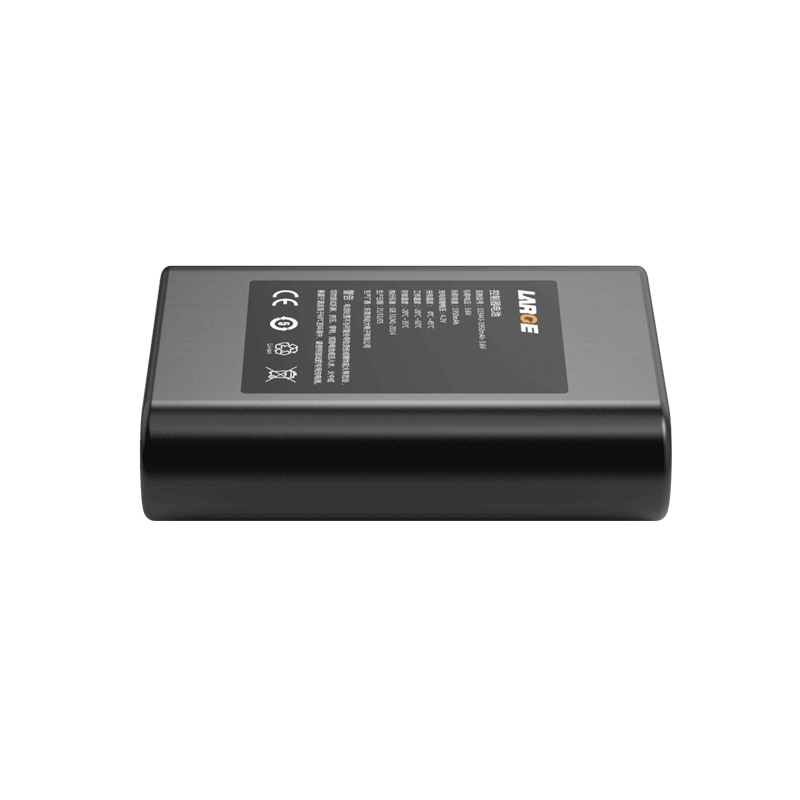

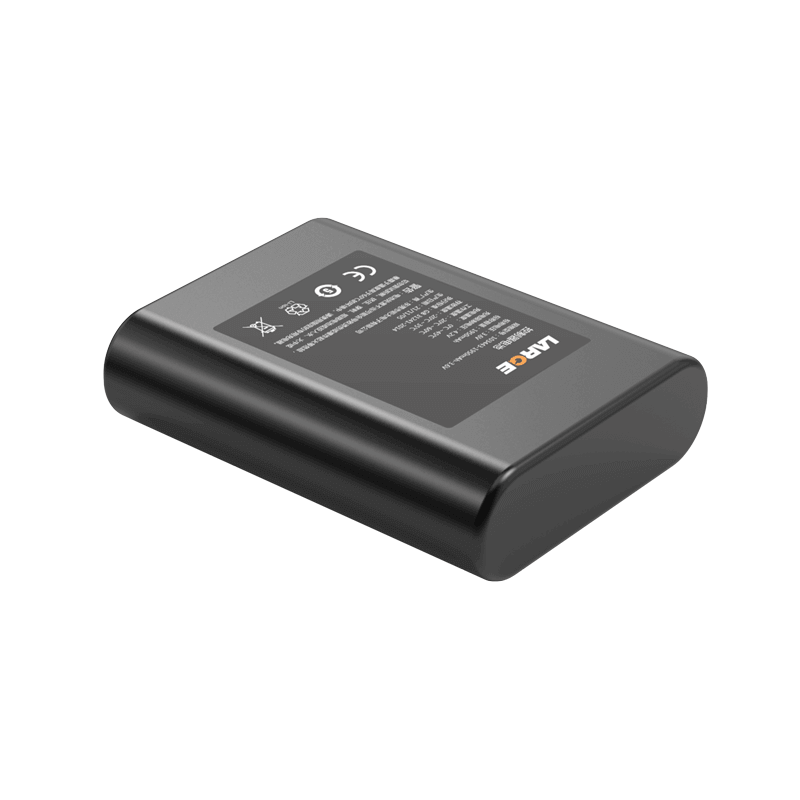

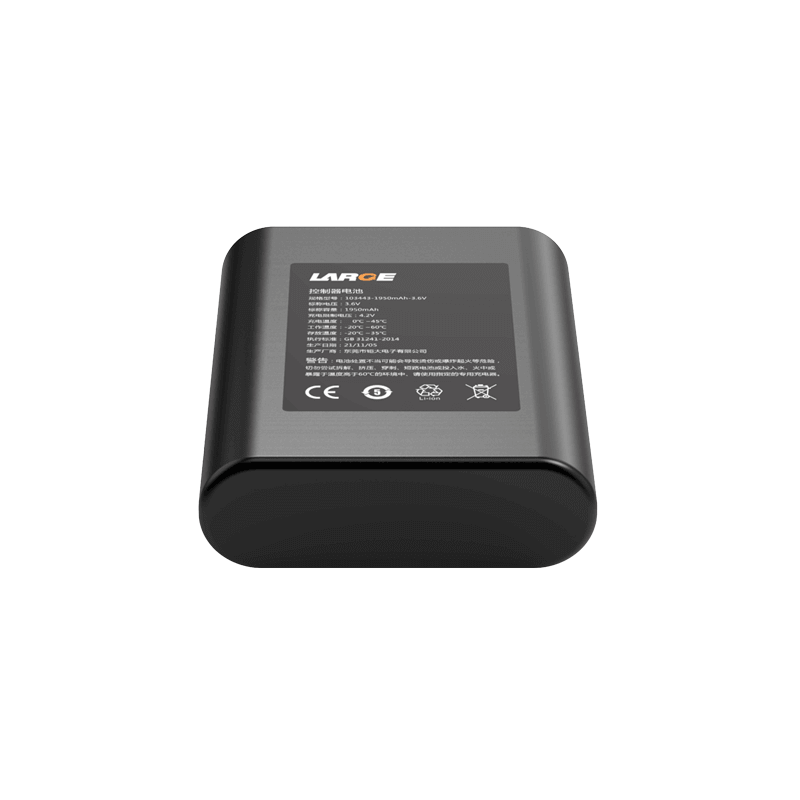

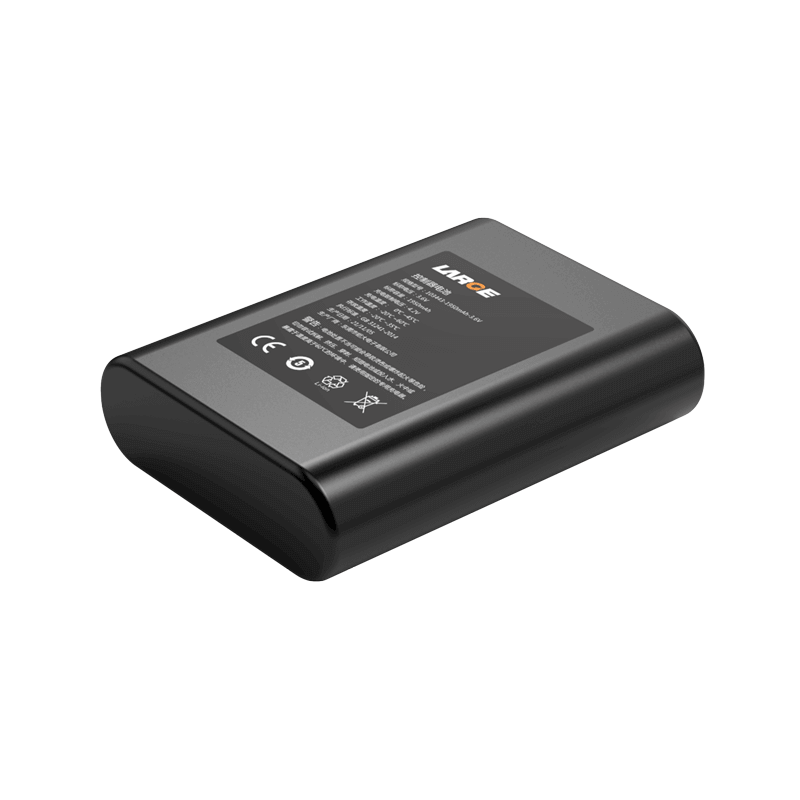

1950mAh 3.6V Sanyo Battery Explosion-proof Battery for Controller

Product Detail

Product number: 34AQ082-01

Cell model: 103443-1950MAH-3.6V

Specification: 103443-1S1P-1950MAH-3.6V

Product size: 48*35*11mm (Max)

Nominal voltage: 3.6V

Nominal capacity: 1950mAh

Product internal resistance: ≤180mΩ

Charging voltage: 4.2V

Charging current: ≤2A

Discharge current: ≤3A

Discharge cut-off voltage: 2.8V

Battery weight: 40G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: blue PVC heat shrinkable film

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: Portable controller, portable equipment


Product Features

1.Blue PVC heat shrinkable film package is simple, reliable and easy to install.

2.Connector plug terminal: Use MOLEX plug output mode to increase conductive reliability.

3.Battery management: Use imported seiko protection chip with good stability, high precision monitoring, accurate control, ESD protection and temperature protection to eliminate security risks to the greatest extent.

4.The battery pack is safe, has good discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.

*
*
*
