Custom Lithium ion Battery Pack

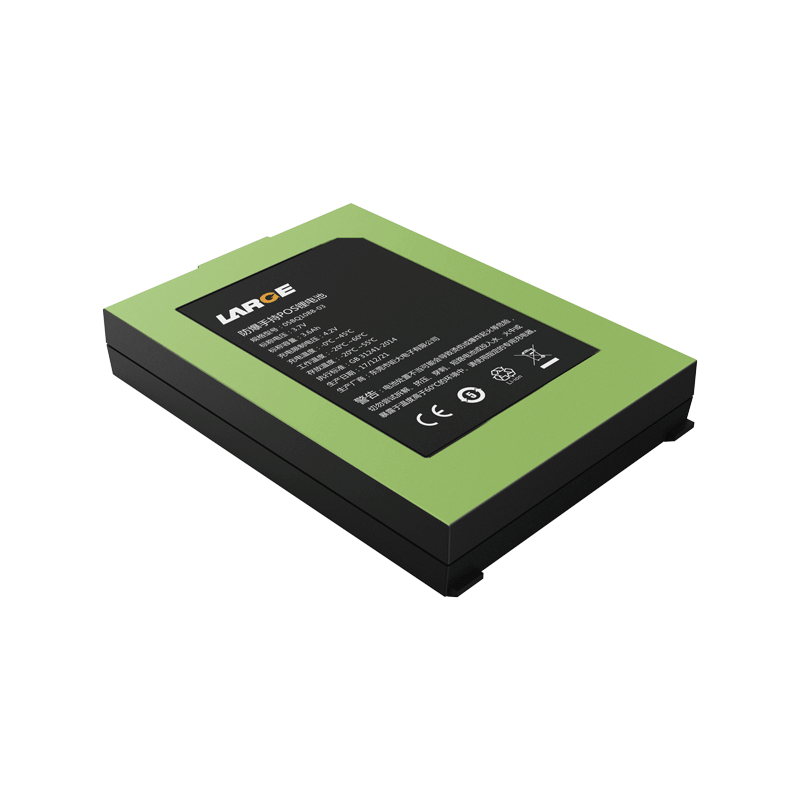

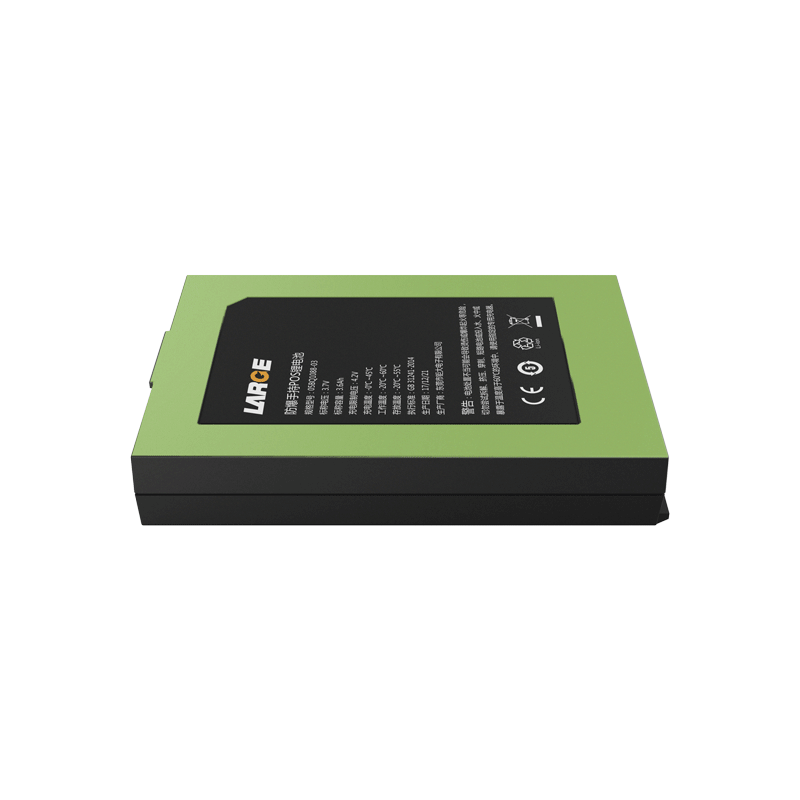

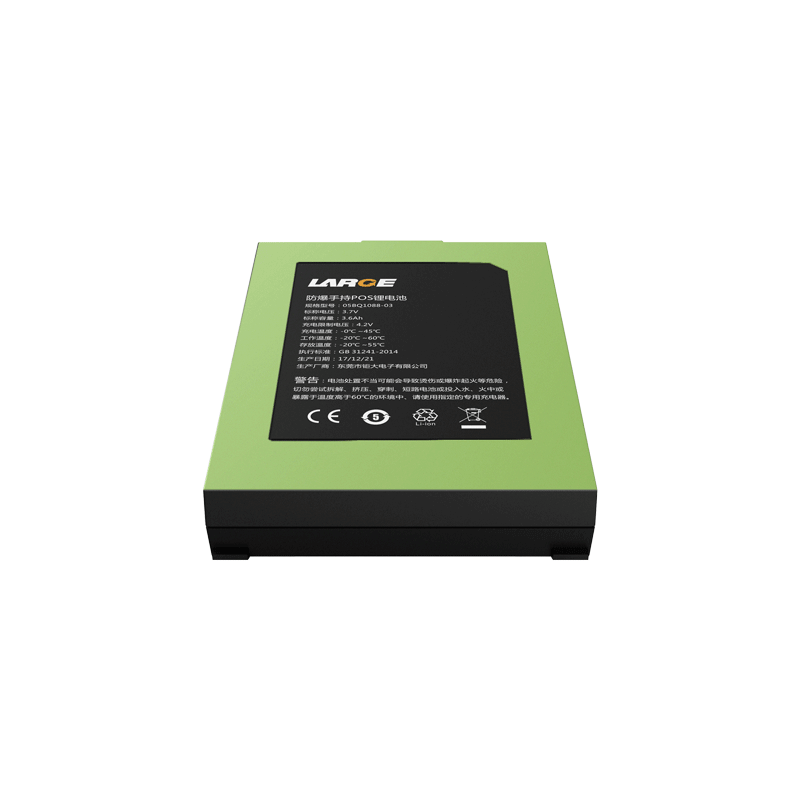

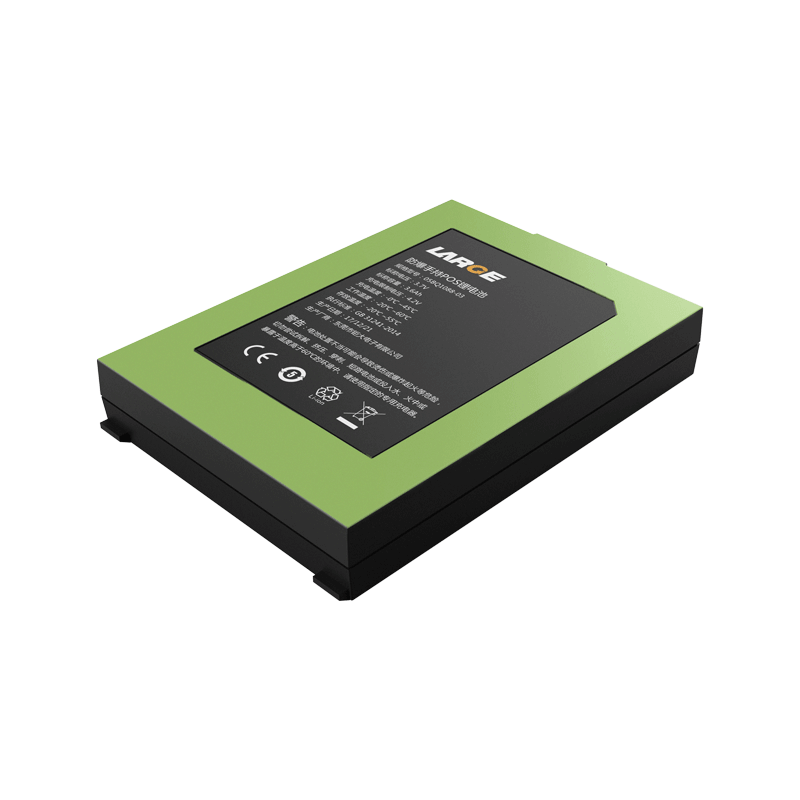

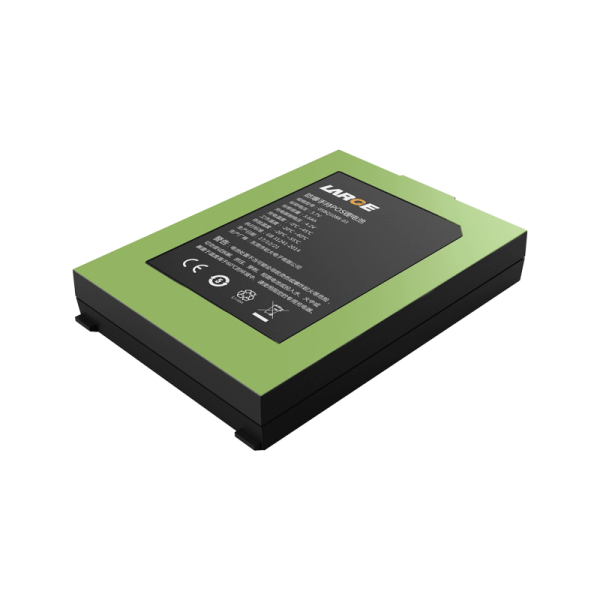

3.7V 3600mAh Explosion-proof Lithium Battery Panasonic Battery Explosion-proof Handheld POS Machine

  • Model number:05BQ1088-03

  • Nominal voltage:3.7V

  • Nominal capacity:3600mAh

  • Battery cell:UF103450PN/1800mAh/3.7V

  • Dimension:(77.6*54.4*13.5)±0.20mm

  • Application:financial payment

Product Detail

Product number: 05BQ1088-03

Cell model:UF103450PN/1800mAh/3.7V

Battery specification: UF103450PN/1S2P/3600mAh/3.7V (plastic)

Nominal voltage:3.7V

Nominal capacity:3.6Ah

Charging voltage: 4.2V

Charging current: ≤1.0A

Discharging current: ≤1.20A

End-off voltage: 2.75V

Internal resistance: ≤250mΩ

Battery weight: about 108g

Product dimension: (77.6*54.4*13.5)±0.20mm

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: plastic housing

Lithium-ion battery protection: ExibiiBT4 with explosion-proof function, overcharge protection, over-discharge protection, discharge overcurrent protection, discharge short circuit protection, etc.

Communication protocol: I2C

Application field: financial payment


Product features

1. It has ExibiiBT4 explosion-proof function, and can be used under extreme environment (high risk site such as oil station).

2. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
