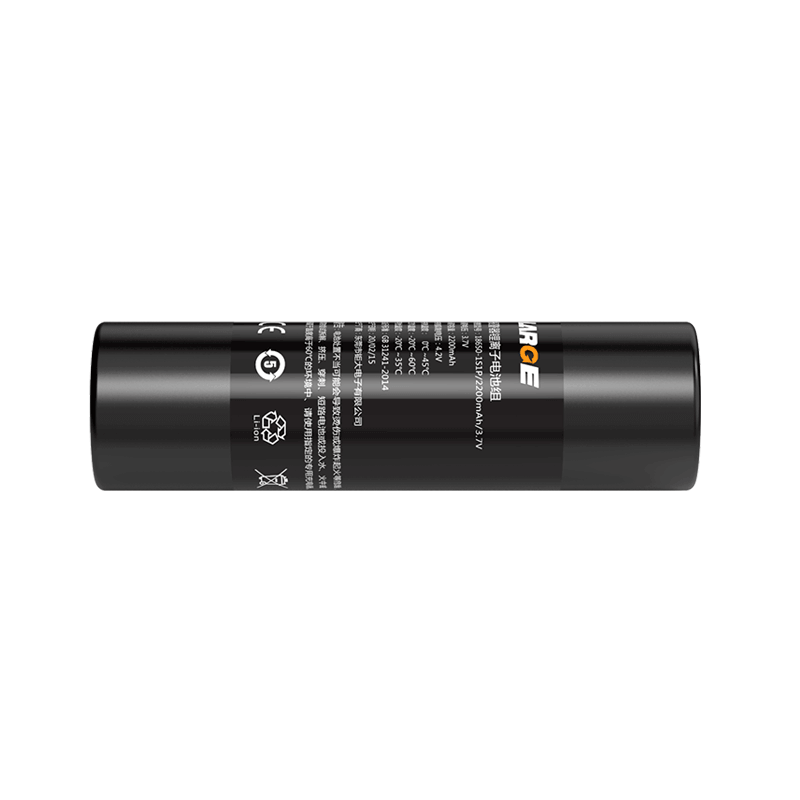

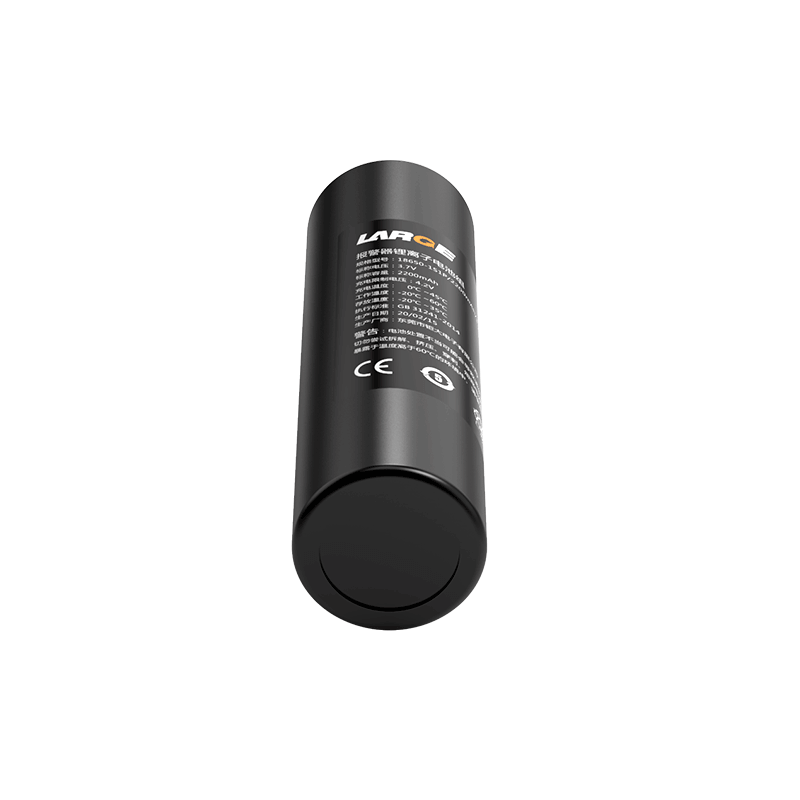

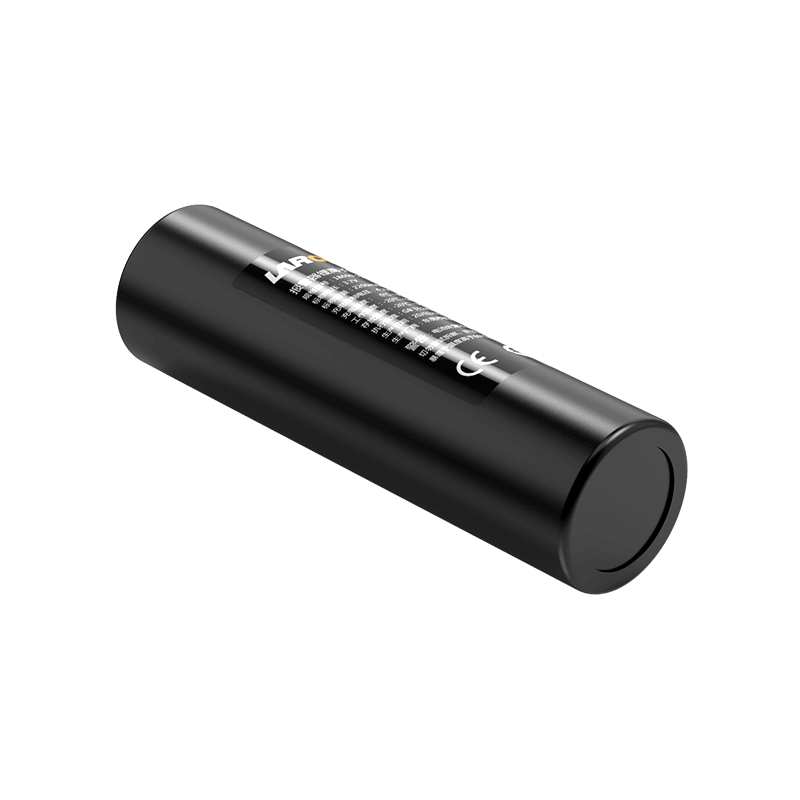

18650 3.6V 2200mAh Lithium-ion Battery for Alarm

18650 3.6V 2200mAh Lithium-ion Battery for Alarm
18650 3.6V 2200mAh Lithium-ion Battery for Alarm
18650 3.6V 2200mAh Lithium-ion Battery for Alarm
18650 3.6V 2200mAh Lithium-ion Battery for Alarm

Product Detail

Product number: 01DQ0023-54

Cell model: 18650/2200mah /3.7V

Battery specification: 18650-1S1P/2200mAh/3.7V

Nominal voltage: 3.7V

Nominal capacity: 2200mAh

Charging voltage: 4.2V

Charging current: ≤ 1.1A

Discharge current: 0.5A

Instantaneous discharge current: 2.2A

Discharge cut-off voltage: 2.5V

Product internal resistance: ≤200mΩ

Battery weight: 0.05kg

Product size: 70*19.5*19.5mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 35 ° C

Battery case: blue PVC

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Portable devices

*
*
*
