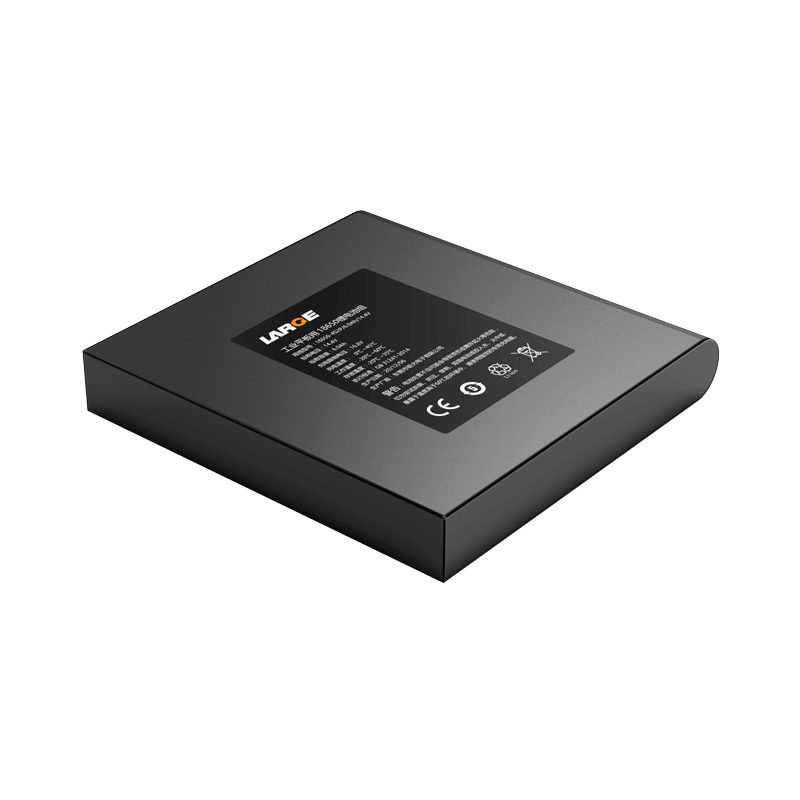

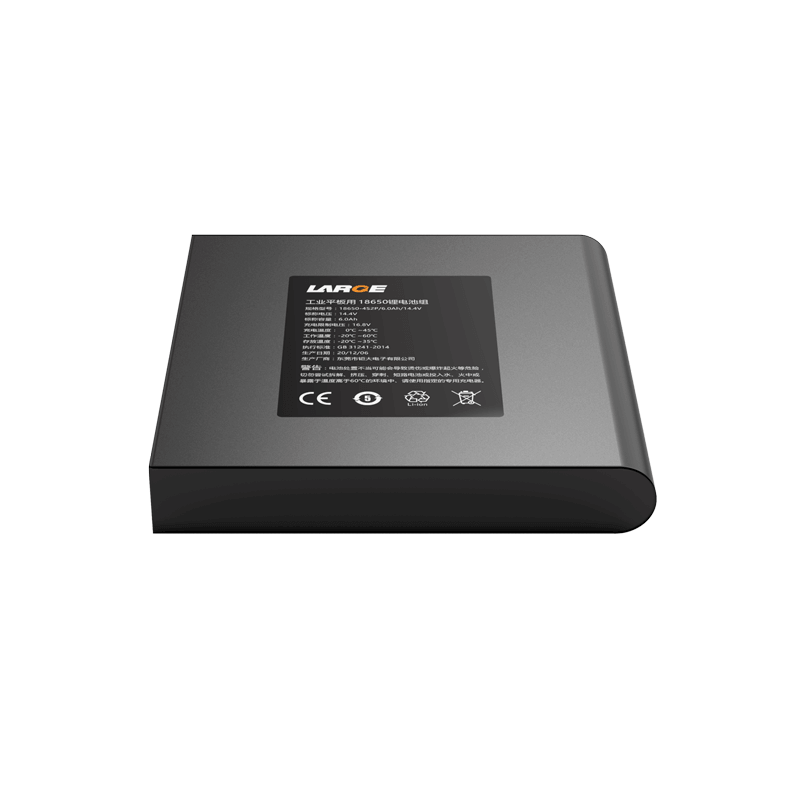

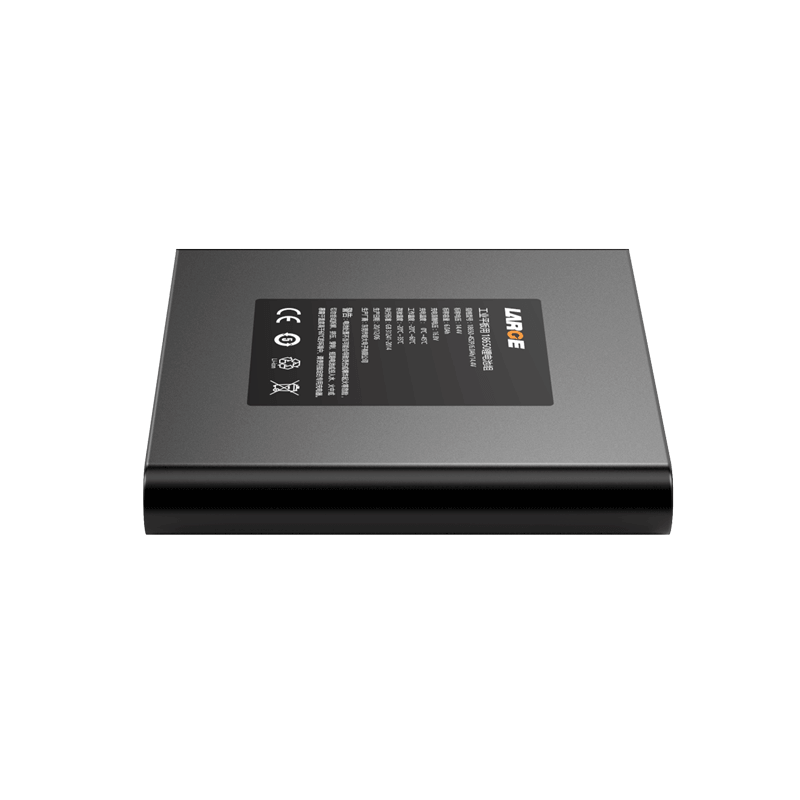

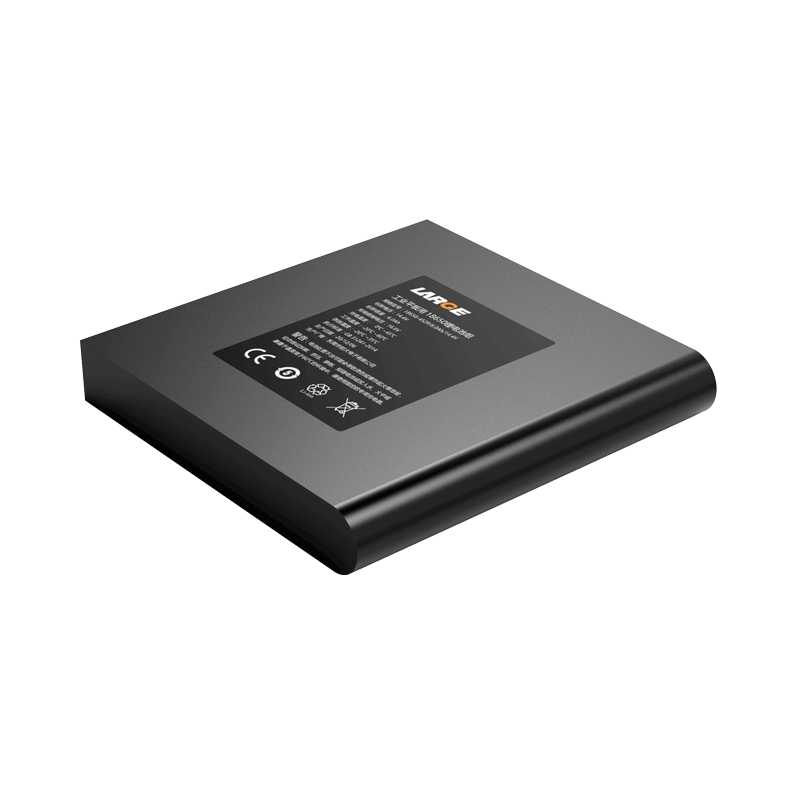

18650 14.4V 6.0Ah Samsung Battery for Industrial Tablet

Product Detail

Product number: 02DQ0444-01

Cell model:18650/3000mAh/3.6V-Samsung

Battery specification: 18650-4S2P/6.0Ah/14.4V

Nominal voltage:14.4V

Nominal capacity:6.0Ah

Charging voltage: 16.8V

Charging current: ≤3.0A

Discharging current: 6.0A

Instant discharging current: 10.0A

End-off voltage: 11.2V

Internal resistance: ≤250mΩ

Battery weight: 550g

Product dimension: 21*130*135mm

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35 ℃

Lithium ion battery protection: power management, costant voltage output, short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: industrial tablet

*
*
*
