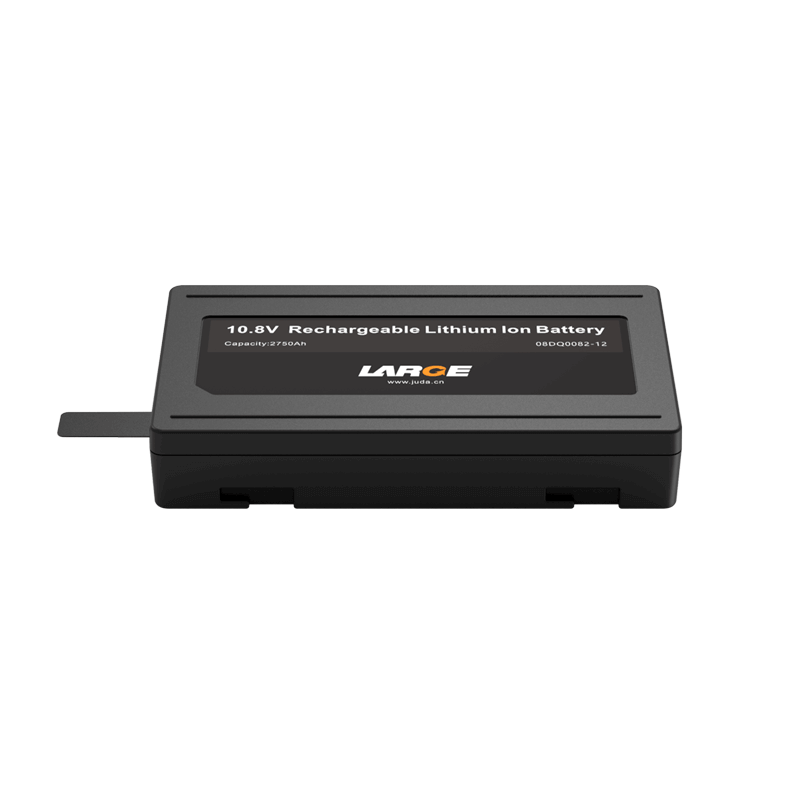

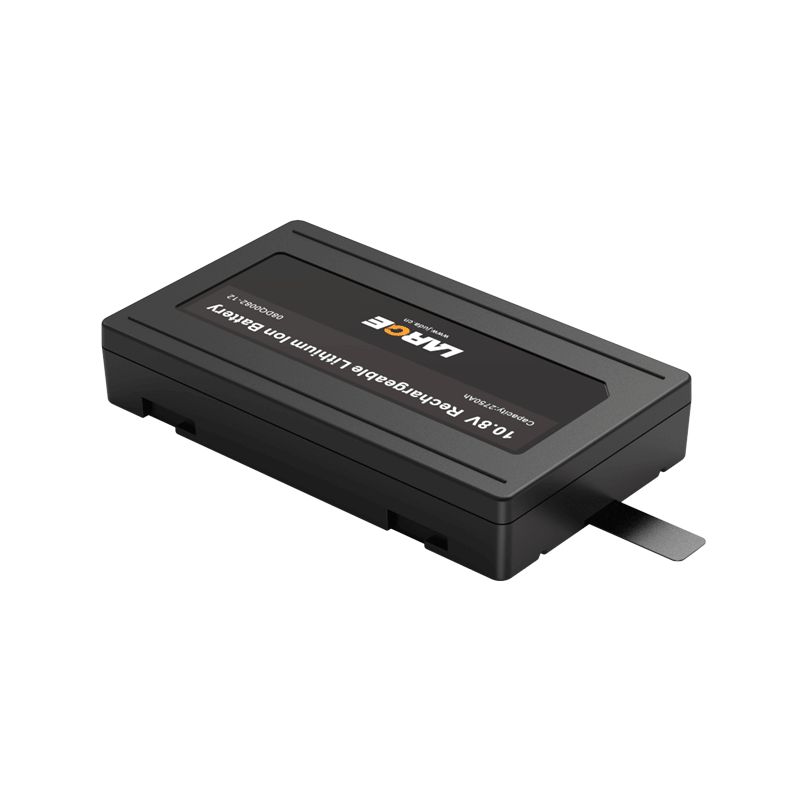

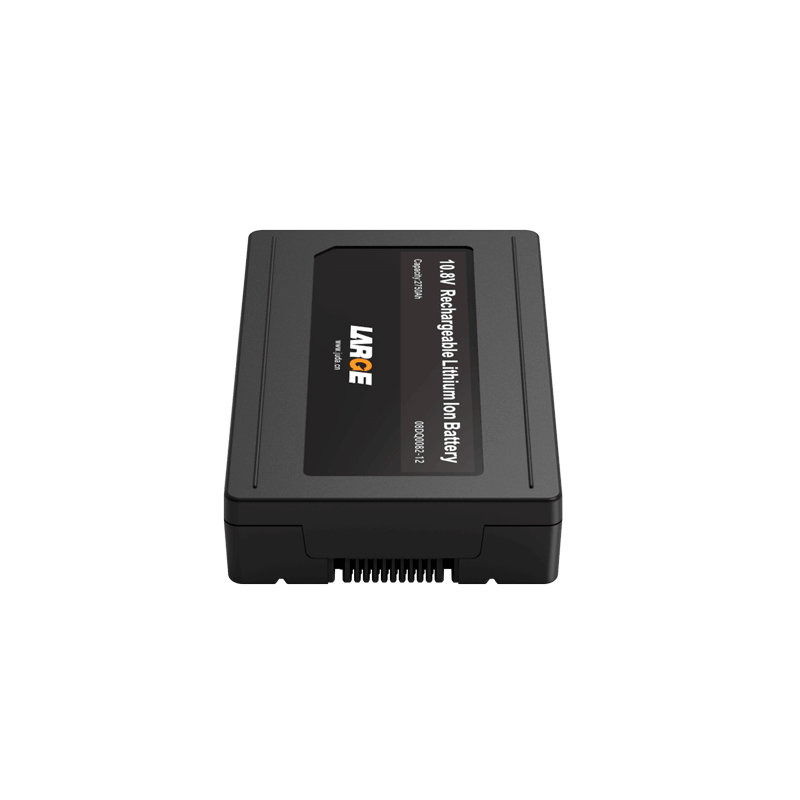

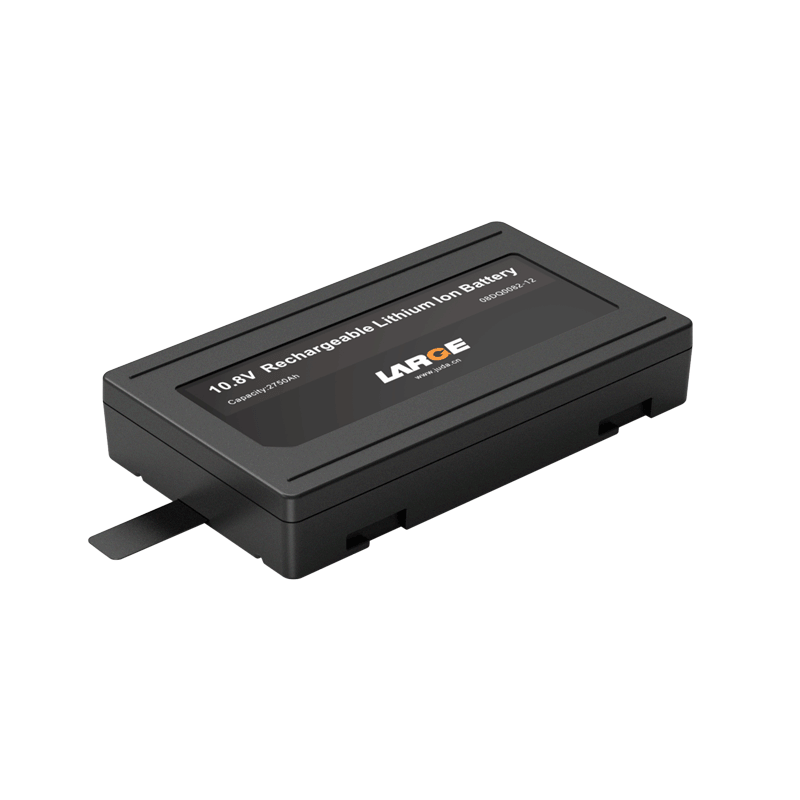

18650 10.8V 2750mAh Samsung Battery for Ventilator

Project number: 08DQ0082-12

Cell model: INR18650-29E/2750mAh/3.65V-SDI

Battery specification: 18650-3S1P/2750mAh/10.95V

Nominal voltage: 10.8V

Nominal capacity: 2750mAh

Charging voltage: 12.6V

Charging current: ≤2.75A

Discharge current: 2.75A

Instantaneous discharge current: 8.25A

Discharge cut-off voltage: 8.52V

Internal resistance: ≤250mΩ

Battery weight: 310g

Product dimension: 23.0*75*130mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 35 ° C

Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: ventilator, medical equipment
