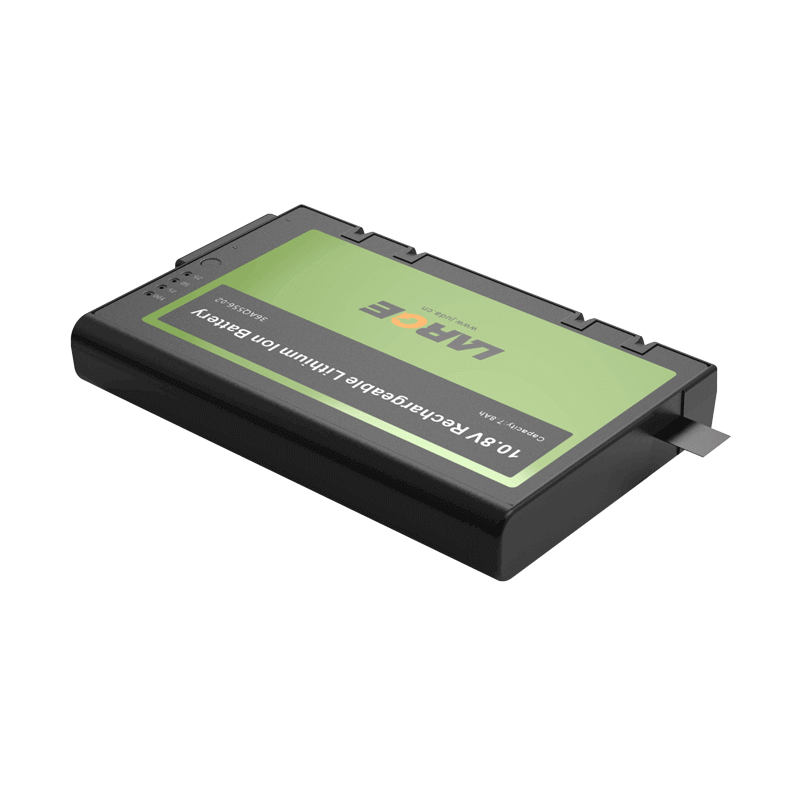

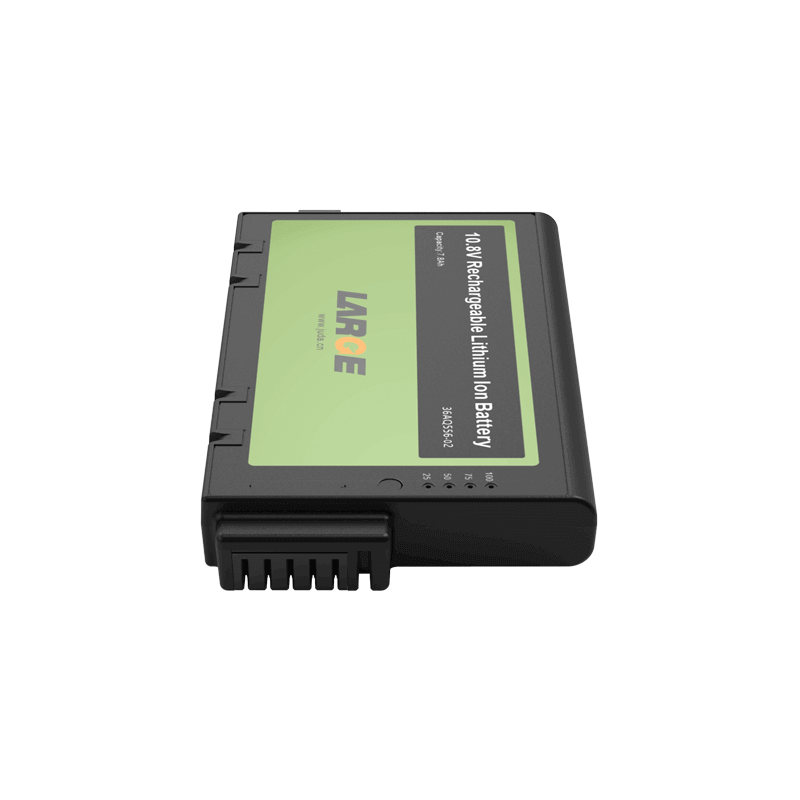

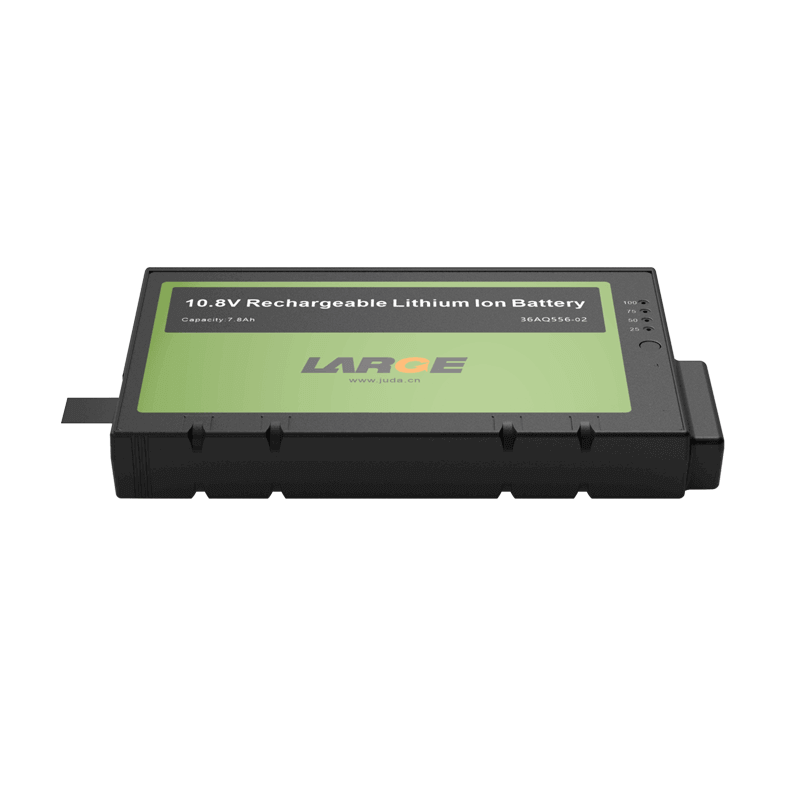

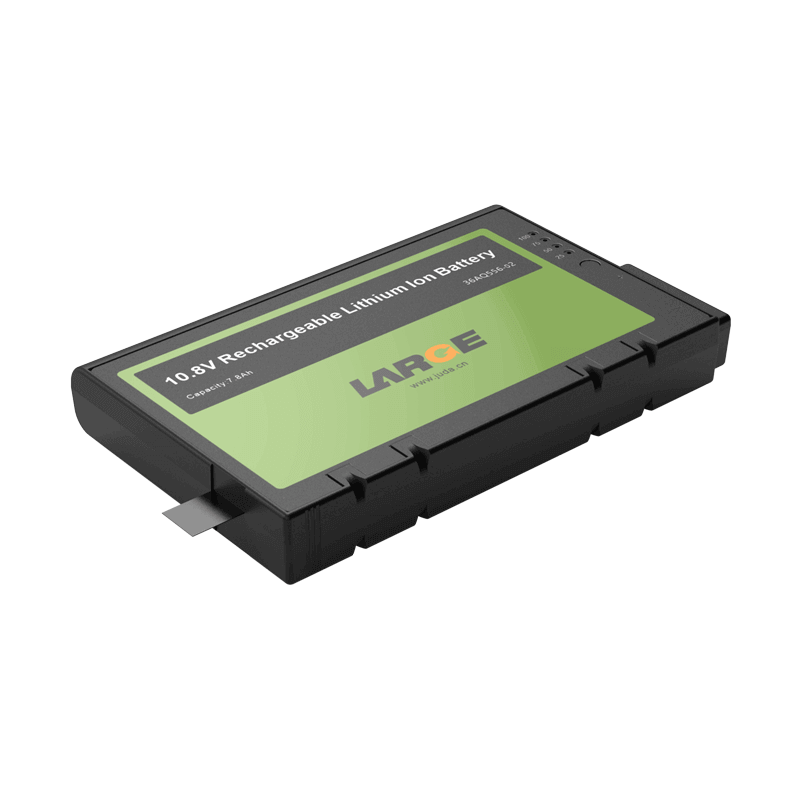

18650 10.8V 7.8Ah Low Temperature Battery for Laptop (Thin Version)

Product Detail

Product number: 36AQ556-02

Cell model:18650/2600mAh/3.6V

Battery specification: 18650-3S3P/7.8Ah/10.8V

Battery dimension:148.8*88.9*19.5mm(Max)

Nominal voltage:10.8V

Nominal capacity:7.8Ah

Charging voltage: 12.6V

Charging current: ≤3.5A

Discharging current: ≤7.8A

End-off voltage: 7.5V

Internal resistance: ≤180mΩ

Battery weight: 650g

Charging temperature:0~45℃

Discharging temperature: -40~60℃

Storage temperature: -20~+60℃(less than one month)-20~30 ℃(less than three months);-20~+30℃(less than twelve months)

Battery case: plastic housing

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, over temperature protection, etc.

Application field: laptop battery



Product features

1.Plastic housing is simple and reliable, and it easy to install.

2.SMBUS communications protocol

3.Output terminal: Adopt the national standard UL wire output mode to increase the electrical reliability.

4.Battery protection management: Adopt imported well-known brand protection chip with good stability, high precision monitoring and precise control to eliminate the potential safety risks.

5.The battery pack has good safety, nice discharge performance and long cycle life.

6.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
