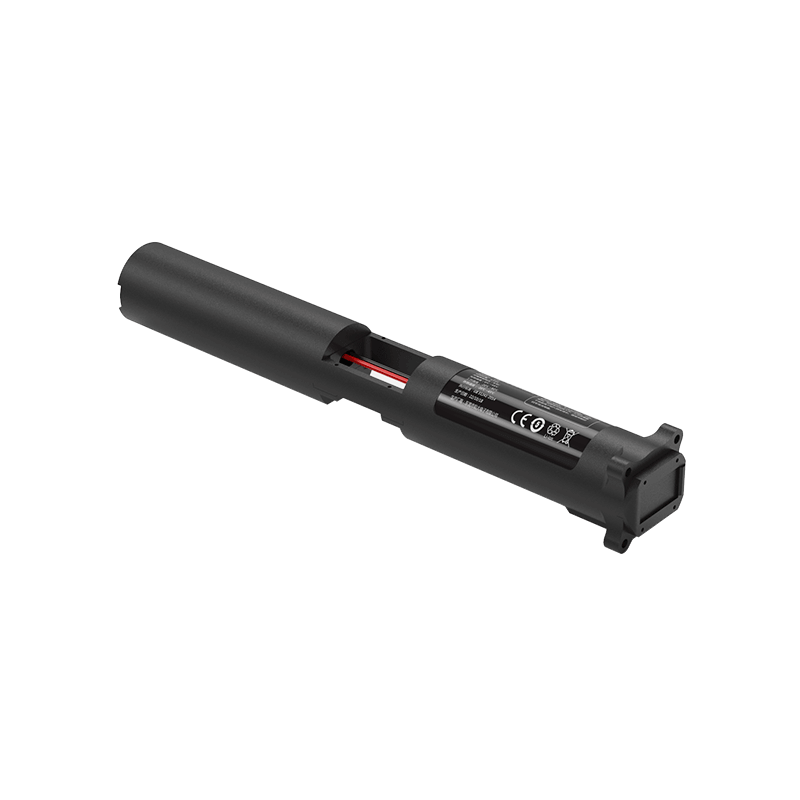

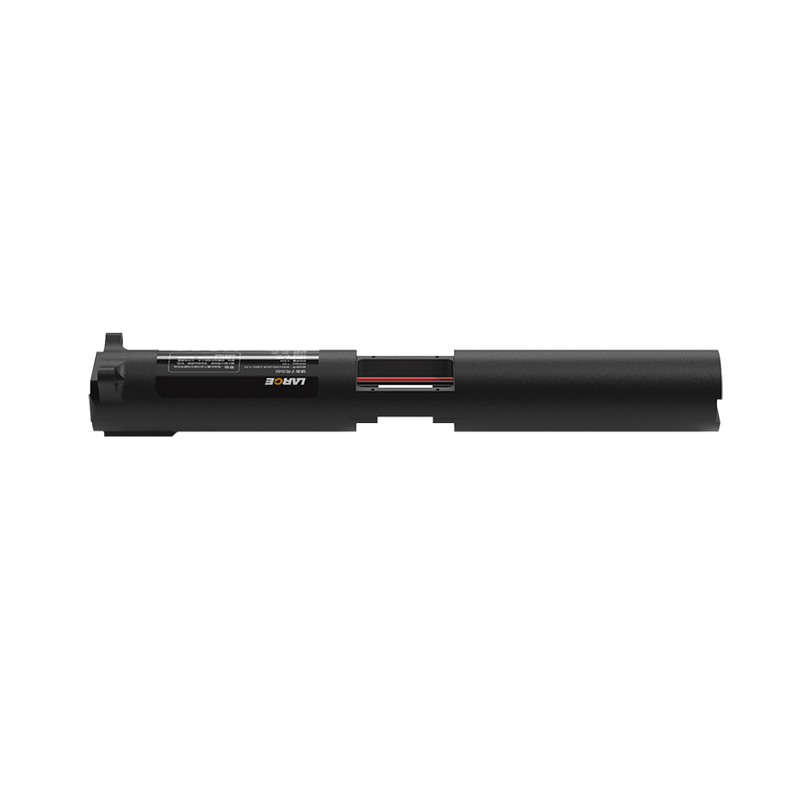

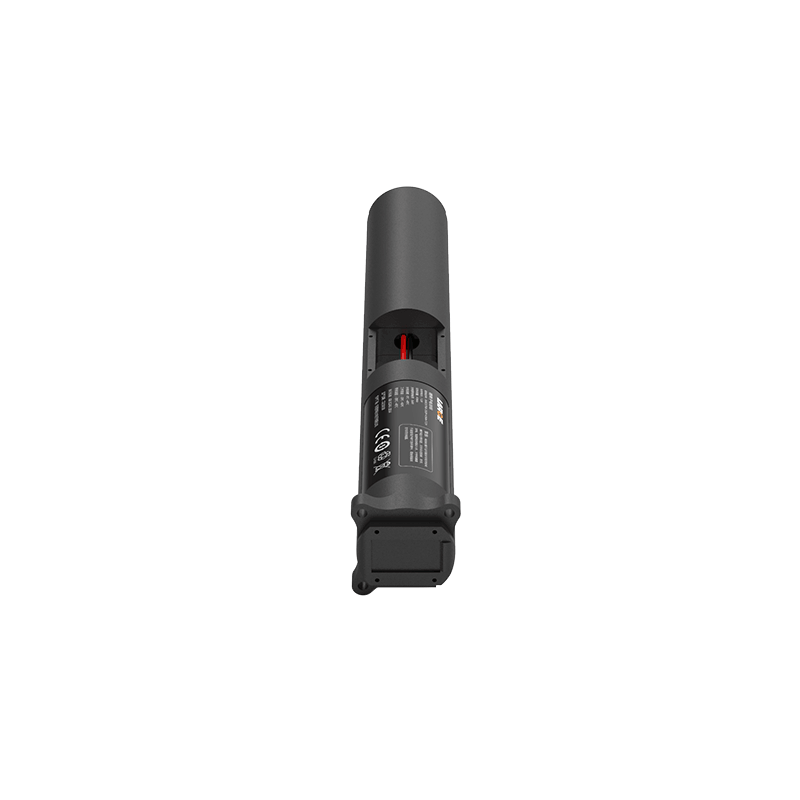

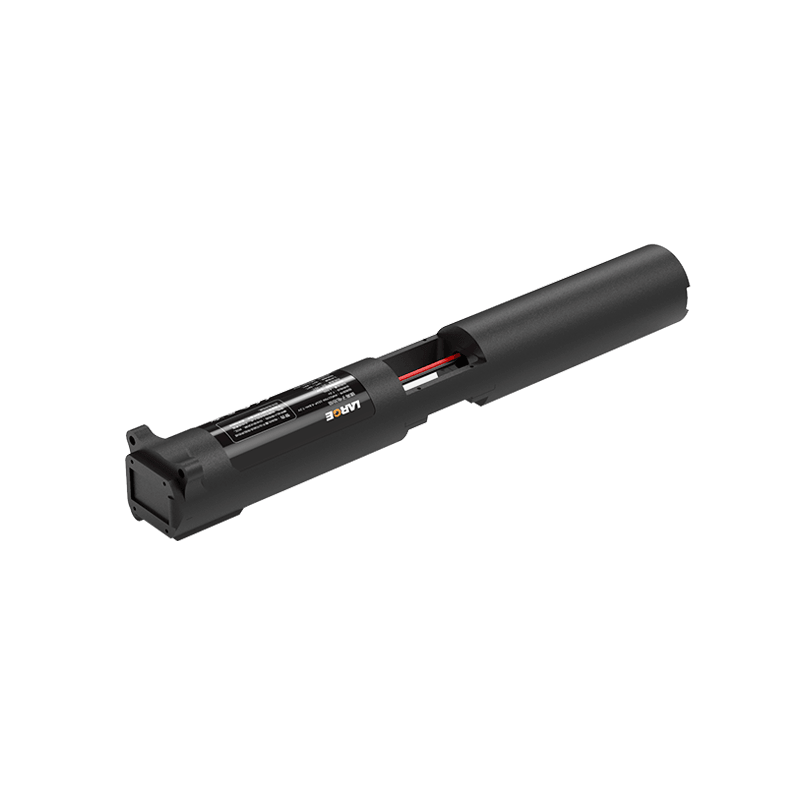

21700 7.2V 4.9Ah Lithium-ion Battery Pack

Product number: 36AQ0288-01

Cell model: INR21700-4.9Ah-3.6V

Battery specification: INR21700-2S1P-4.9Ah-7.2V

Product size: (length) 194.5mm* (width) 26mm* (thickness) 22.5mm

Nominal voltage: 7.2V

Nominal capacity: 4.9Ah

Charging voltage: 8.4V

Charging current: ≤2.35A

Discharge current: ≤2.35A

Discharge cut-off voltage: 5V

Finished internal resistance: ≤200mΩ

Battery weight: ≤300g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)

Battery package: plastic case

Communication protocol: I2C

Output mode: national standard UL wire

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.

Application: Equipment
