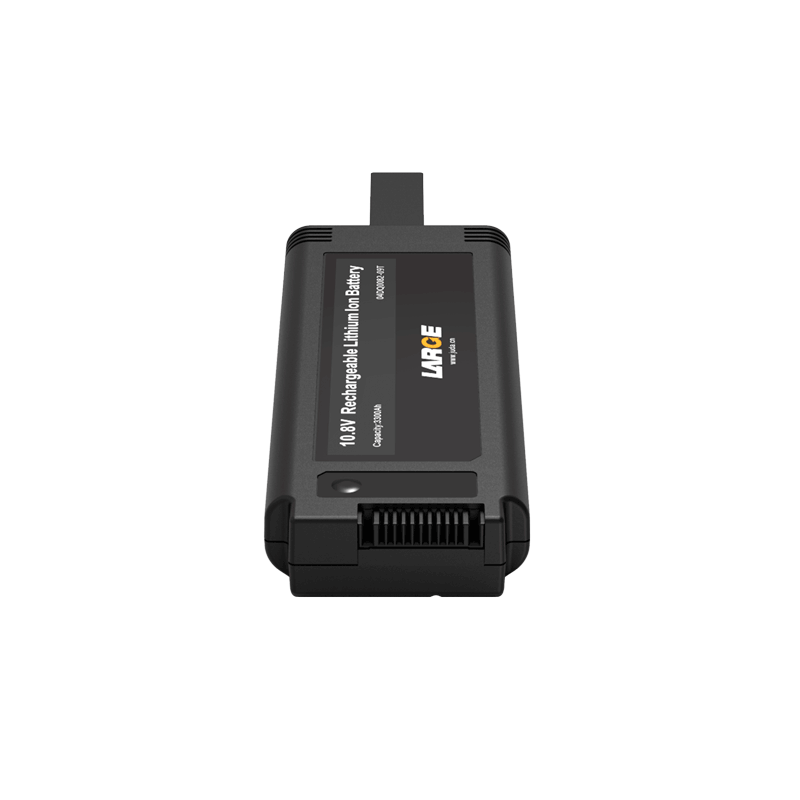

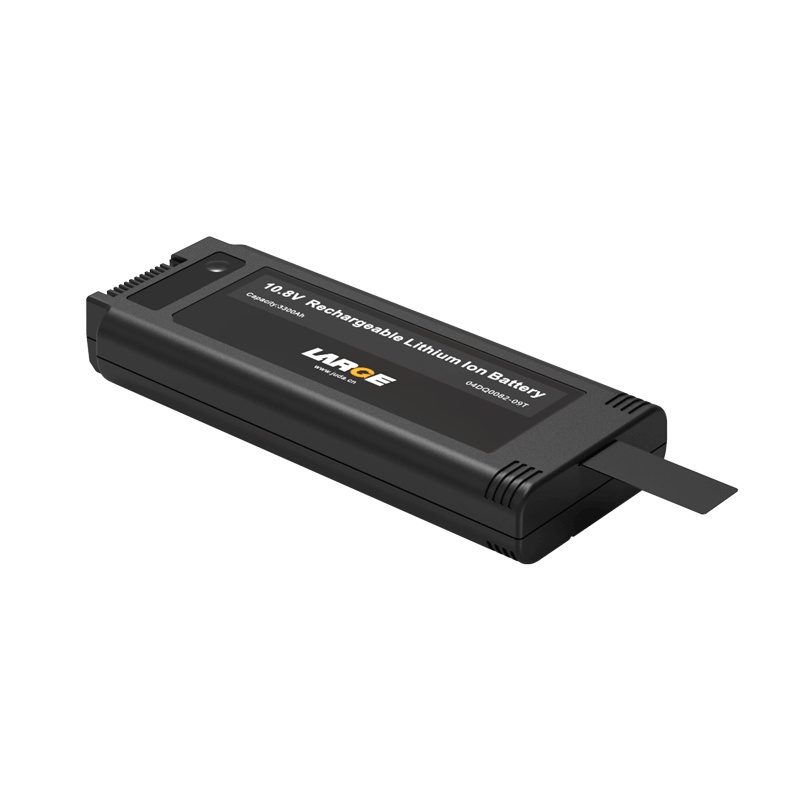

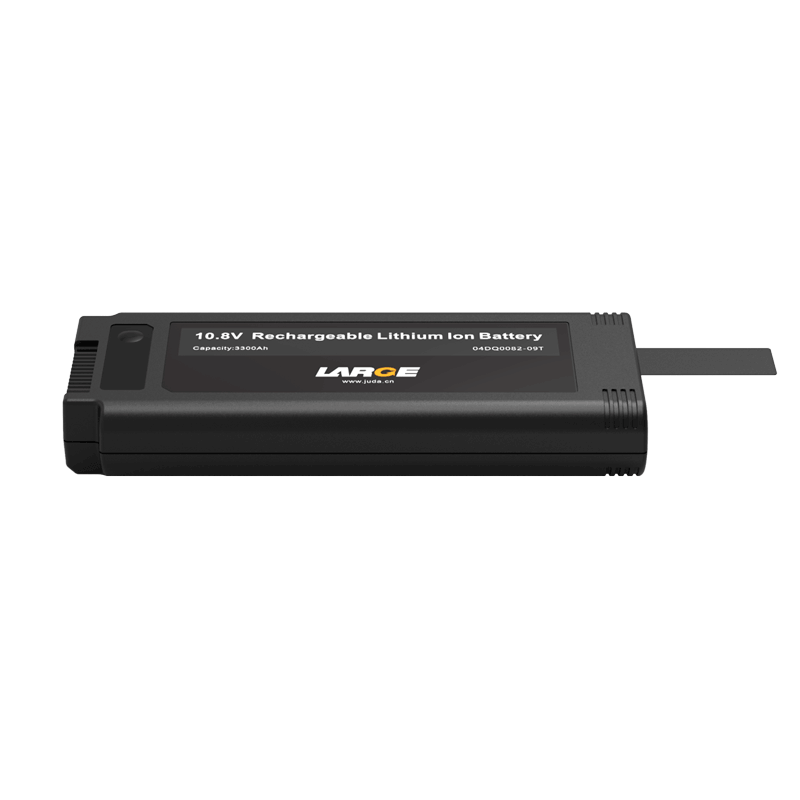

18650 10.8V 6600mAh Samsung Battery for Ventilator

18650 10.8V 6600mAh Samsung Battery for Ventilator
18650 10.8V 6600mAh Samsung Battery for Ventilator
18650 10.8V 6600mAh Samsung Battery for Ventilator
18650 10.8V 6600mAh Samsung Battery for Ventilator

Product Detail

Project number: 04DQ0082-08

Cell model: INR18650-35E/3350mAh/3.6V

Battery specification: 18650-3S2P/6600mAh/10.8V

Nominal voltage: 10.8V

Nominal capacity: 6600mAh

Charging voltage: 12.6V

Charging current: ≤3.35A

Discharge current: 5.00A

Instantaneous discharge current: 13.0A

Discharge cut-off voltage: 8.10V

Internal resistance: ≤250mΩ

Battery weight: 310g

Product dimension: 23.0*62*154mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 35 ° C

Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: ventilator, medical equipment

*
*
*
