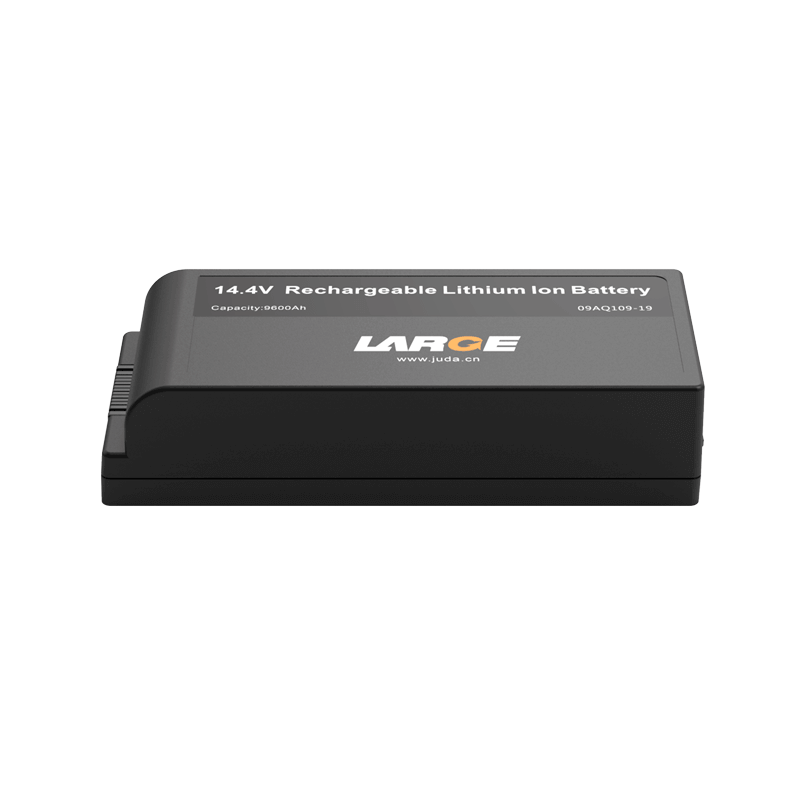

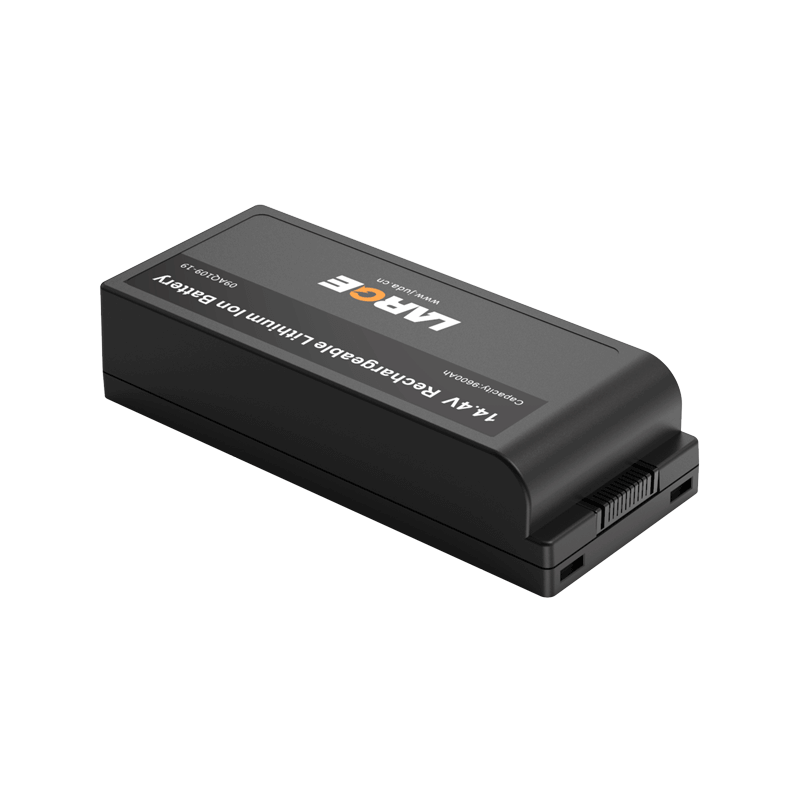

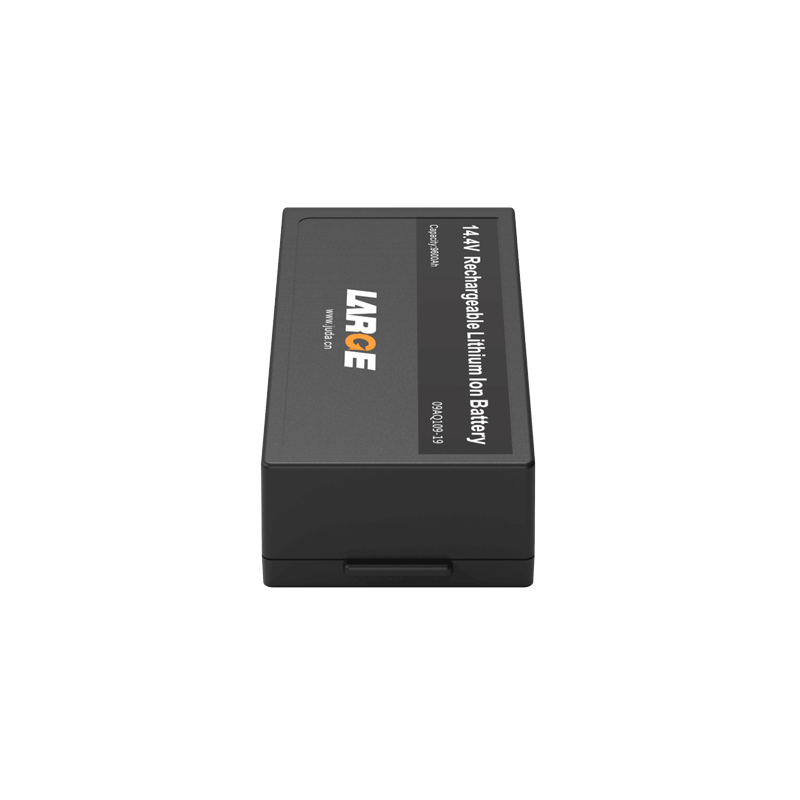

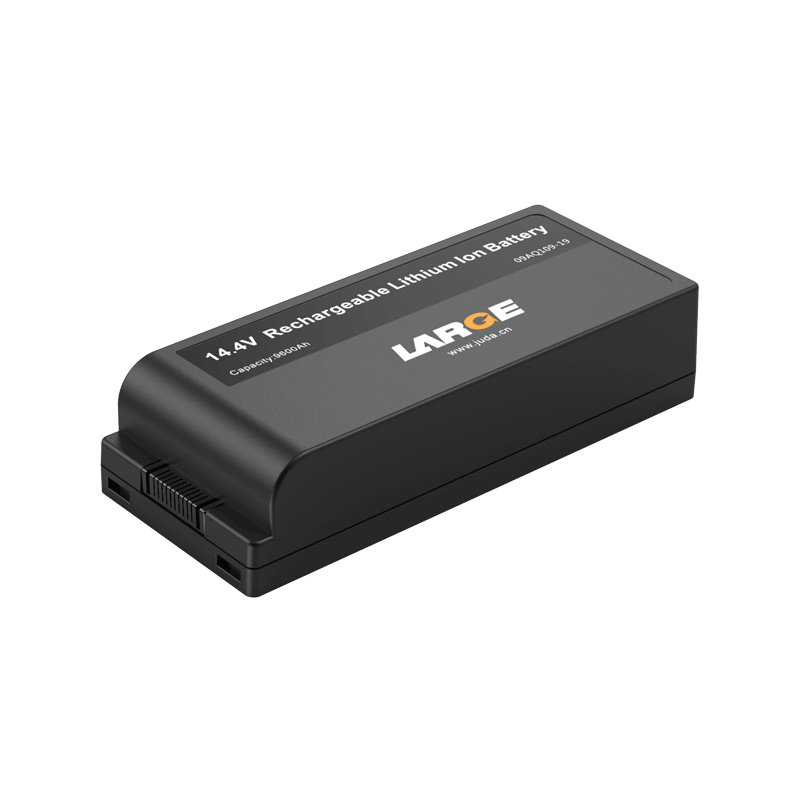

18650 9600mAh 14.4V Lithium-ion Battery for Portable Ultrasonic Testing Equipment

Product Detail

Product number: 09AQ109-19

Cell model: 18650-2420MAH-3.6V

Battery specification: 18650-4S4P-9600MAH-14.4V

Product size: 174.5*75.2*40.2mm (Max)

Nominal voltage: 14.4V

Nominal capacity: 9600mAh

Charging voltage: 16.8V

Charging current: ≤ 9.6a

Discharge current: ≤ 9.6a

Discharge cut-off voltage: 12V

Internal resistance: ≤250mΩ

Battery weight: 850 GB

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery package: ABS+PC case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.

Application: Portable ultrasonic equipment, medical B ultrasound equipment


Product features

1.The ABS+PC shell and aluminum alloy shell strengthen reliability and firmness to the battery.

2.Hardware output: Adopt gold-plated shrapnel output to increase conductive reliability;

3.Battery protection management: Adopt dedicated lithium battery protection chip with high stability, nice precision monitoring and precise control, temperature protection to eliminate security risks to the greatest extent.

4.The battery pack has good safety, nice discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.

*
*
*
