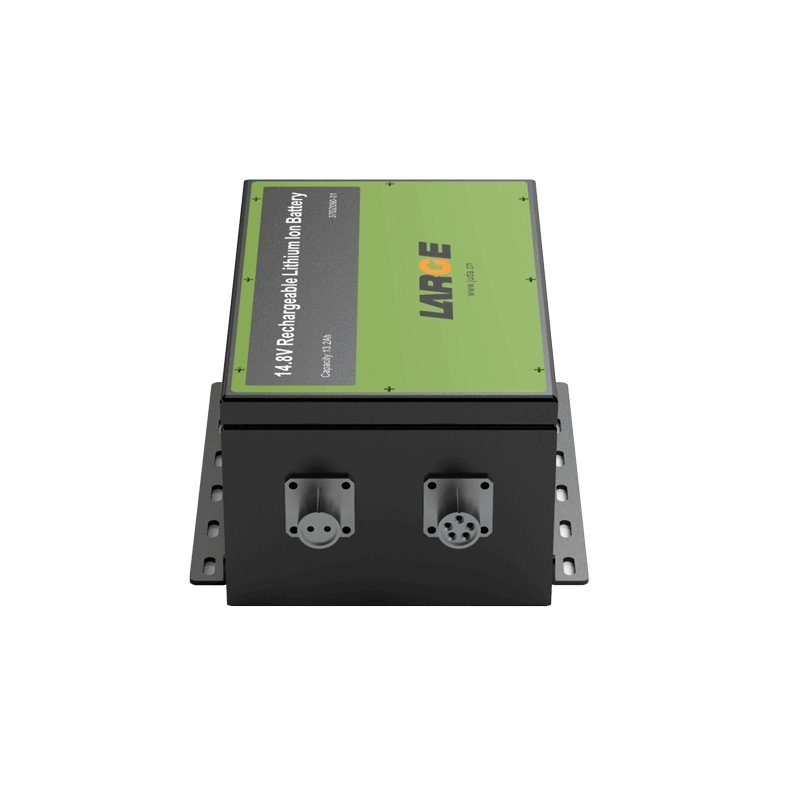

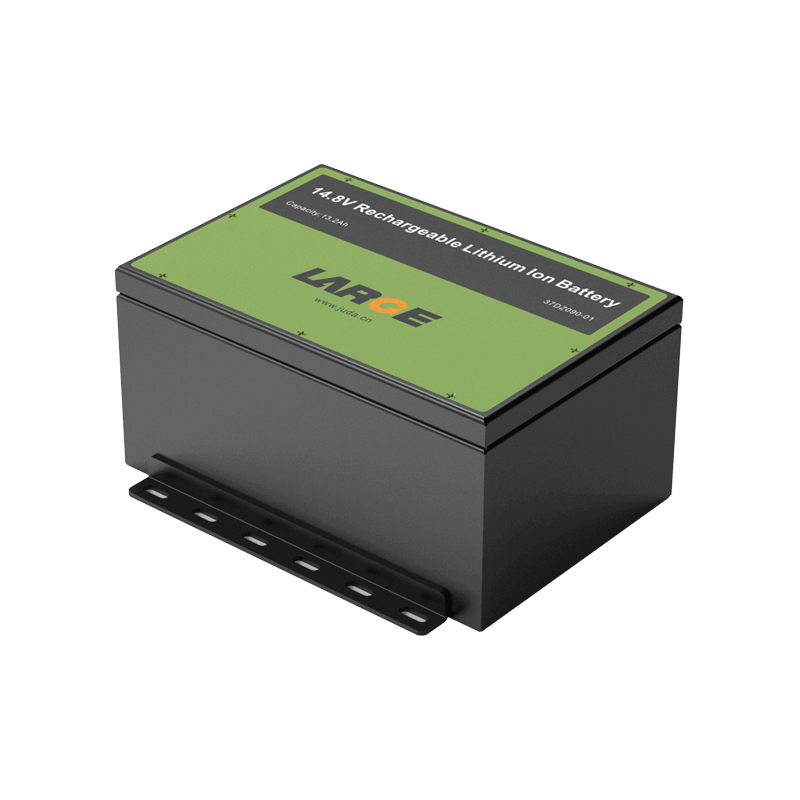

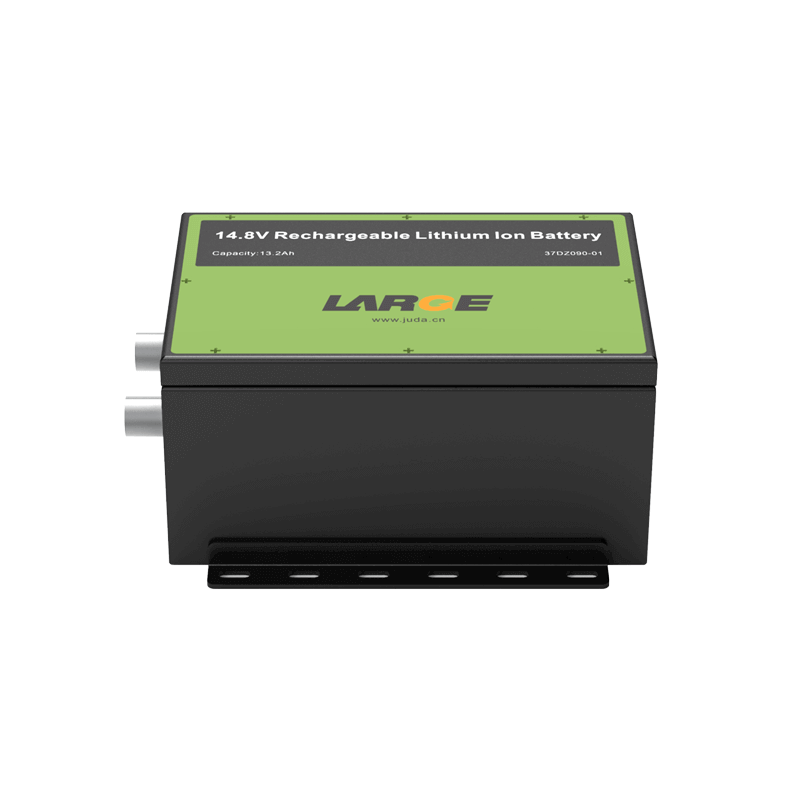

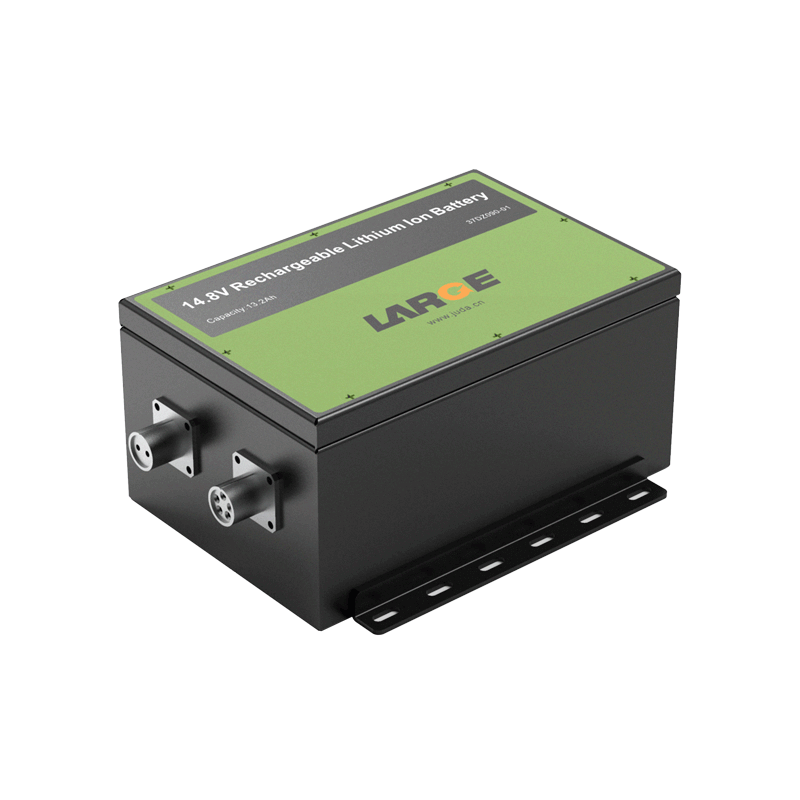

18650 14.8V/13.2AH Low Temperature Battery for Instrument

Product Detail

Project number: 37DZ090-01

Cell model: 18650 3.7V/2200mAh

Specification: 4S6P/14.8V/ 13.2AH (low temperature)

Nominal voltage: 14.8V

Nominal capacity: 13.2Ah

Charging voltage: 16.8V

Charging current: ≤6A

Discharge current: 6A

Instantaneous discharge current: 10-20A

Discharge cut-off voltage: 10V

Internal resistance: ≤250mΩ

Battery weight: 3.5kg

Product size: 90*120*180mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60 ℃

Storage temperature: -40 ° C to 45 ° C

Battery case: metal plate shell

Communication: 485 communication

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature communication, etc.

Application: Instrumentation equipment power supply


Product Features

1.Low temperature -40 discharge

2.Temperature protection

3.485 MODBUS communication

4.The battery pack has good safety and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.

*
*
*
