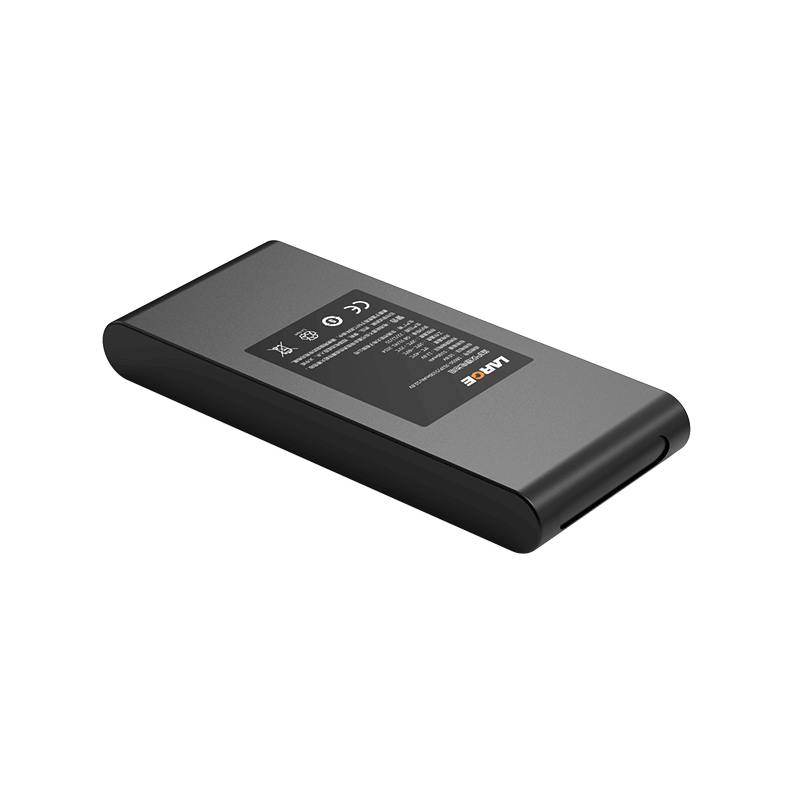

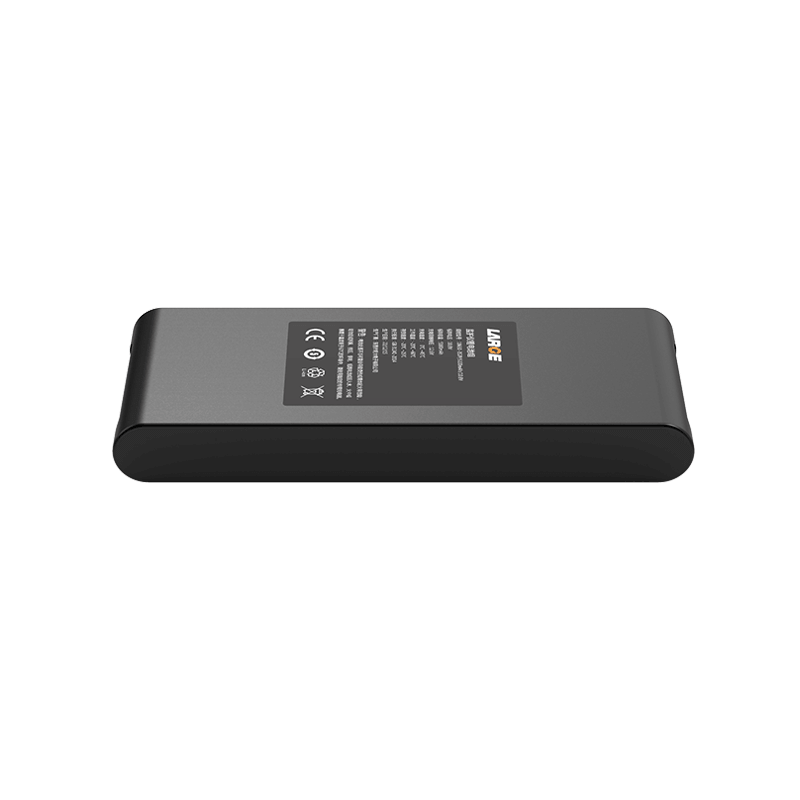

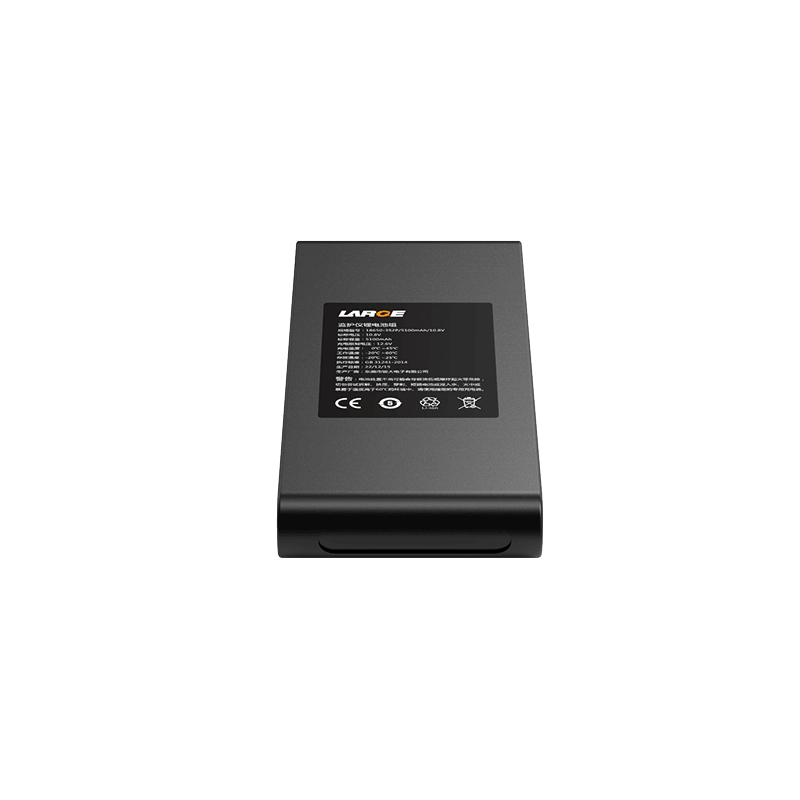

18650 10.8V 5100mAh Lithium-ion Battery Pack for Monitor

Project number: 08DQ0082-21

Battery model: 18650/2550mAh/3.6V

Battery specification: 18650-3S2P/5100mAh/10.8V

Nominal voltage: 10.8V

Nominal capacity: 5000mAh

Charging voltage: 12.6V

Charging current: ≤1.25A

Discharge current: 3.0A

Instantaneous discharge current: 8.0A

Discharge cut-off voltage: 8.1V

Finished internal resistance: ≤150mΩ

Battery weight: 200g

Product size: 19.5*70.5*112mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 25℃

Battery case: /

Intelligent lithium-ion protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: Monitor
