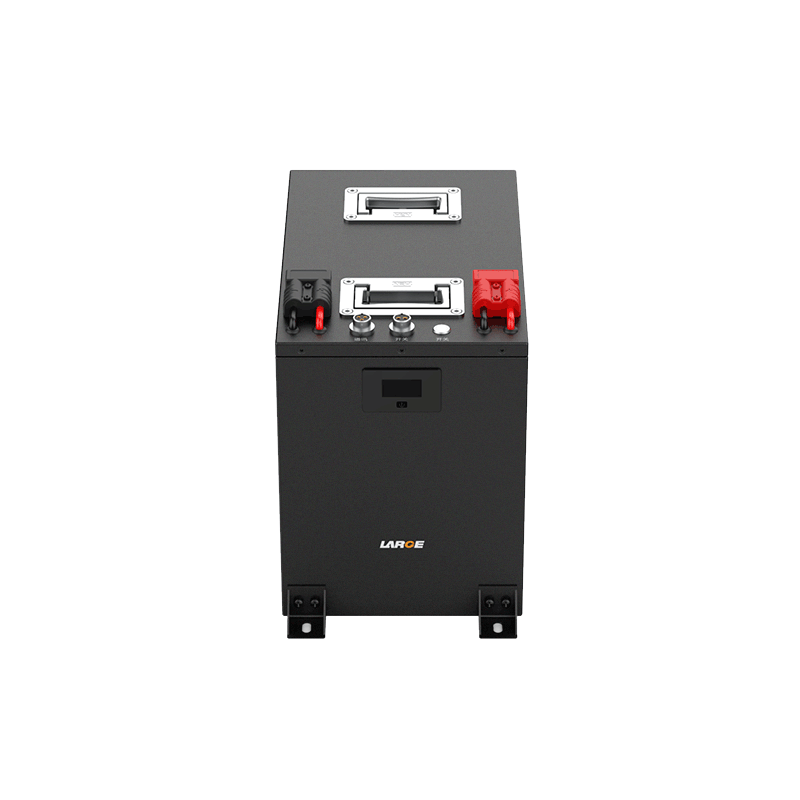

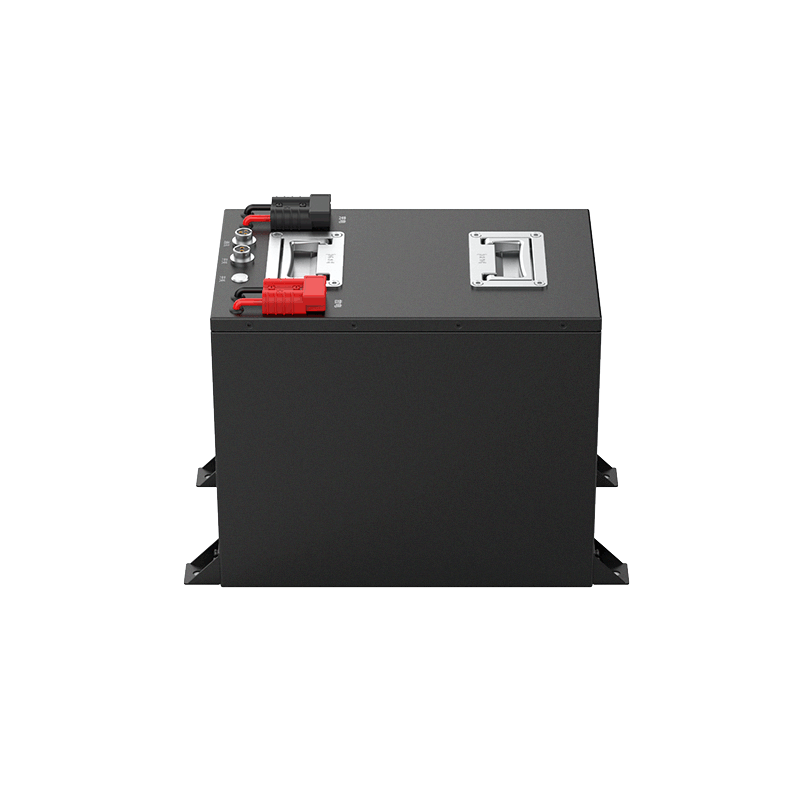

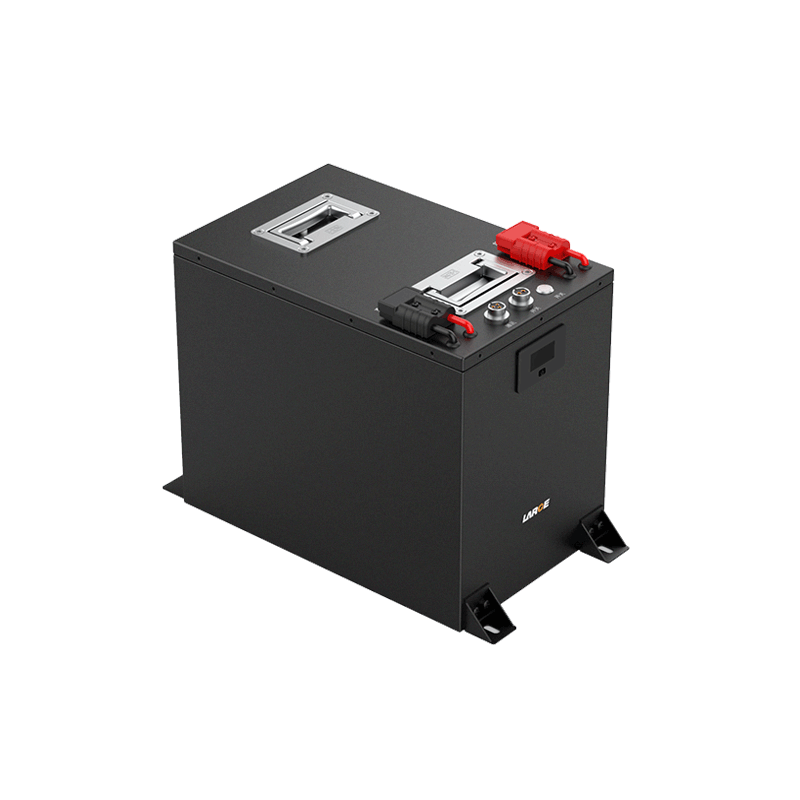

Low-temperature Charge and Discharge Lithium Iron Phosphate Battery Pack for Mining Robot
Product Number:
40AQ052-01
Nominal voltage:
48V
Nominal capacity:
45Ah
Battery Configuration:
32140-15S3P
Dimension:
(300 × 190 × 245) ±1 mm
Application:
robotic equipment
RS485 Communication Support, Metal Protective Case, High Current Output
Product Overview
This battery is designed for robotic equipment, supporting continuous operation and high-load industrial applications. Featuring stable high-current output, RS485 communication, and a durable metal case, it ensures reliable long-duration performance in demanding robotic environments.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 40AQ052-01 |
| Cell Model | 32140-3.2V-15Ah |
| Battery Configuration | 32140-15S3P |
| Nominal Voltage | 48V |
| Nominal Capacity | 45Ah |
| Rated Energy | 2160Wh |
| Charging Voltage | 54V |
| Standard Charging Current | 21A (0.5C) |
| Standard Discharge Current | 42A (1.0C) |
| Discharge Cut-off Voltage | 37.5V |
| Internal Resistance | ≤150mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | -25℃ ~ +55℃ |
| Discharge Temperature | -20℃ ~ +60℃ |
| Storage temperature | -20~+45℃ (Less Than 1 Month); -20~35℃ (Less Than 3 Months); -20~+25℃ (Less Than 6 Months) |
| Dimensions | (300 × 190 × 245) ±1 mm |
| Weight | ≤24kg |
| Output Type | UL Wire Output |
| Battery Case | Metal Case |
| Communication Protocol | RS485 |
| Protection System | Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection, Overtemperature Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
