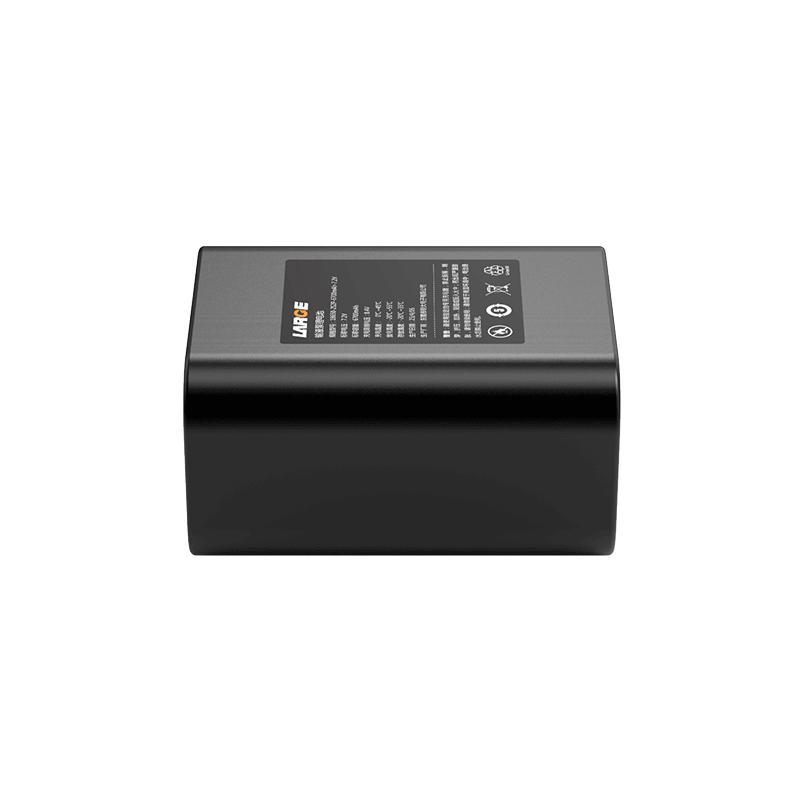

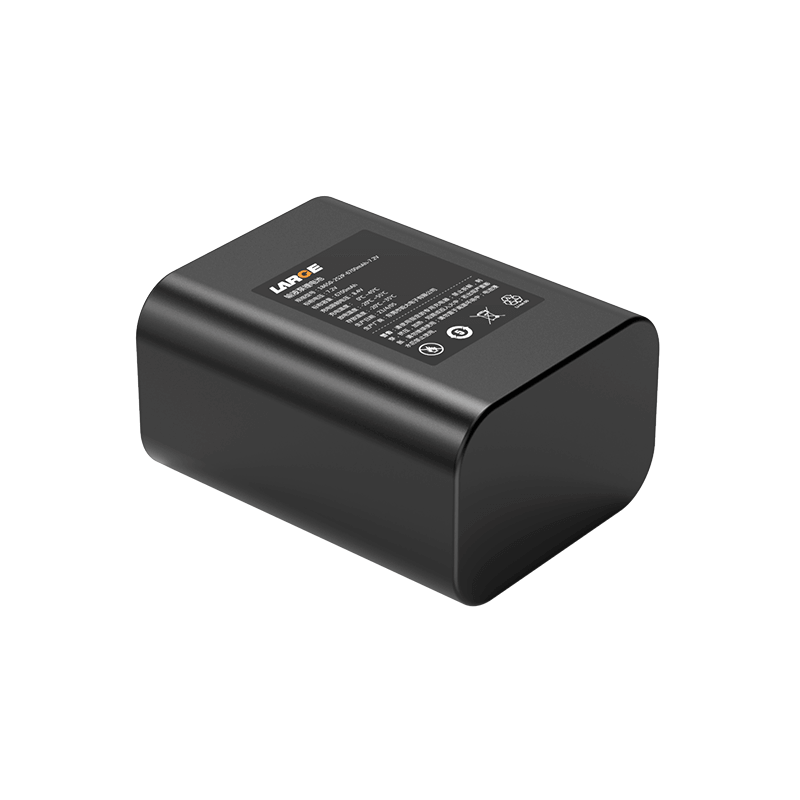

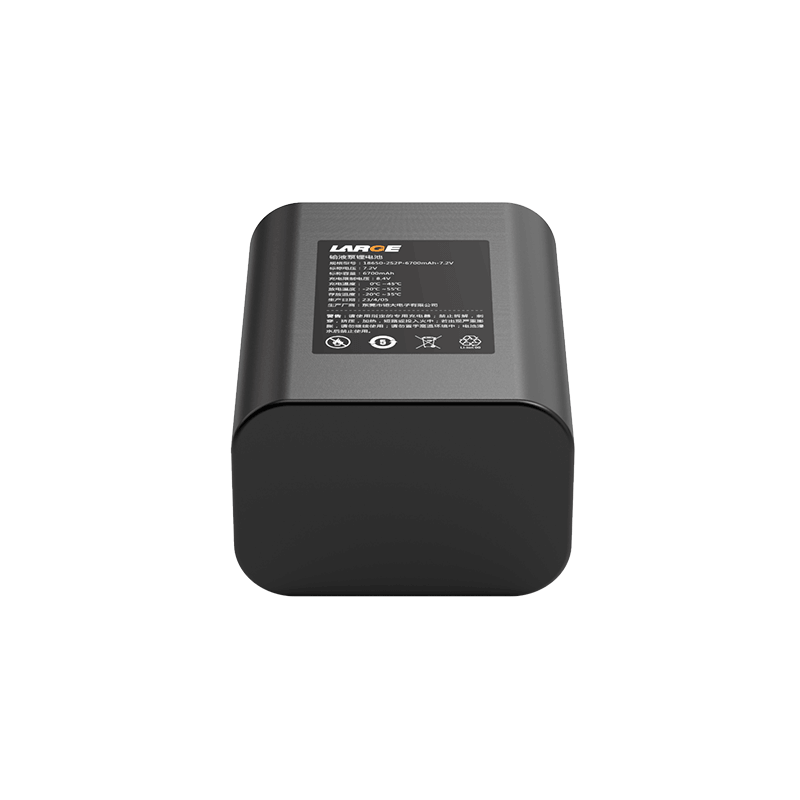

10.8V 5.0Ah Test Device 18650 Lithium-ion Battery Pack

Product number: 01WQ0096-03

Battery model: INR18650-25R8/2500mAh/3.6V

Battery specification: 18650-3S2P/5.0Ah/10.8V

Nominal voltage: 10.8V

Nominal capacity: 15.0Ah

Charging voltage: 12.6V

Charging current: ≤3.0A

Discharge current: 5.0A

Instantaneous discharge current: 10A

Discharge cut-off voltage: 8.4V

Finished internal resistance: ≤250mΩ

Battery weight: 320g

Product size: 39*57*71mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 25℃

Battery case: PVC

Intelligent lithium-ion battery protection: power calculation, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: Testing equipment, instrumentation
