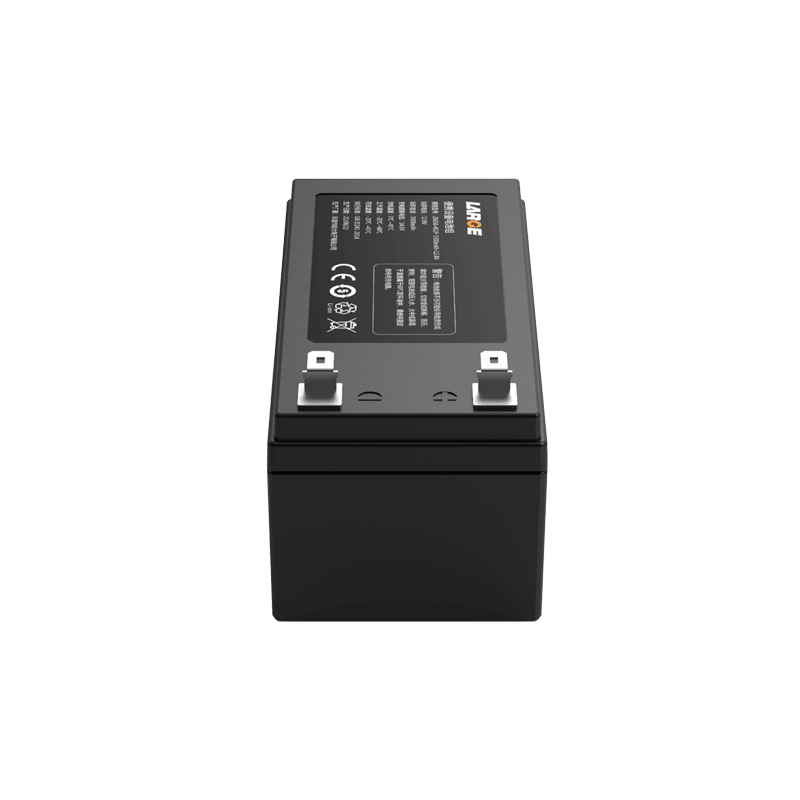

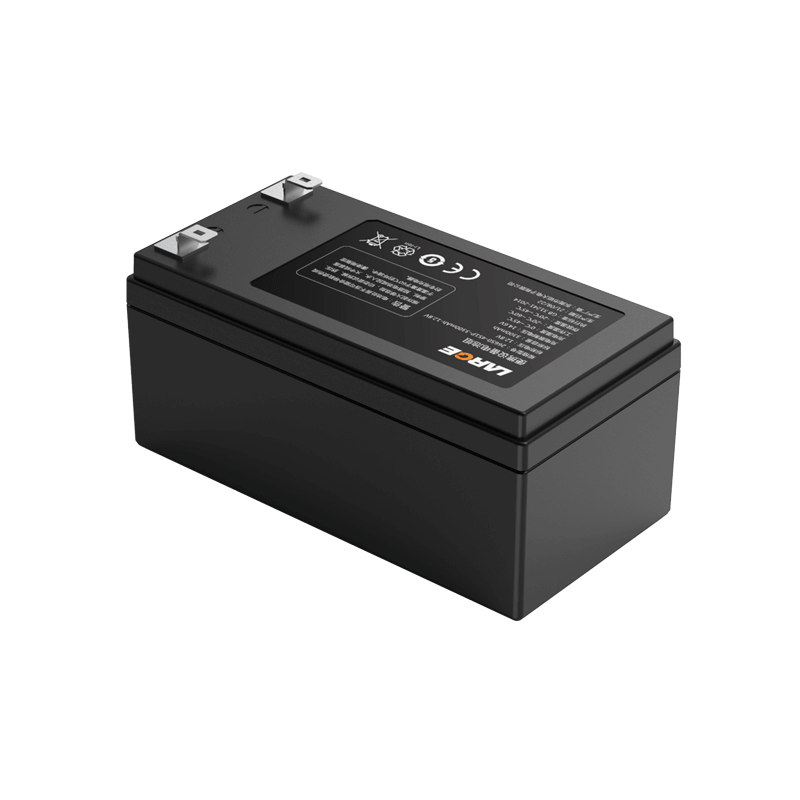

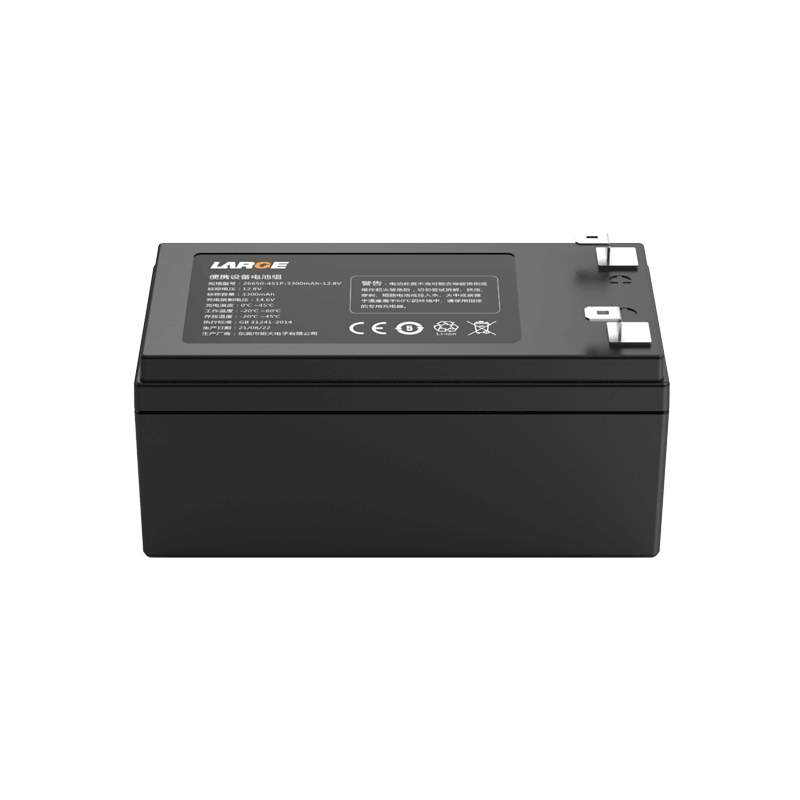

26650 12.8V 3300mAh Lithium Ion Battery for Portable Device

26650 12.8V 3300mAh Lithium Ion Battery for Portable Device
26650 12.8V 3300mAh Lithium Ion Battery for Portable Device
26650 12.8V 3300mAh Lithium Ion Battery for Portable Device
26650 12.8V 3300mAh Lithium Ion Battery for Portable Device

Product Detail

Product number: 33DZ023-01A

Cell model: 26650/3.2V/3400mAh

Specification: 26650-4S1P-3300MAH-12.8V

Nominal voltage: 12.8V

Nominal capacity: 3300mAh

Charging voltage: 14.6V

Charging current: ≤1650mA

Discharge current: ≤3300mA

Instantaneous discharge current: 7-13A

Discharge cut-off voltage: 8.8V

Product internal resistance: ≤200mΩ

Battery weight: 400G

Product size: L*W*H 134.1*67.3*59.5mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 45 ° C

Battery case: plastic case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature and so on

Application: Backup power supply


Product Features

1.According to the CQC (GB31241-2014) standard.

2.Cell: Adopt super-safe lithium iron phosphate cell which can charge at -20℃.

3.The battery pack has good safety, low temperature performance and long cycle life.

4.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.

*
*
*
