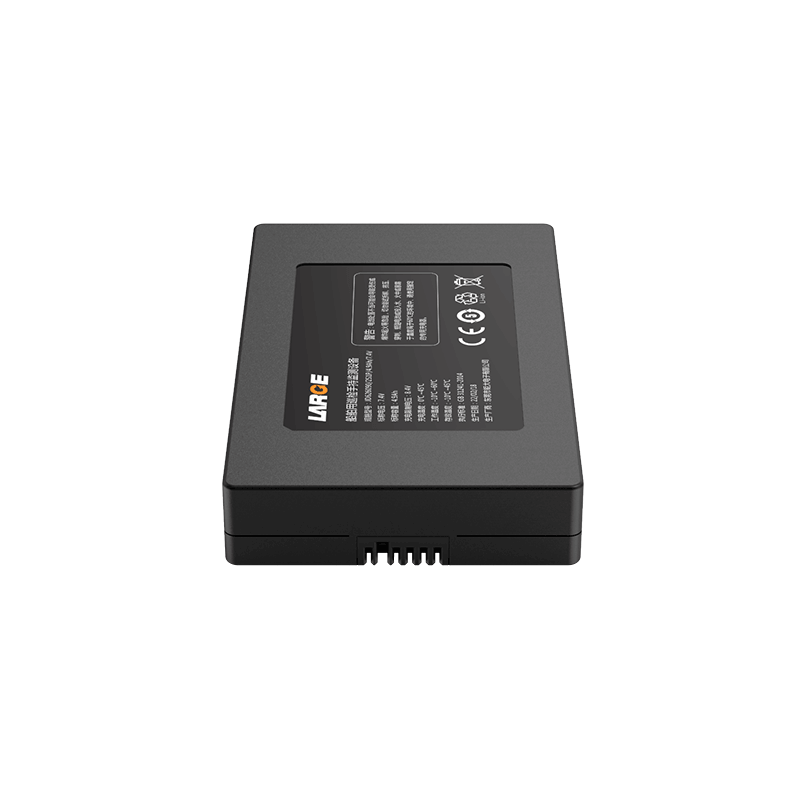

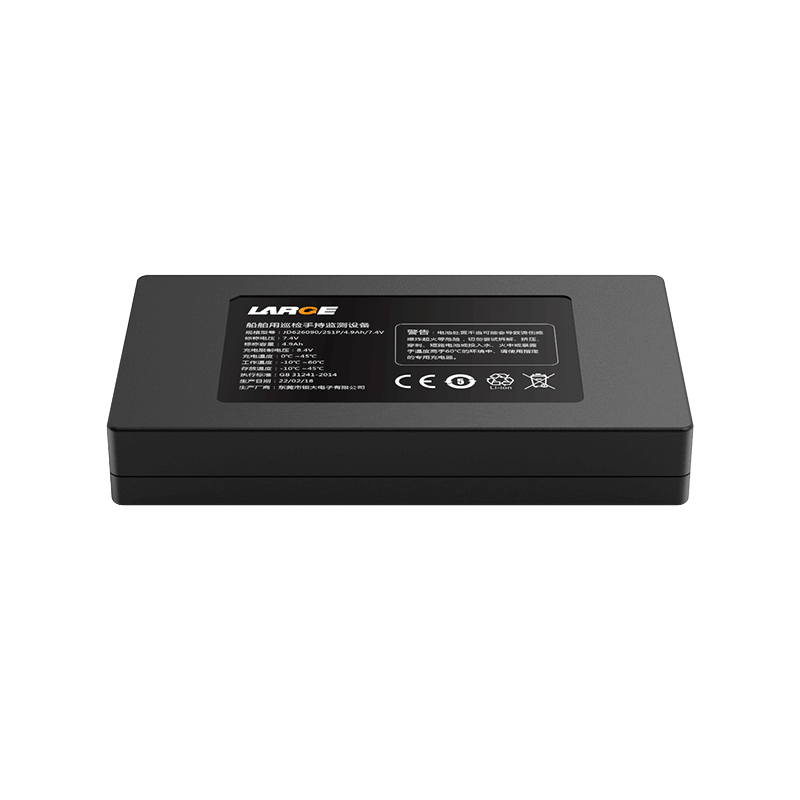

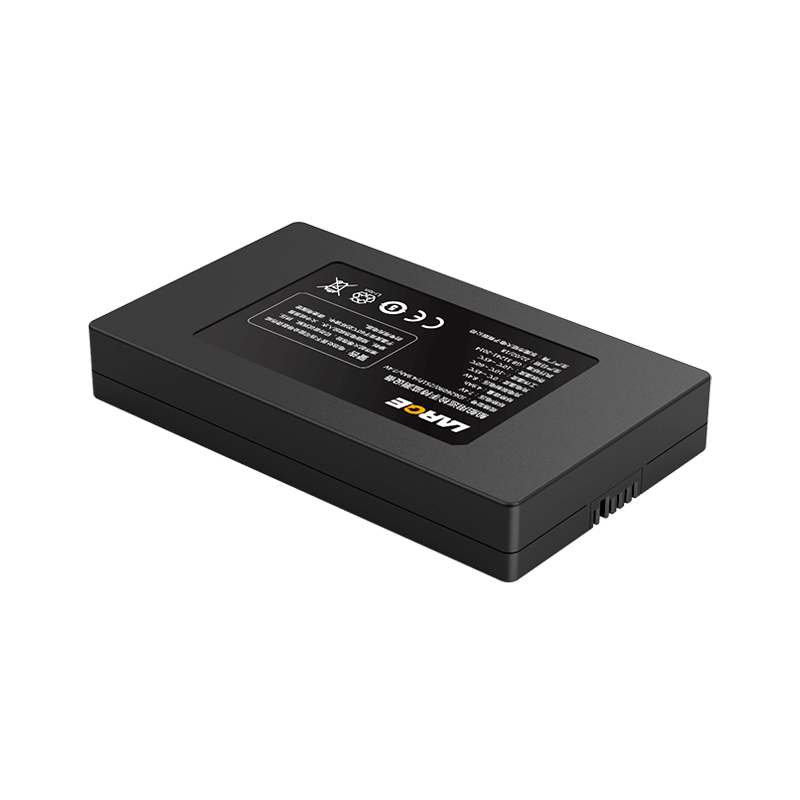

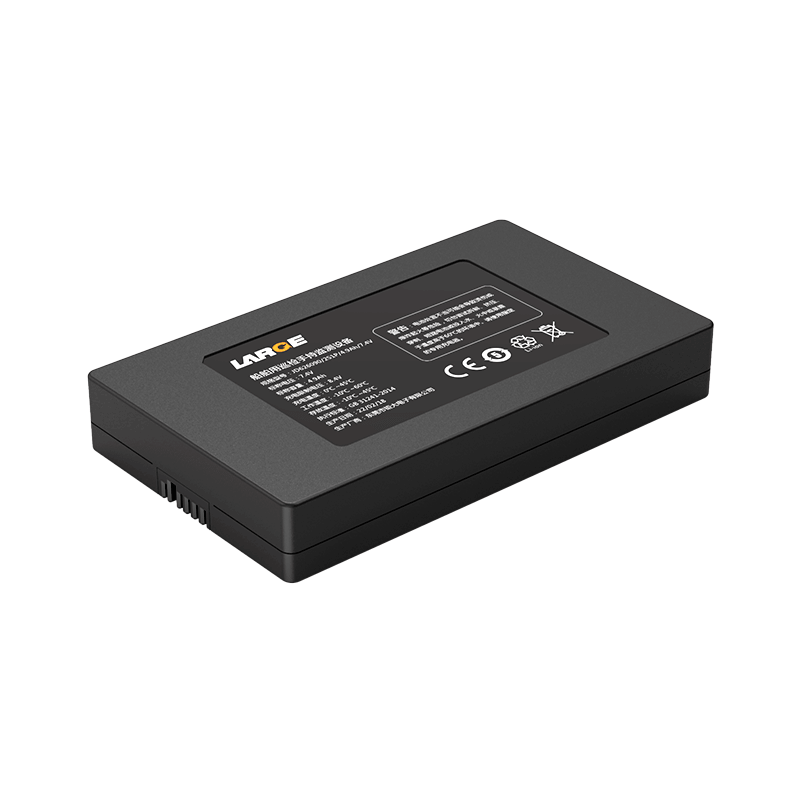

7.4V 4.9Ah Lithium Polymer Battery for Handheld Monitor

Product number: 08DQ0055-01

Cell model: JD626090-4.9AH-3.7V

Battery specification: JD626090-2S1P/ 4.9AH /7.4V

Product size: 110mm*65mm*17.5mm

Nominal voltage: 7.4V

Nominal capacity: 4.9A

Rated capacity: 4.8A

Charging voltage: 8.4V

Charging current: 2A

Discharge current: 3A

Discharge cut-off voltage: 6V

Product internal resistance: ≤180mΩ

Battery weight: 240g

Charging temperature: 0~+45℃

Discharge temperature: -10~+60℃

Storage temperature: -10~+45 ° C (less than 1 month) -10~ 35 ° C (less than 3 months); -10~+25℃ (less than 6 months)

Battery package: black plastic case;

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: Marine patrol handheld monitor

Product Features

1.The structure has up-down ultrasonic process, which is simple, reliable and easy to install.

2.I2C communication protocol

3.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

4.Battery protection management: Adopt Chinese protection chip with high stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.

5.The battery pack is safe, has good discharge performance and long cycle life.

6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
