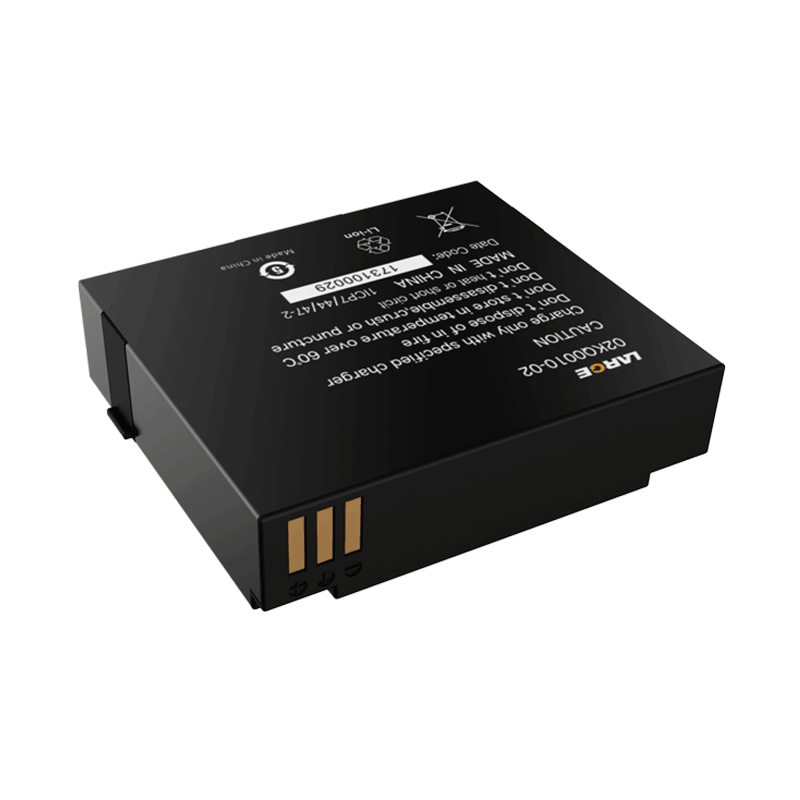

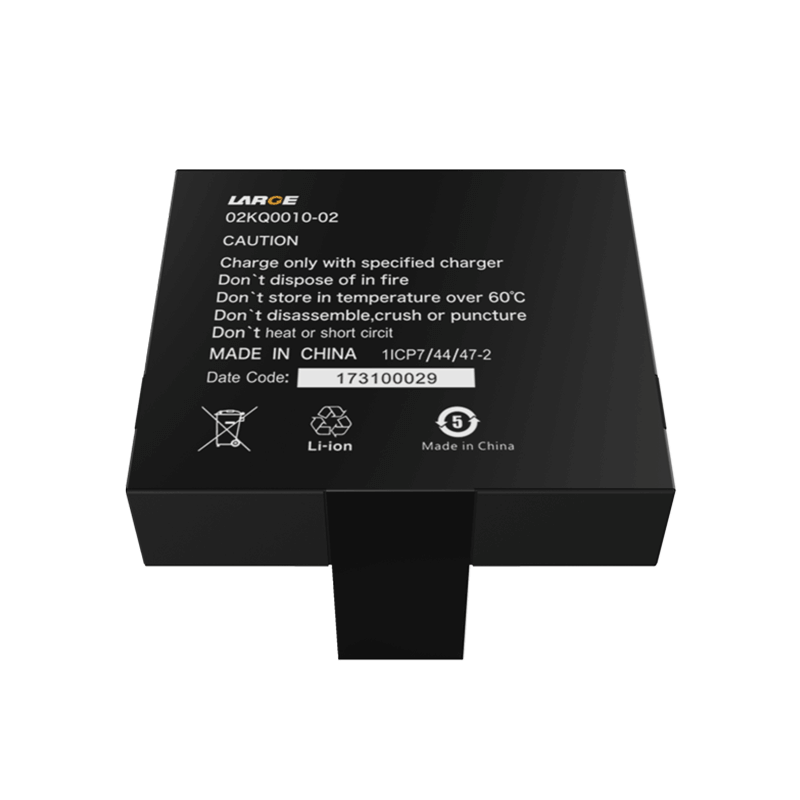

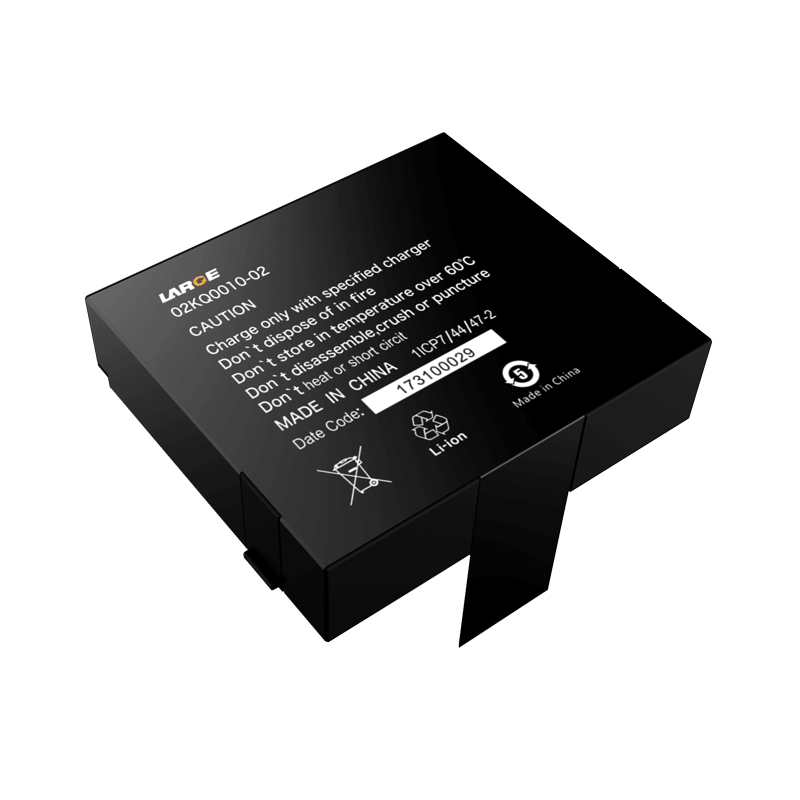

3.7V 3300mAh Lithium Polymer Battery for Industrial Handhold Devices

Product Detail

Product number: 02KQ0010-02

Cell model:644446/1650mAh/3.7V

Battery specification: 644446/1S2P/3300mAh/3.7V

Nominal voltage:3.7V

Nominal capacity:3300mAh

Charging voltage: 4.2V

Charging current: ≤1650mA

Discharging current: ≤3.3A

Instant discharging current: 5.0A for 1mS

End-off voltage: 3.0V

Internal resistance: ≤150mΩ

Battery weight: about 80g

Product dimension: 58*50*14mm

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Temperature protection: 55±2℃

Battery case: plastic frame

Lithium ion battery protection: overcharge protection, over-discharge protection, overcurrent protection, short circuit protection, etc.

Application field: industrial handheld device, etc.

*
*
*
