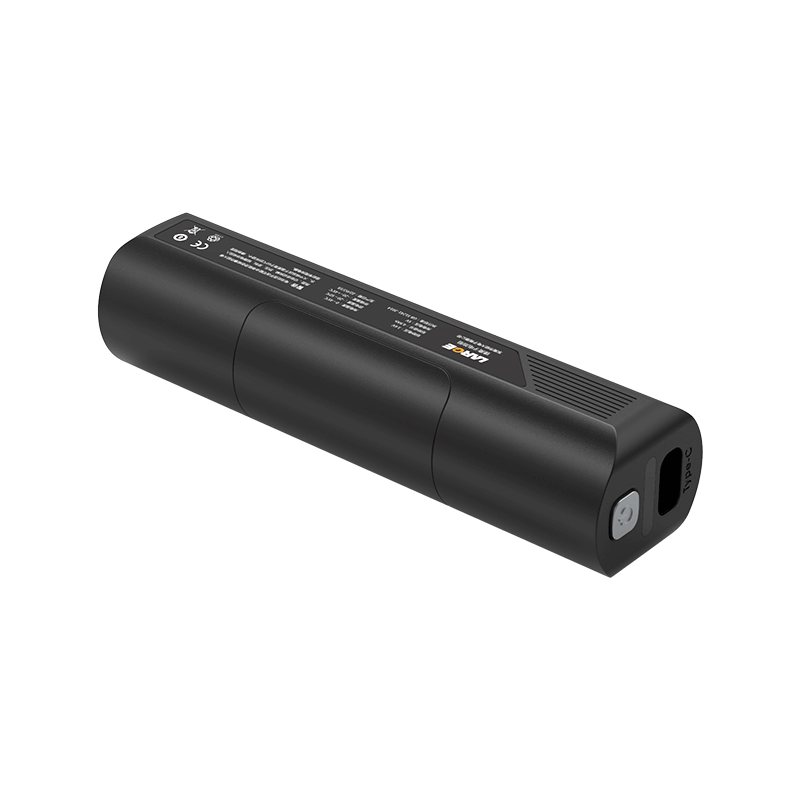

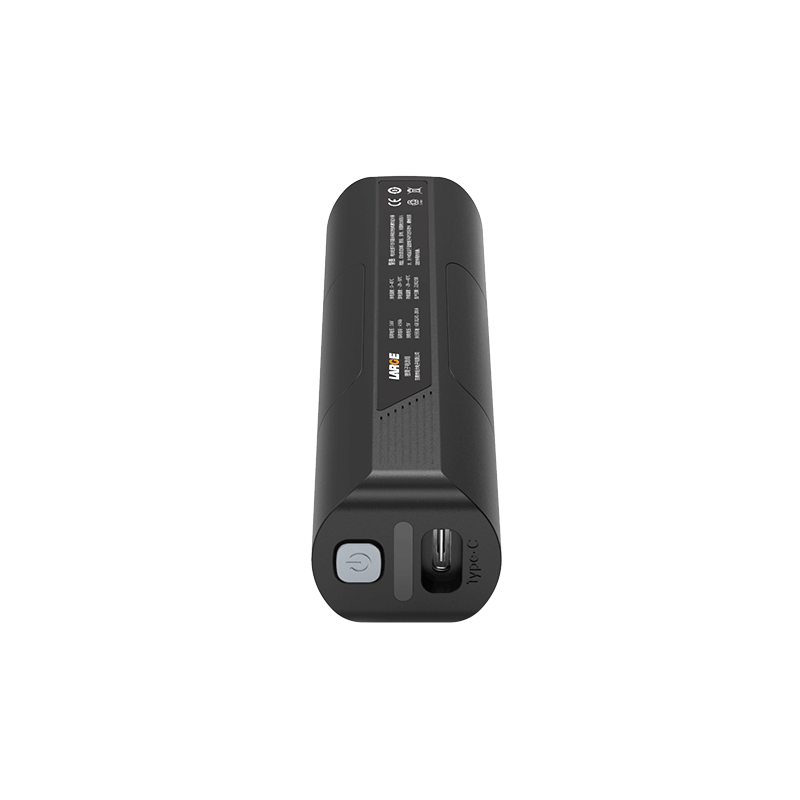

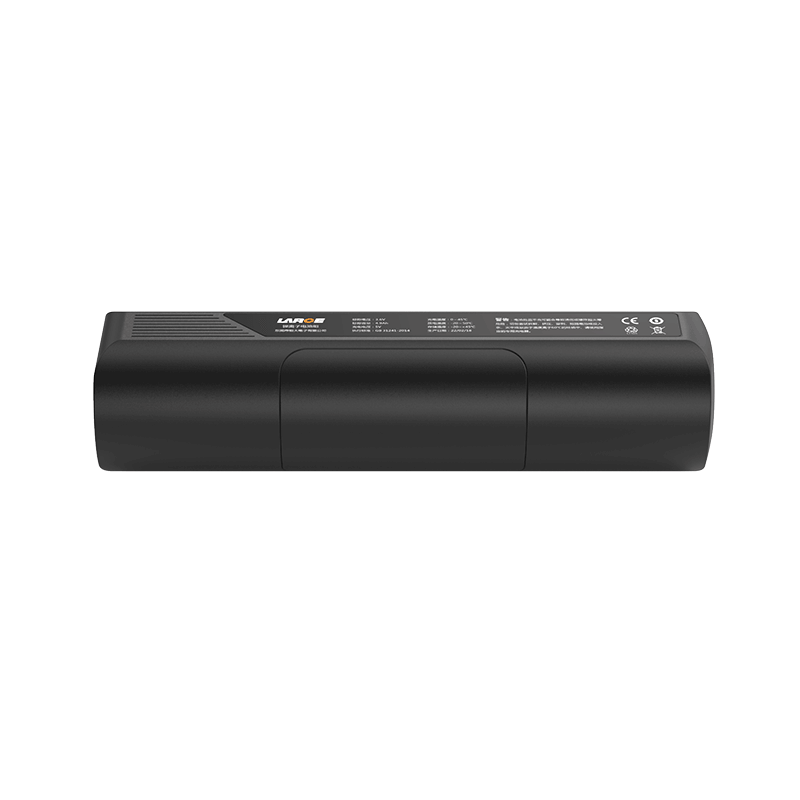

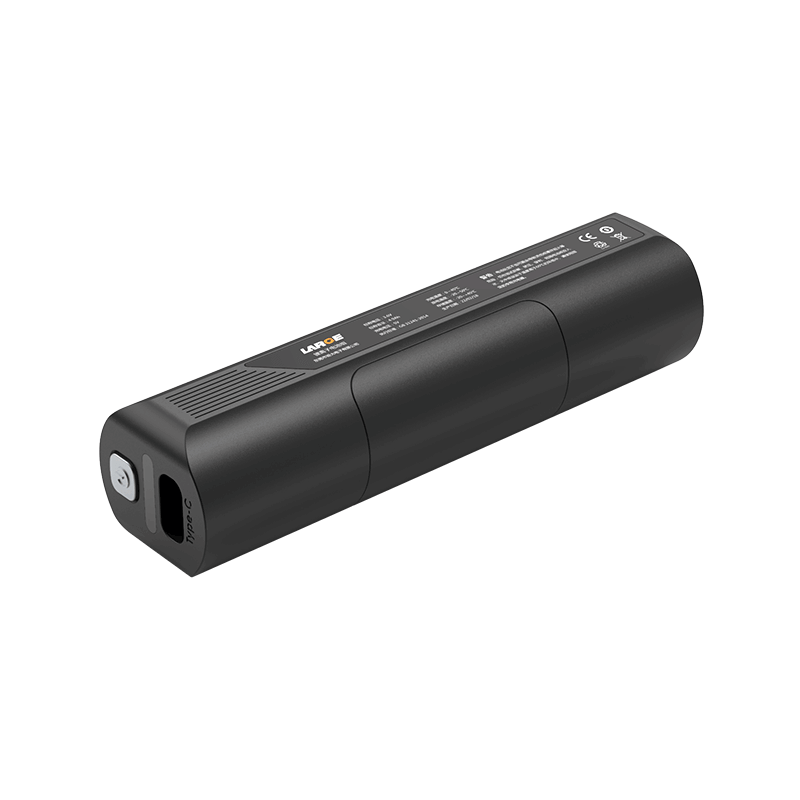

21700 3.6V 5Ah Lithium-ion Battery Pack

21700 3.6V 5Ah Lithium-ion Battery Pack
21700 3.6V 5Ah Lithium-ion Battery Pack
21700 3.6V 5Ah Lithium-ion Battery Pack
21700 3.6V 5Ah Lithium-ion Battery Pack

Product Detail

Product number: 36AQ517-12

Cell model: 21700-5.0AH -3.6V

Battery specification: 21700-1S1P-5.0AH-3.6V

Product dimension: 82*27*30mm

Nominal voltage: 3.6V

Nominal capacity: 5Ah

Charging voltage: 5V

Charging current: 2A

Discharge current: 2A

Discharge cut-off voltage: 3V

Finished internal resistance: ≤ 180mΩ

Battery weight: 95g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 50℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)

Battery encapsulation: plastic case, screw fixed

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: Device


Product Features

1.Plastic case, secured by screws, is simple, reliable, and easy to install.

2.Integrated scheme of charging and output voltage regulation, intelligent logic UI control, precise power display

3.Output terminal: use the national standard UL wire output mode to increase the conductivity reliability;

4.Battery protection management: Use imported well-known protection chip, with high stability, nice precision monitoring, precision control, to eliminate security risks.

5.The battery pack has good safety, nice discharge performance, and long cycle life;

6.The battery pack has long cycle life, in line with the value of low carbon, energy saving, environmental protection;

*
*
*
