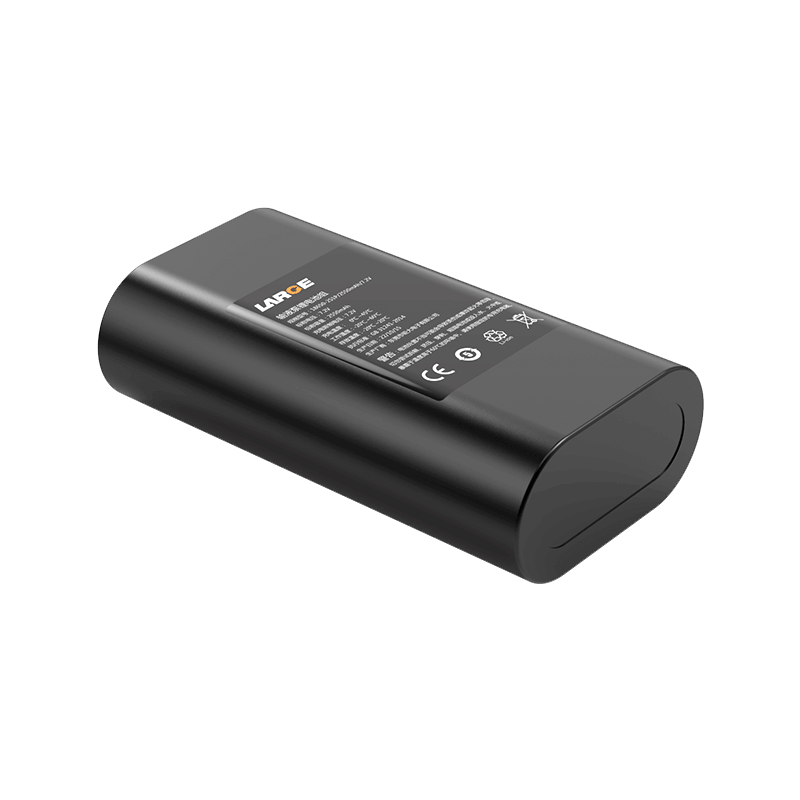

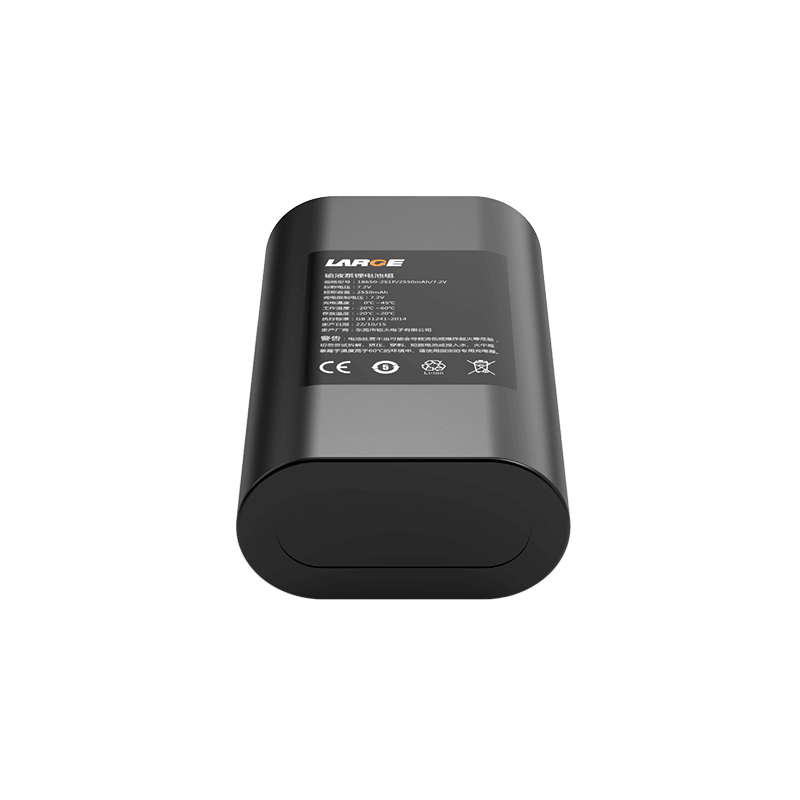

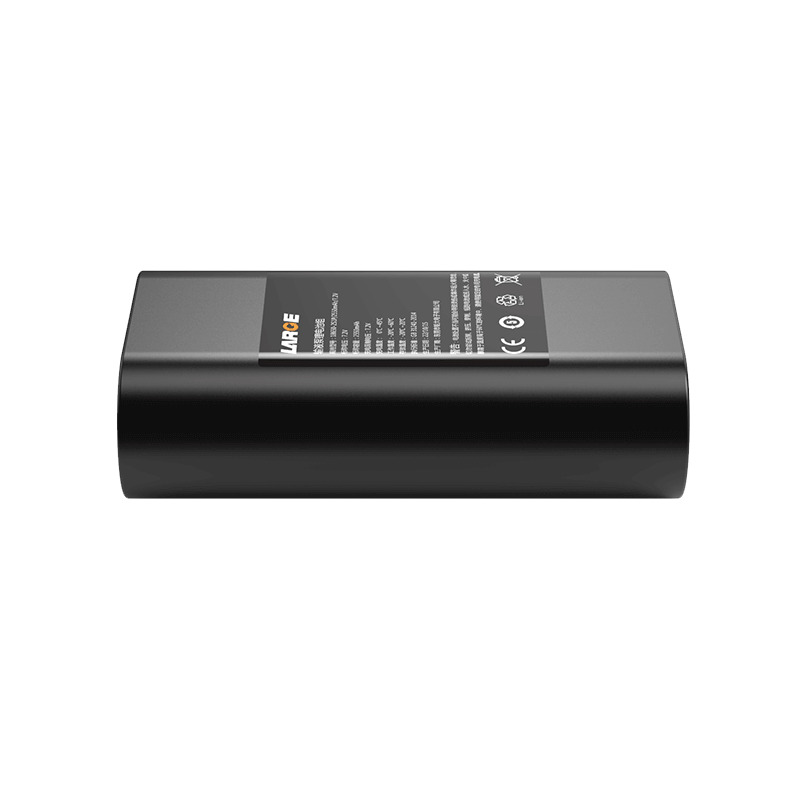

18650 7.2V 2550mAh Infusion Pump Lithium-ion Battery Pack

18650 7.2V 2550mAh Infusion Pump Lithium-ion Battery Pack
18650 7.2V 2550mAh Infusion Pump Lithium-ion Battery Pack
18650 7.2V 2550mAh Infusion Pump Lithium-ion Battery Pack
18650 7.2V 2550mAh Infusion Pump Lithium-ion Battery Pack

Product Detail

Project number: 08DQ0082-18

Cell model: H18650CQ/2550mAh/3.6V

Battery specification: 18650-2S1P/2550mAh/7.2V

Nominal voltage: 7.2V

Nominal capacity: 2550mAh

Charging current: ≤3.35A

Discharge current: 3.0A

Instantaneous discharge current: 6A

Discharge cut-off voltage: 5.6V

Internal resistance of finished product: ≤230mΩ

Battery weight: 100g

Product size: 20*37.5*67mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 20 ° C

Battery case: /

Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Infusion pump

*
*
*
