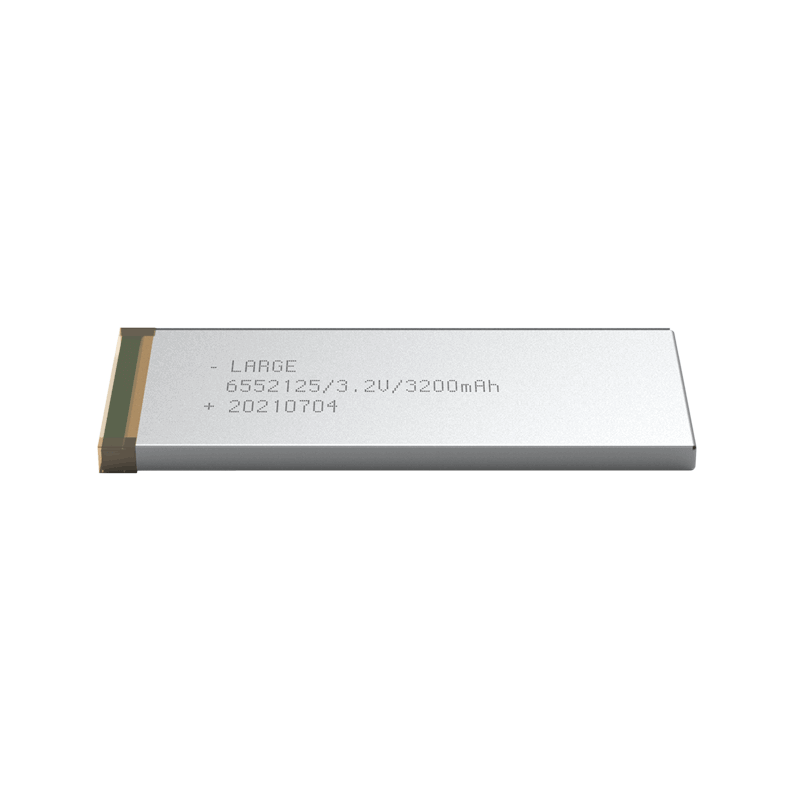

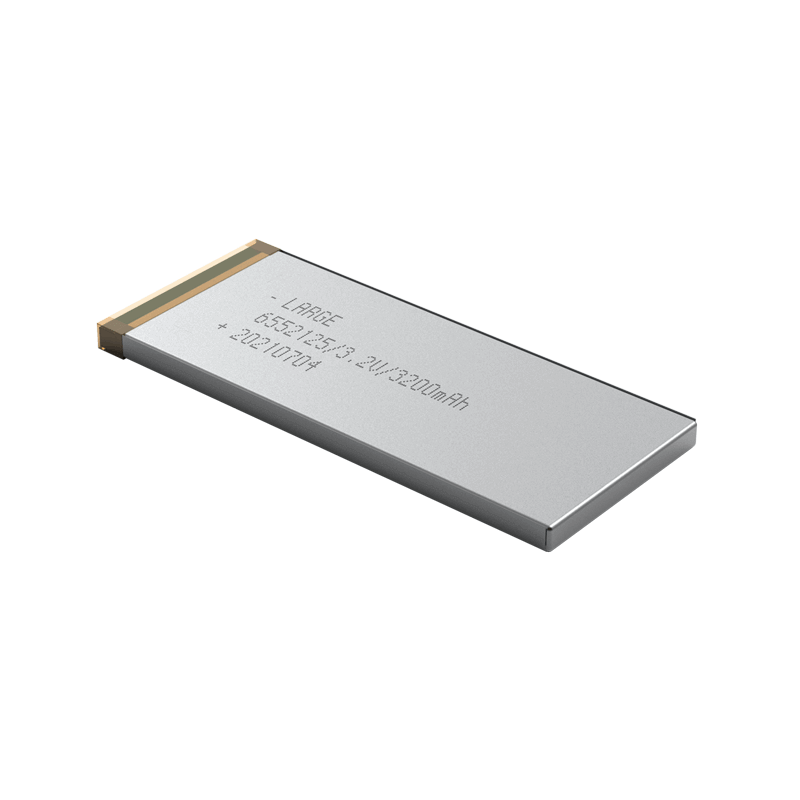

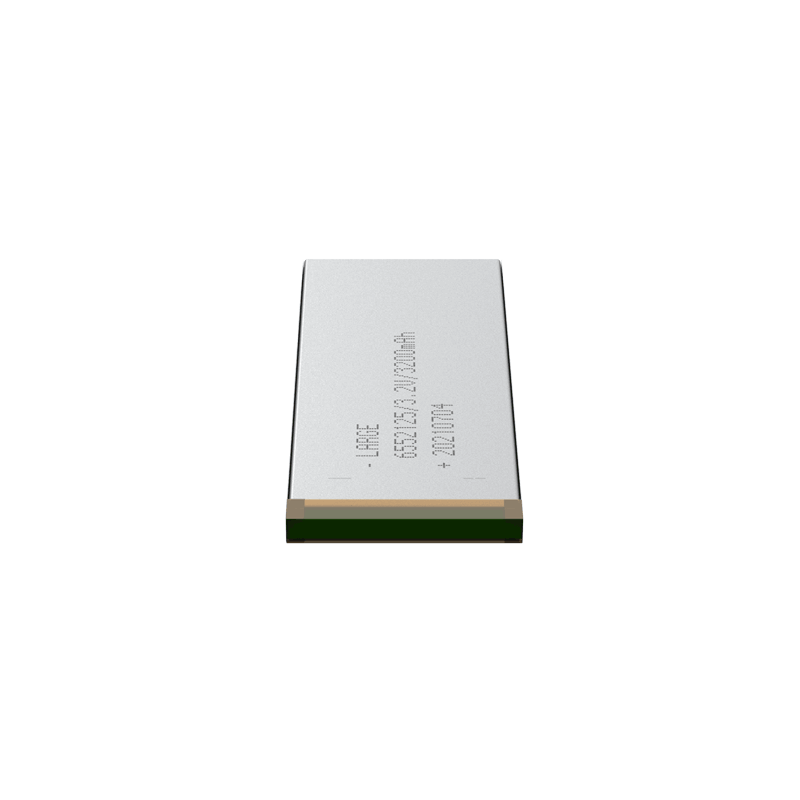

6252125 3.2V 3200mAh LiFePO4 Battery for Backup Power Battery

6252125 3.2V 3200mAh LiFePO4 Battery for Backup Power Battery
6252125 3.2V 3200mAh LiFePO4 Battery for Backup Power Battery
6252125 3.2V 3200mAh LiFePO4 Battery for Backup Power Battery
6252125 3.2V 3200mAh LiFePO4 Battery for Backup Power Battery

Product Detail

Product number:37DZ076-02

Cell model: 6252125/3.2V/3200mAh

Battery specification: 6552125-1S1P/3.2V/3200mAh

Nominal voltage: 3.2V

Nominal capacity: 3200mAh

Charging voltage: 3.65V

Charging current: ≤ 2.5a

Discharge current: 3A

Instantaneous discharge current: 5-12A

Discharge cut-off voltage: 2.0V

Finished product internal resistance: ≤110mΩ

Battery weight: 78G

Product size: 6.5*54*132mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 45 ° C

Battery shell: Polymer battery plus board out terminal wire

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: access control power battery

*
*
*
