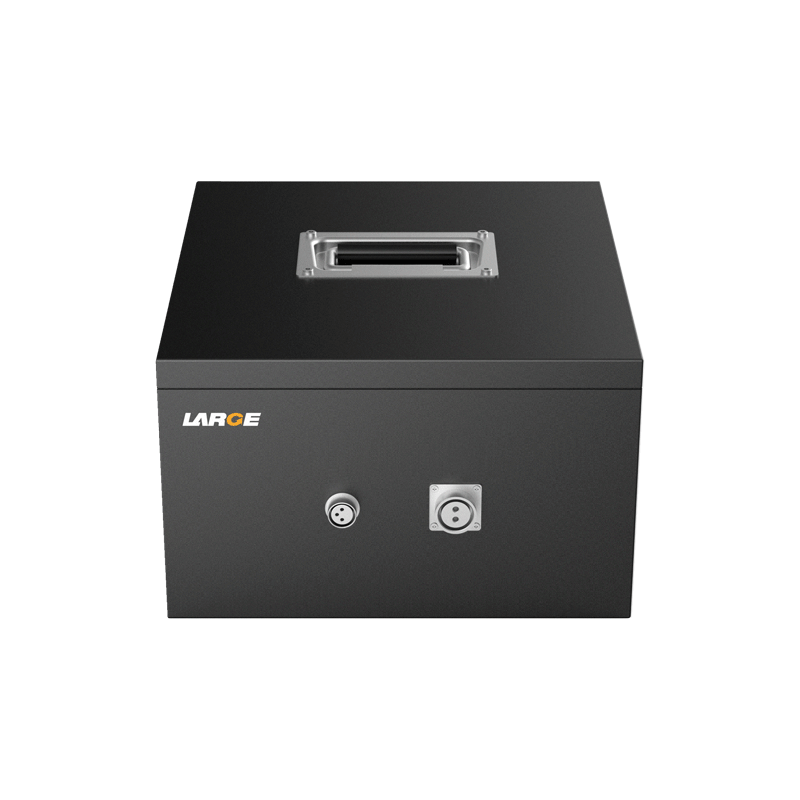

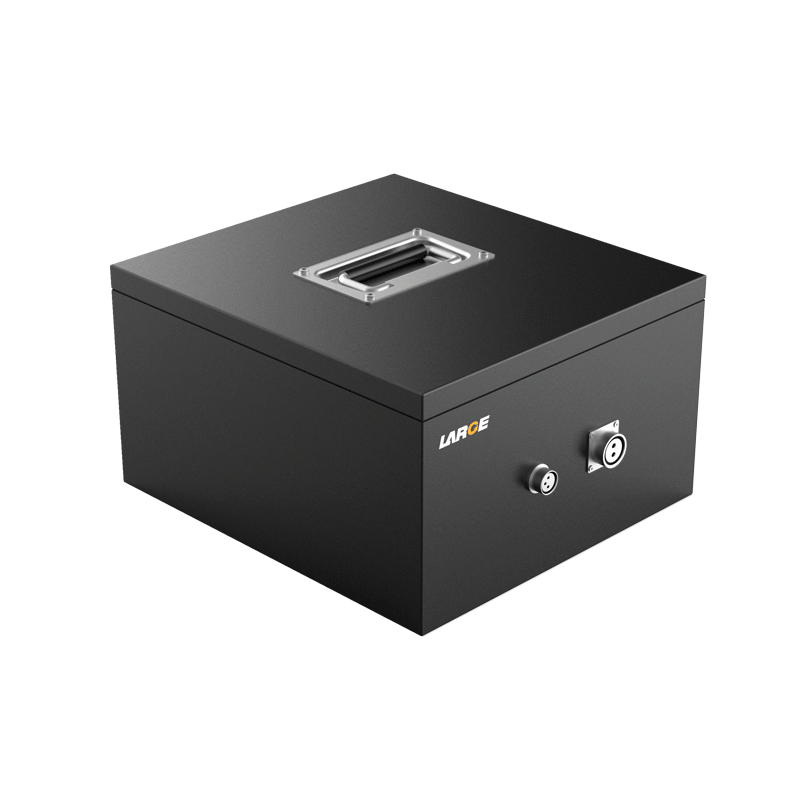

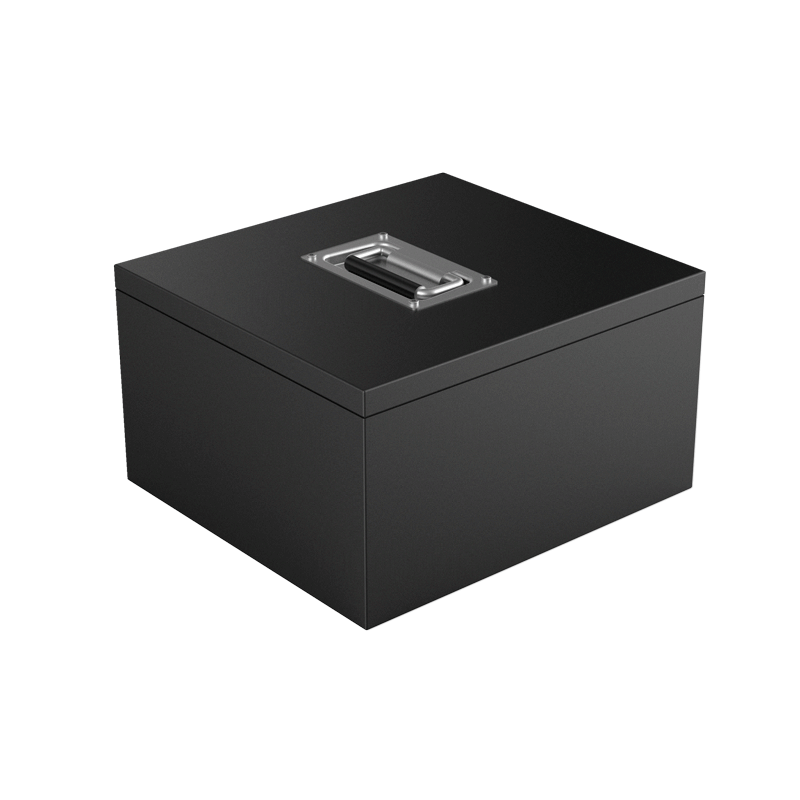

32650 24V 100Ah LiFePO4 Battery Pack
Product Number:
03EQ123-01
Nominal voltage:
24V
Nominal capacity:
96Ah
Battery Configuration:
132650-8S16P
Dimension:
350×320×180mm
Application:
Emission Instrument
Aviation connector, metal enclosure protection, high power output capability
Product Overview
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 03EQ123-01 |
| Cell Model | 132650/3.2V/6Ah |
| Battery Configuration | 132650-8S16P |
| Nominal Voltage | 24V |
| Nominal Capacity | 96Ah |
| Rated Energy | 2304Wh |
| Charging Voltage | 29.2V |
| Discharge Cut-off Voltage | 18.4V |
| Standard Charging Current | ≤20A |
| Standard Discharge Current | 10A |
| Max Continuous Discharge Current | 50A |
| Internal Resistance | ≤150mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage Temperature | -20～60℃ |
| Dimensions | 350×320×180mm（Max） |
| Weight | 23.0kg |
| Battery Case | Metal Sheet Housing |
| Protection System | Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection, Temperature Protection |
Application Background
This battery solution is specially designed for marine monitoring and water surveillance equipment, suitable for ocean environmental observation, remote data acquisition, and offshore security deployment.
The system requires long-term stable operation under high humidity, salt spray, and temperature variations, with high demands on power reliability, protection performance, and environmental adaptability.
Project Challenges
Marine equipment requires continuous operation for over 24 hours
High salt spray and humidity demand strong reliability
Remote monitoring systems require stable power and data support
Harsh marine conditions require strong structural durability
Customized Battery Solution
Metal sheet housing: enhanced impact resistance and environmental protection
Aviation quick connector: improves connection reliability and maintenance efficiency
Smart BMS system: integrated voltage, current, and temperature protection
Wide-temperature design: stable operation from -20℃ to 60℃
Application Results
Ensures long-term stable operation of marine monitoring systems
Improves power reliability in harsh marine environments
Enhances anti-interference and environmental adaptability
Extends service life of offshore monitoring equipment
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
