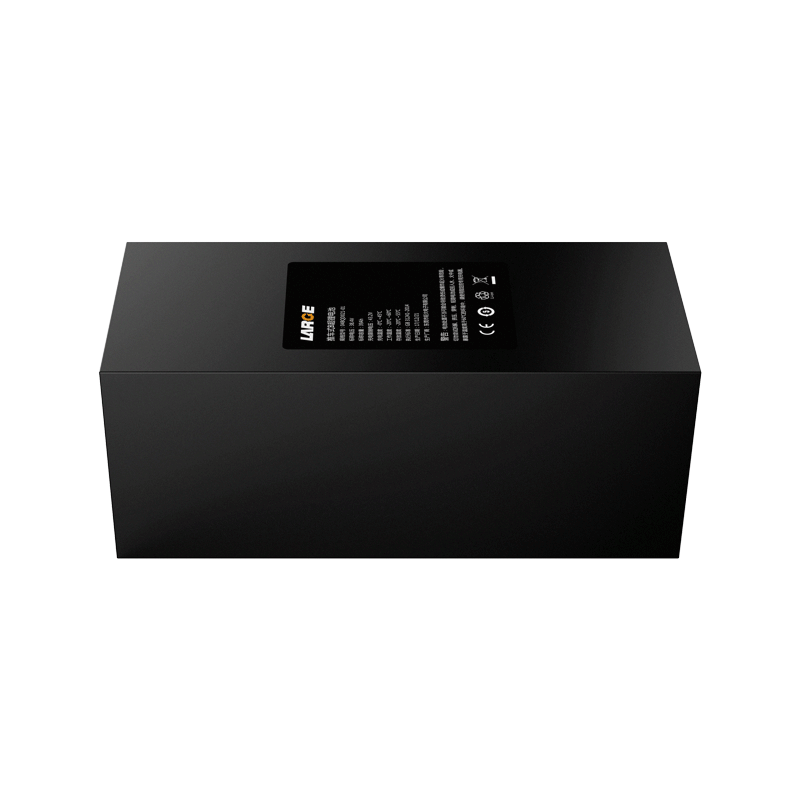

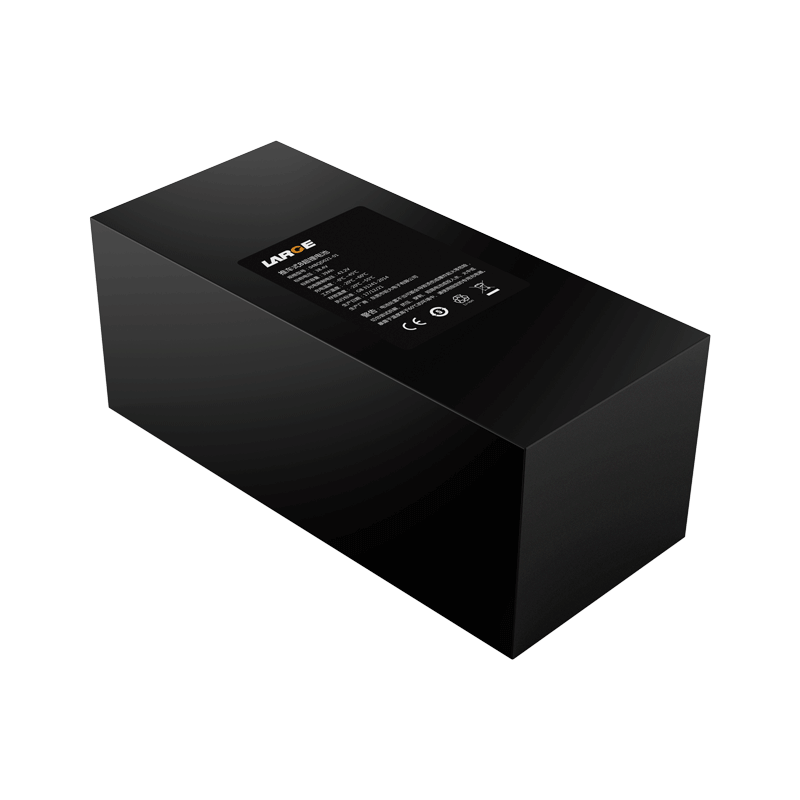

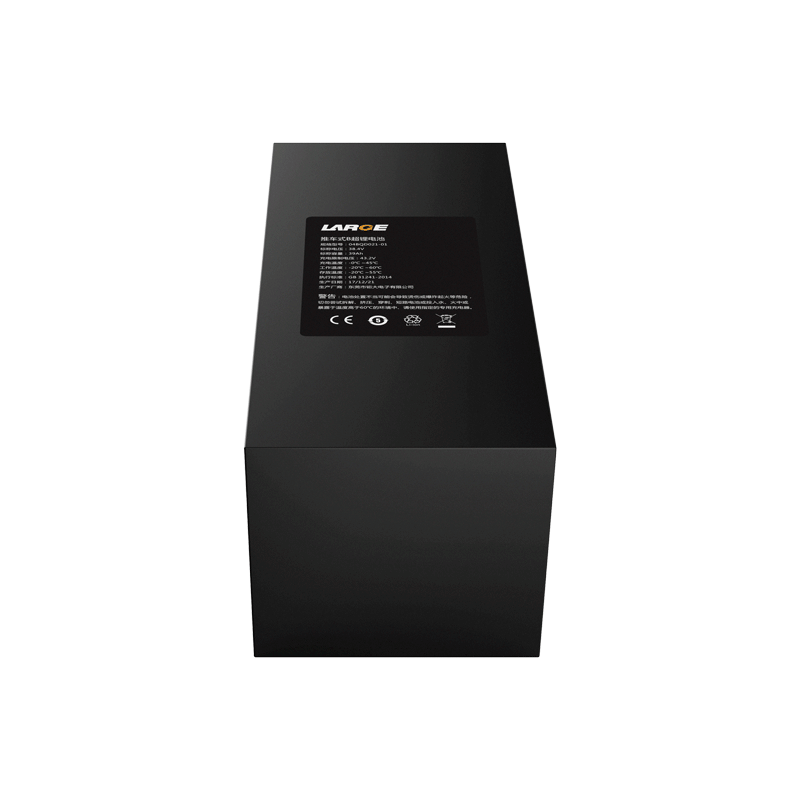

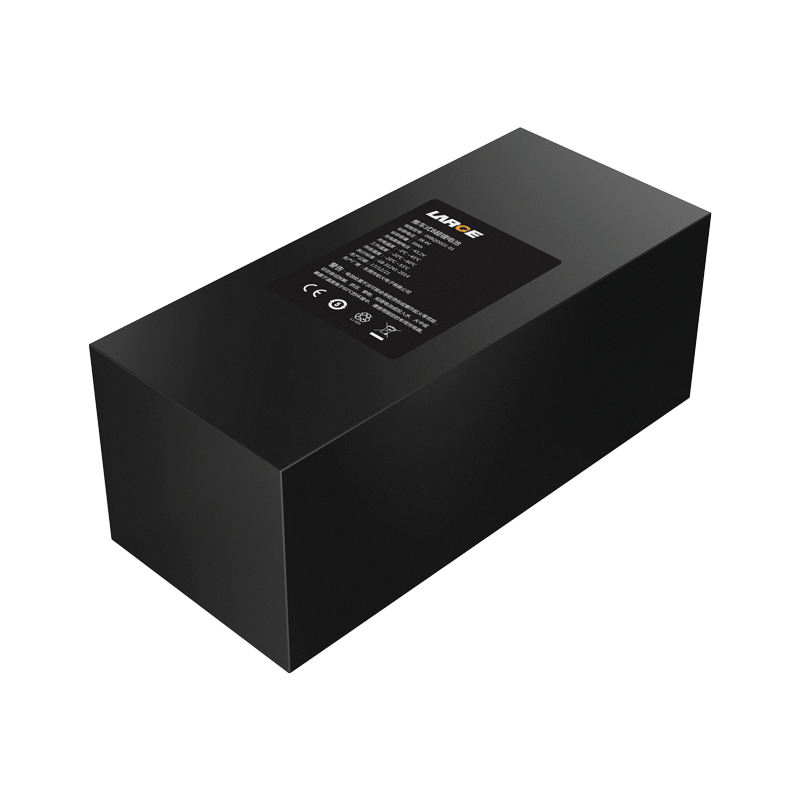

26650 38.4V 39Ah Lifepo4 battery for transportable B supersonic diagnostic set

26650 38.4V 39Ah Lifepo4 battery for transportable B supersonic diagnostic set
26650 38.4V 39Ah Lifepo4 battery for transportable B supersonic diagnostic set
26650 38.4V 39Ah Lifepo4 battery for transportable B supersonic diagnostic set
26650 38.4V 39Ah Lifepo4 battery for transportable B supersonic diagnostic set

Product Detail

Product number: 04BQD021-01

Cell model:26650/3.2V/3.0Ah

Battery specification: 26650-12S13P/38.4/39Ah

Nominal voltage:38.4V

Nominal capacity:39Ah

Charging voltage: 43.2V

Charging current: ≤5A

Discharging current: 5A

Instant discharging current: 10A

End-off voltage: 30.0V

Internal resistance: ≤100mΩ

Battery weight: 7500g

Product dimension: 390*372*155mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Battery case: blue PVC

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection, overcurrent protection, etc.

Application: cart B supersonic diagnostic set, testing instrument, etc.

*
*
*
