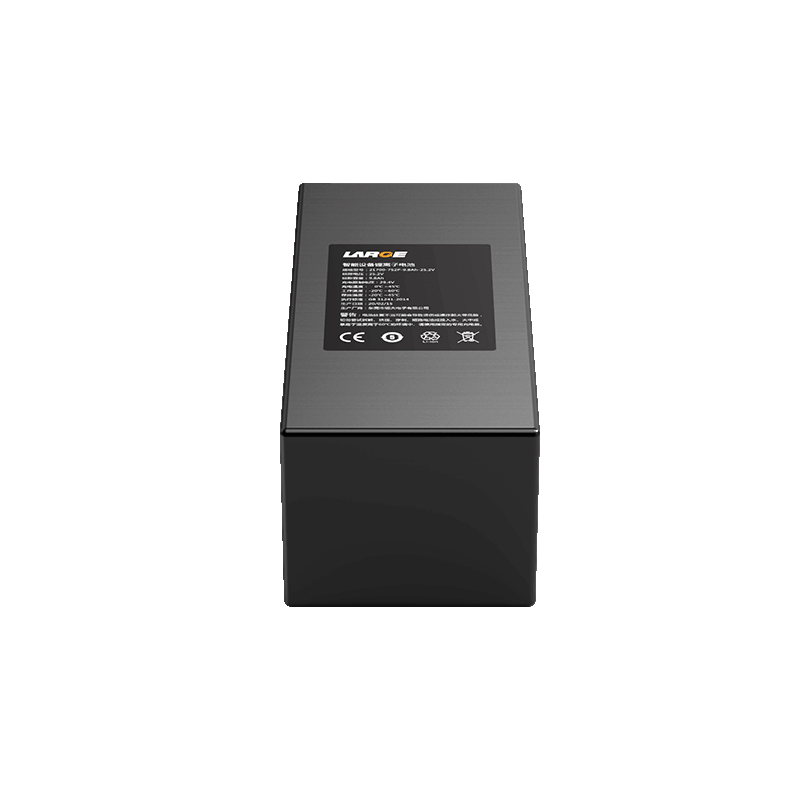

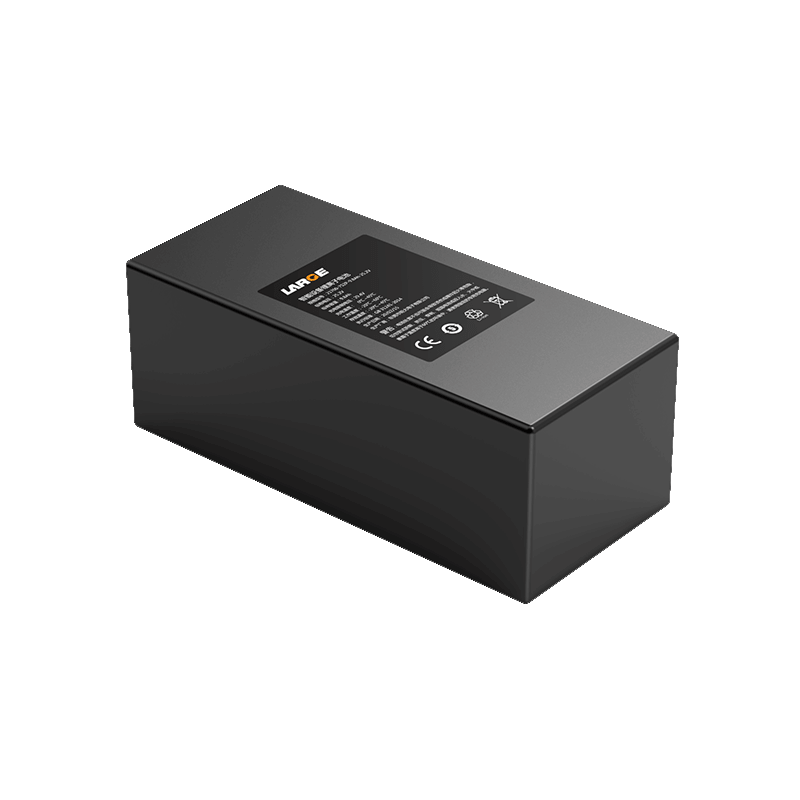

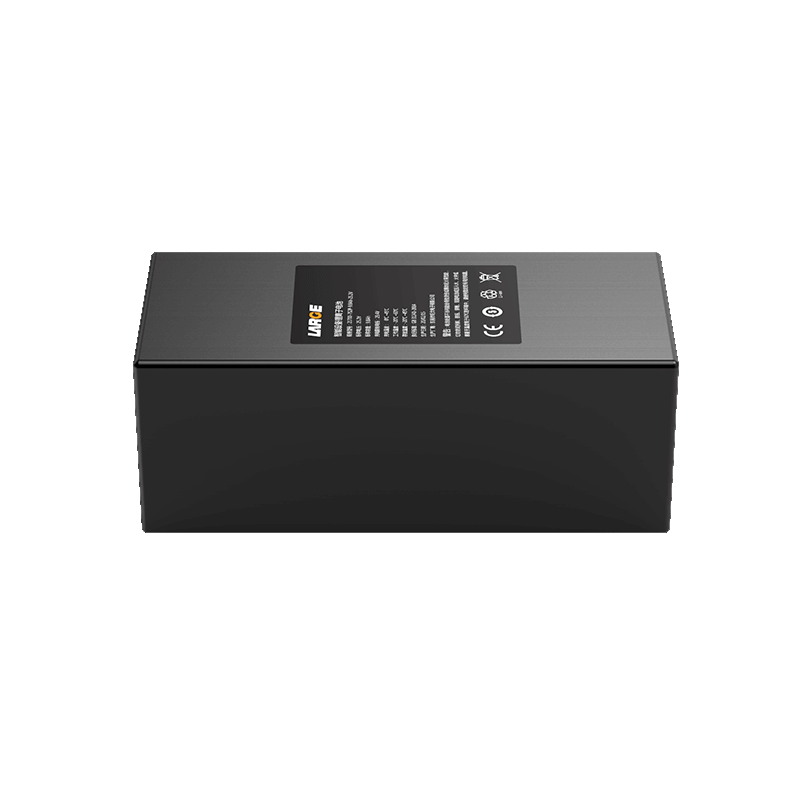

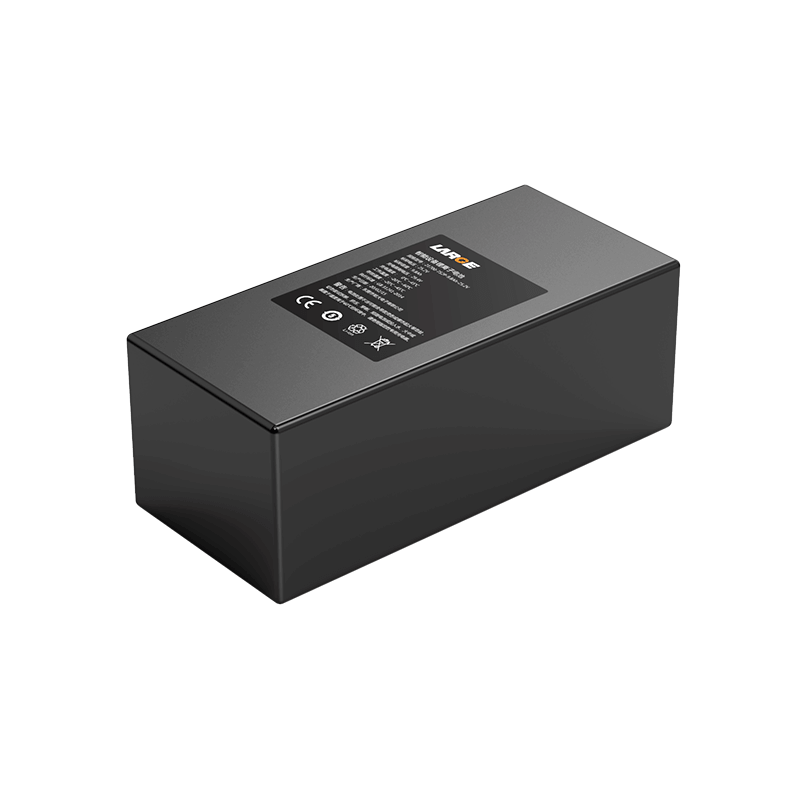

21700 25.2V 9.8Ah Samsung Battery for Intelligent Devices

21700 25.2V 9.8Ah Samsung Battery for Intelligent Devices
21700 25.2V 9.8Ah Samsung Battery for Intelligent Devices
21700 25.2V 9.8Ah Samsung Battery for Intelligent Devices
21700 25.2V 9.8Ah Samsung Battery for Intelligent Devices

Product Detail

Product number: 08DQ0056-01

Cell model: 21700-4900MAH-3.60V

Battery specifications: 21700-7S2P-9.8AH-25.2V

Product size: 168mm*78mm*63mm

Nominal voltage: 25.2V

Nominal capacity: 9.8A

Rated capacity: 9.6A

Charging voltage: 29.4V

Charging current: 5A

Discharge current: 6A

Discharge cut-off voltage: 17.5V

Product internal resistance: ≤180mΩ

Battery weight: 1100g

Charging temperature: 0~+45℃

Discharge temperature: -20~+60℃

Storage temperature: -20~+45 ° C (less than 1 month); -20 ~ 35 ℃(less than 3 months); -10~+25℃ (less than 12 months)

Battery case: PVC;

Communication management: RS485 communication protocol

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: Intelligent devices

*
*
*
