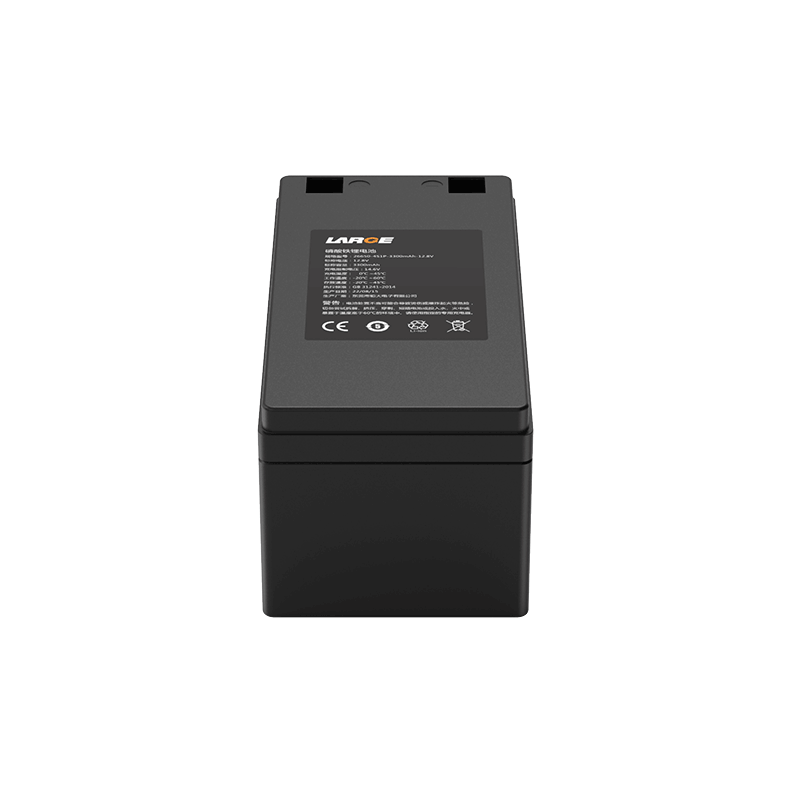

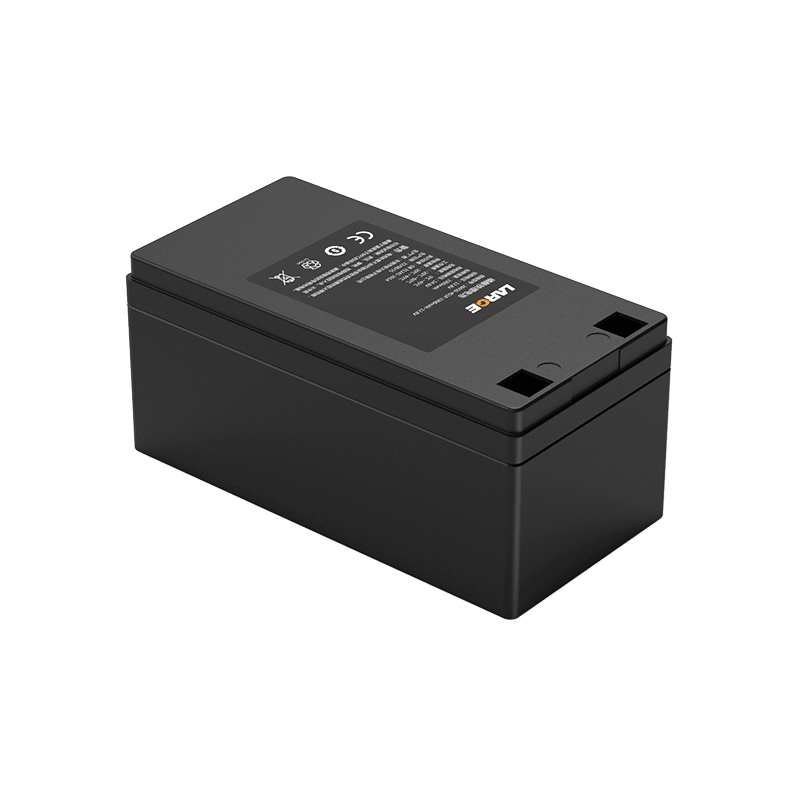

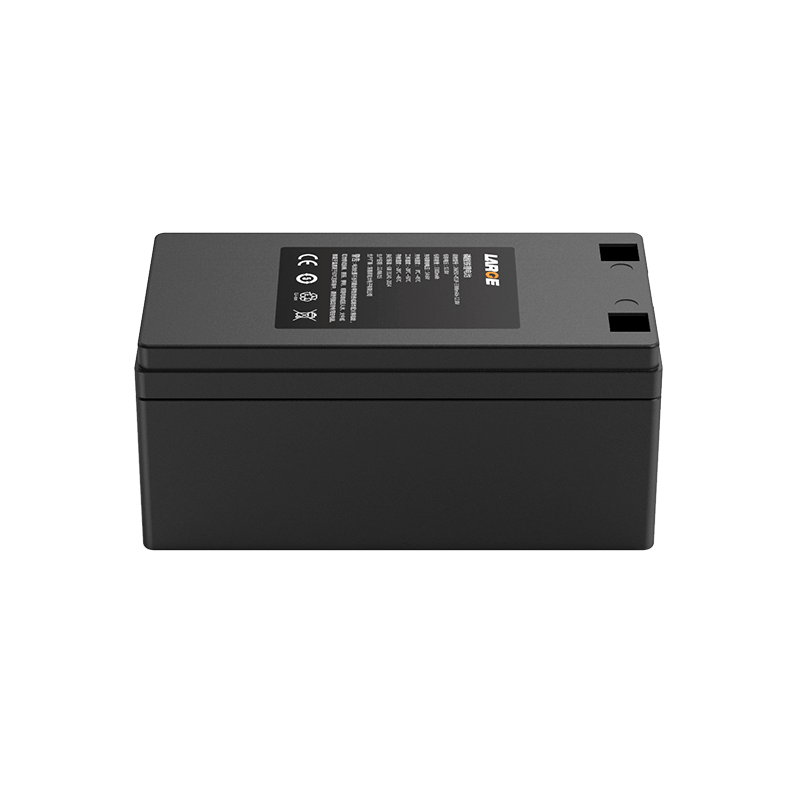

26650 12.8V 3300mAh LiFePO4 Battery Backup Power for Medical Portable Devices

26650 12.8V 3300mAh LiFePO4 Battery Backup Power for Medical Portable Devices
26650 12.8V 3300mAh LiFePO4 Battery Backup Power for Medical Portable Devices
26650 12.8V 3300mAh LiFePO4 Battery Backup Power for Medical Portable Devices
26650 12.8V 3300mAh LiFePO4 Battery Backup Power for Medical Portable Devices

Product Detail

Product number: 33DZ023-01

Cell type: 26650/3.2V/3400mAh

Battery specification: 26650-4S1P-3300mAh-12.8V

Nominal voltage: 12.8V

Nominal capacity: 3300mAh

Charging voltage: 14.6V

Charging current: ≤1650mA

Discharge current: ≤3300mA

Instant discharge current: 6-13A

Discharge cut-off voltage: 8.8V

Internal resistance of finished product: ≤200mΩ

Battery weight: 400G

Product size: 135*68*60mm (L*W*H)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 45 ° C

Battery case: plastic case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature, etc

Application: Backup power supply

*
*
*
*
*
