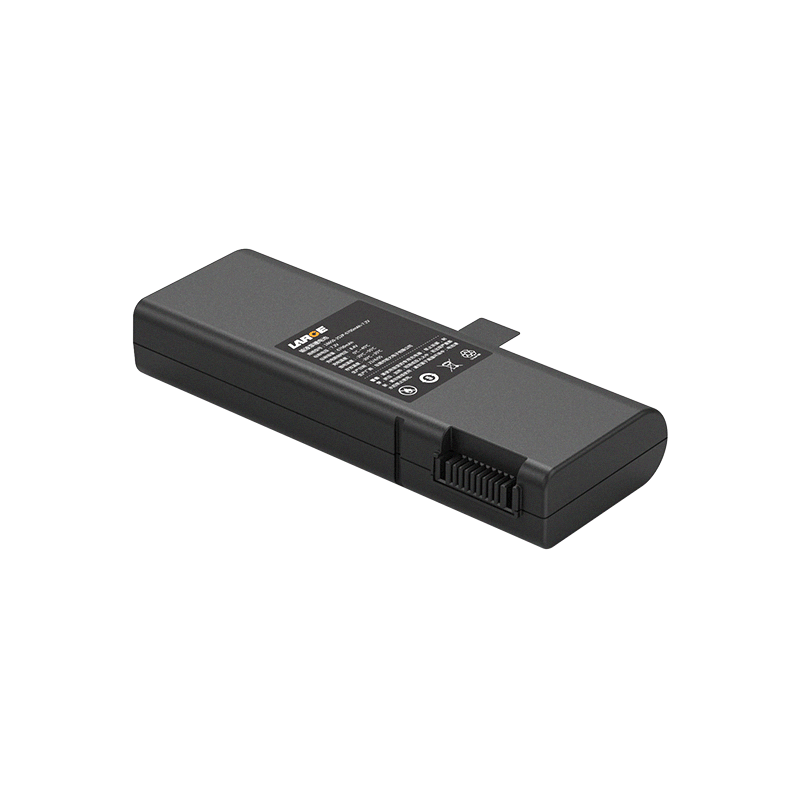

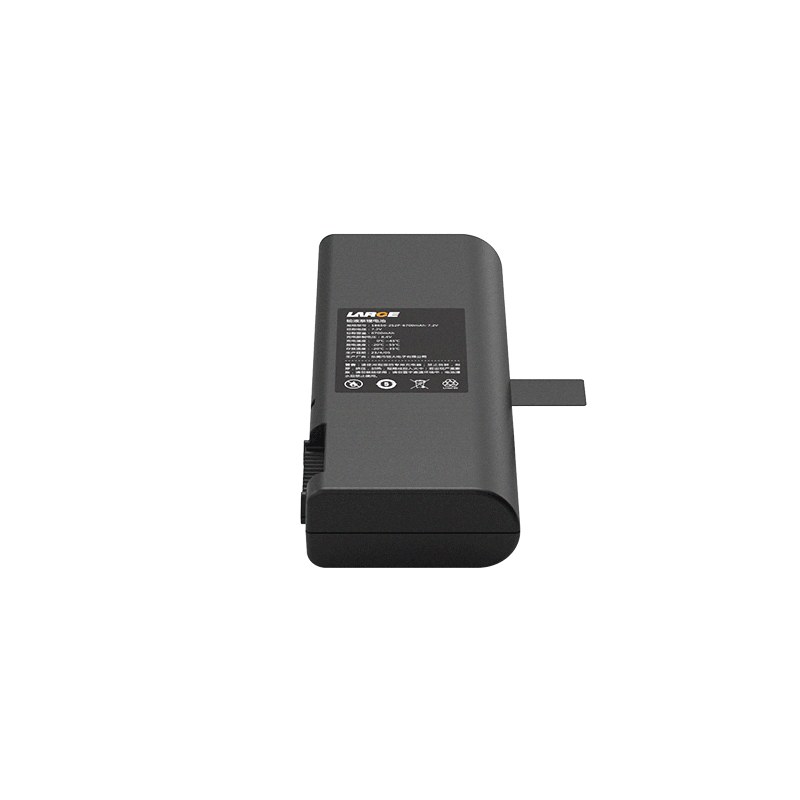

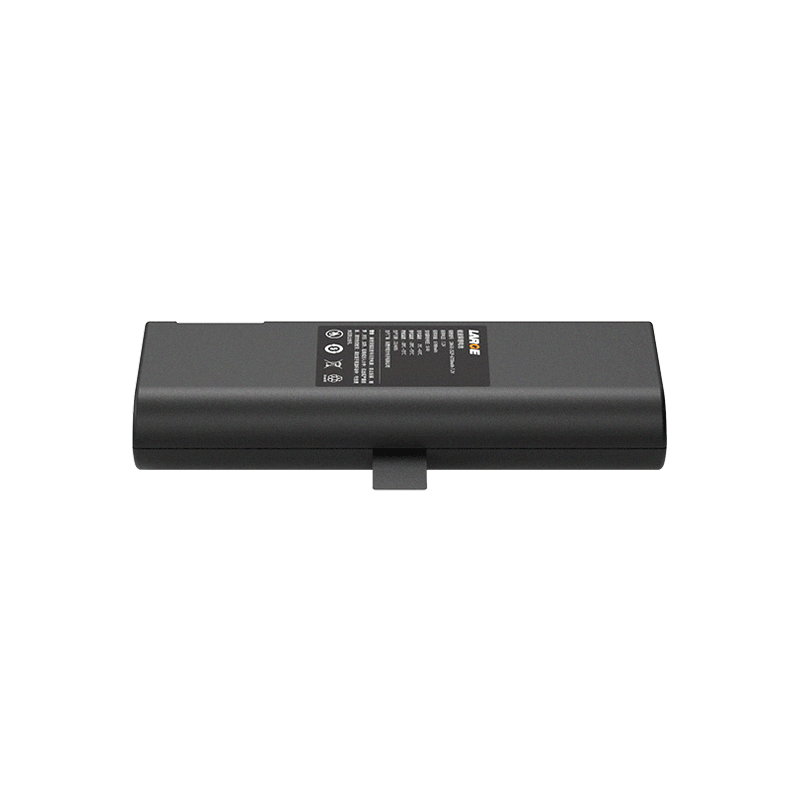

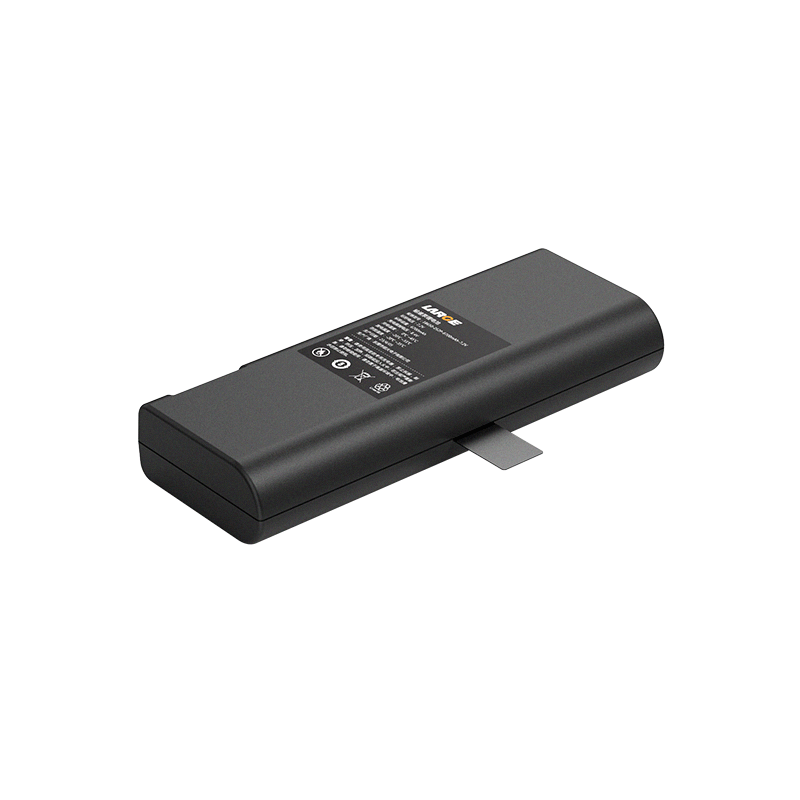

14.4V 5000mAh B-ultrasound 21700 Lithium-ion Battery Pack

Product number: 09AQ109-23

Battery model: INR21700-50S/5000mAh/3.6V-SDI

Battery specification: 21700/4S1P/5000mAh/14.4V

Nominal voltage: 14.4V

Nominal capacity: 5000mAh

Charging voltage: 16.8V

Charging current: ≤6.0A

Discharge current: 10.0A

Instant discharge current: 12.0A

Discharge cut-off voltage: 11.2V

Finished internal resistance: ≤150mΩ

Battery weight: 360g

Product size: 24.5*56*150mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 23℃

Battery case: ABS+PC

Intelligent lithium-ion battery protection: power management, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: B-ultrasound machine, medical equipment
