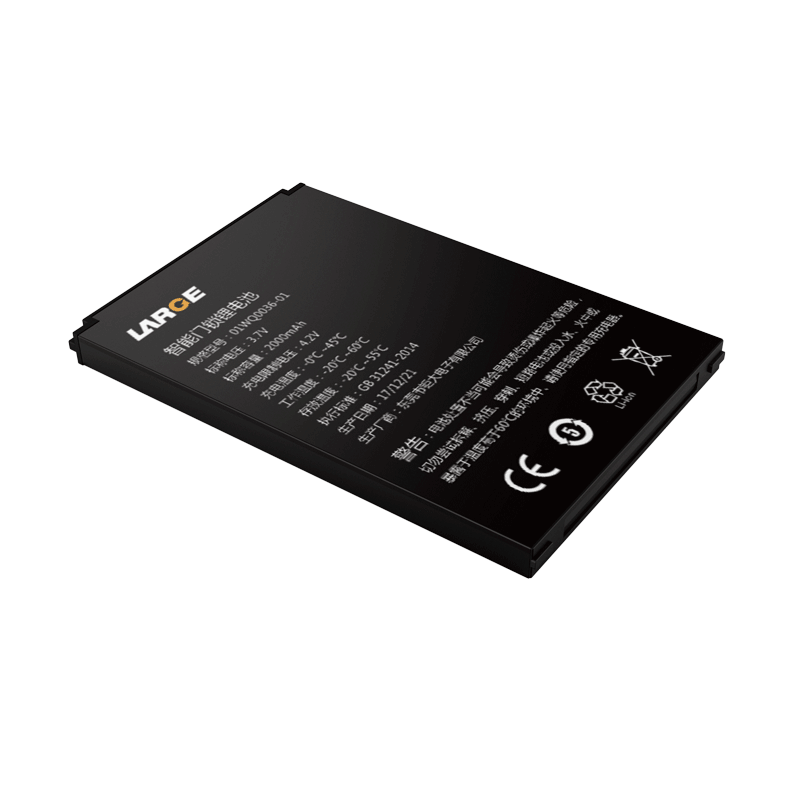

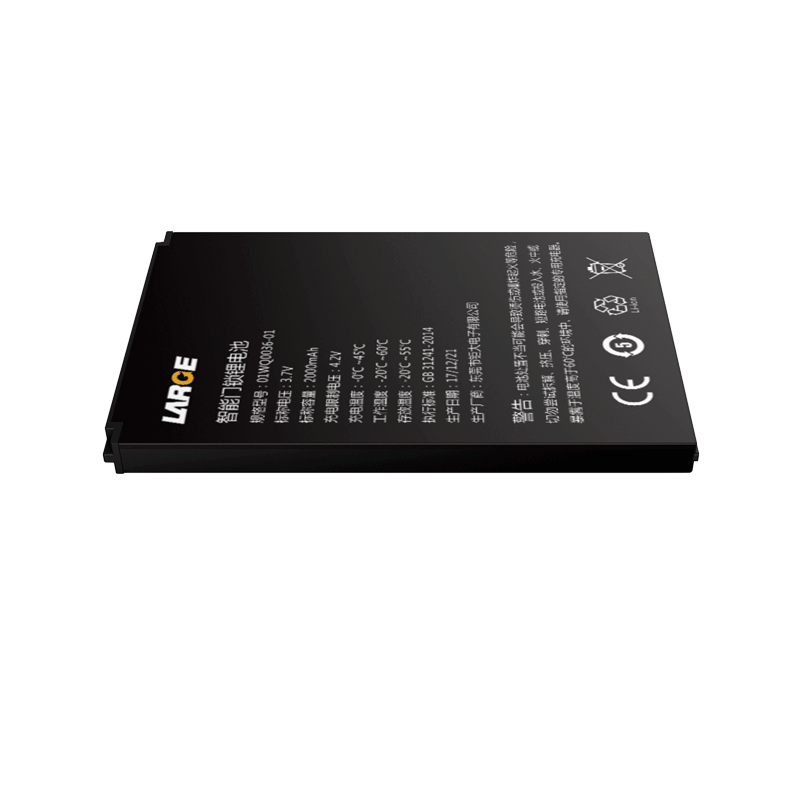

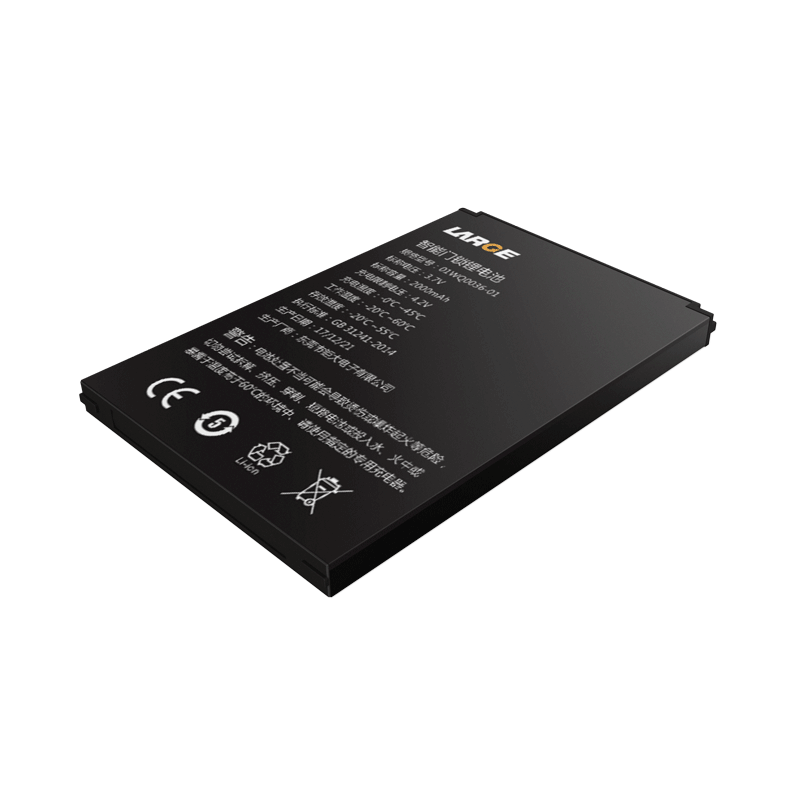

3.7V 2000mAh 435174 Lithium Cobalt Acid Battery Lithium Polymer Battery for Intelligent Door Lock

Product number: 01WQ0036-01

Cell model: 435174/3.7V/2000mAh

Battery specification: 435174-1S1P/3.7V/2000mAh

Nominal voltage: 3.7V

Nominal capacity: 2000mAh

Charging voltage: 4.2V

Charging current: ≤1A

Discharge current: 2A

Instantaneous discharge current: 2.5a

Discharge cut-off voltage: 3V

Finished product internal resistance: 150 mΩ or less

Battery weight: 0.11kg

Product dimension: 80.7*53.6*5.55mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -30 ~ 60 ℃

Storage temperature: -20 ~ 35 ℃

Battery packaging: plastic case + steel sheet

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: Outdoor signal
