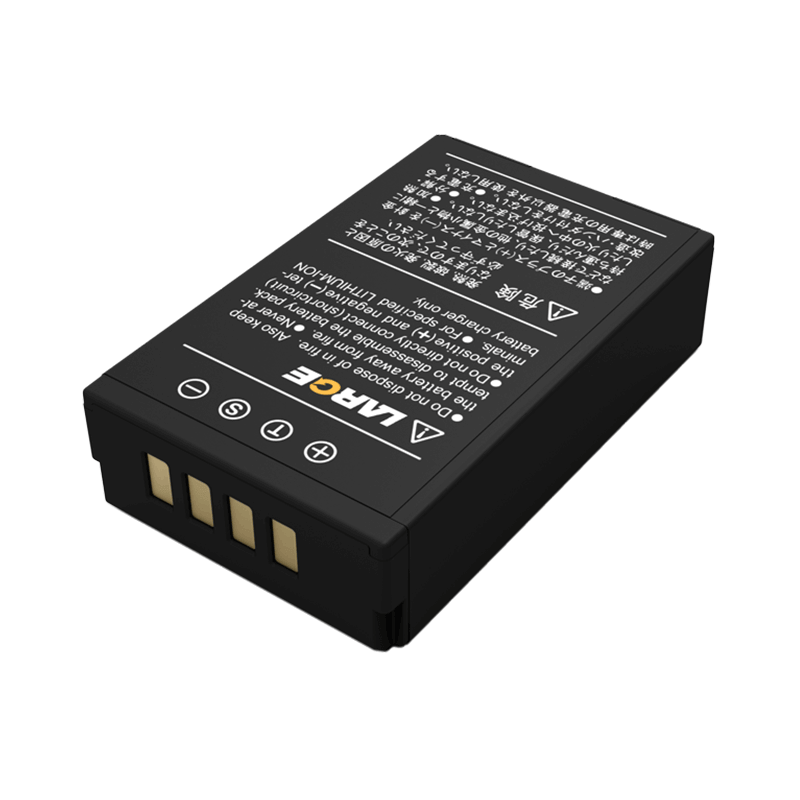

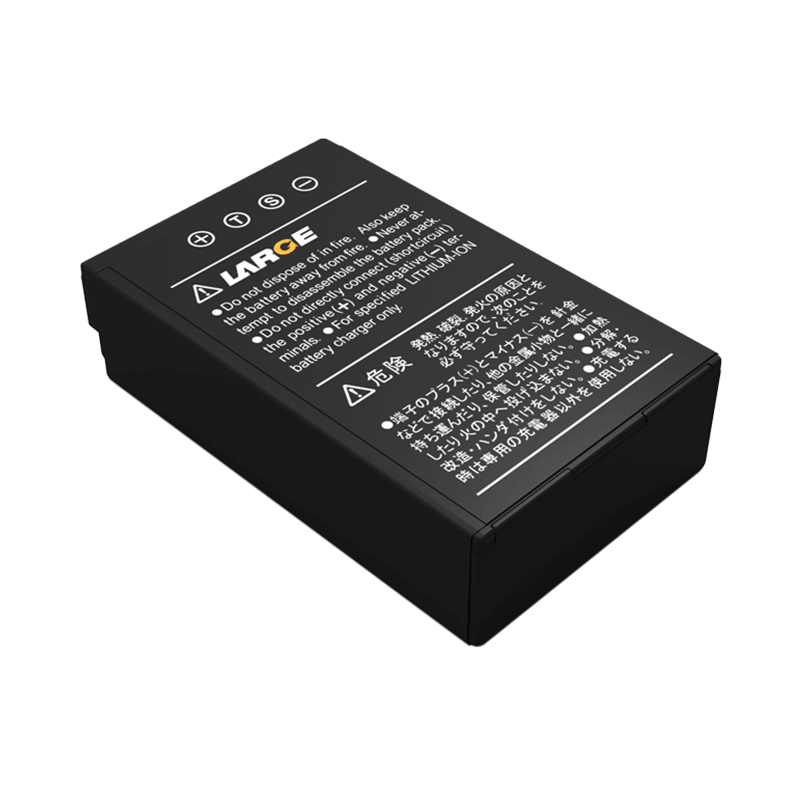

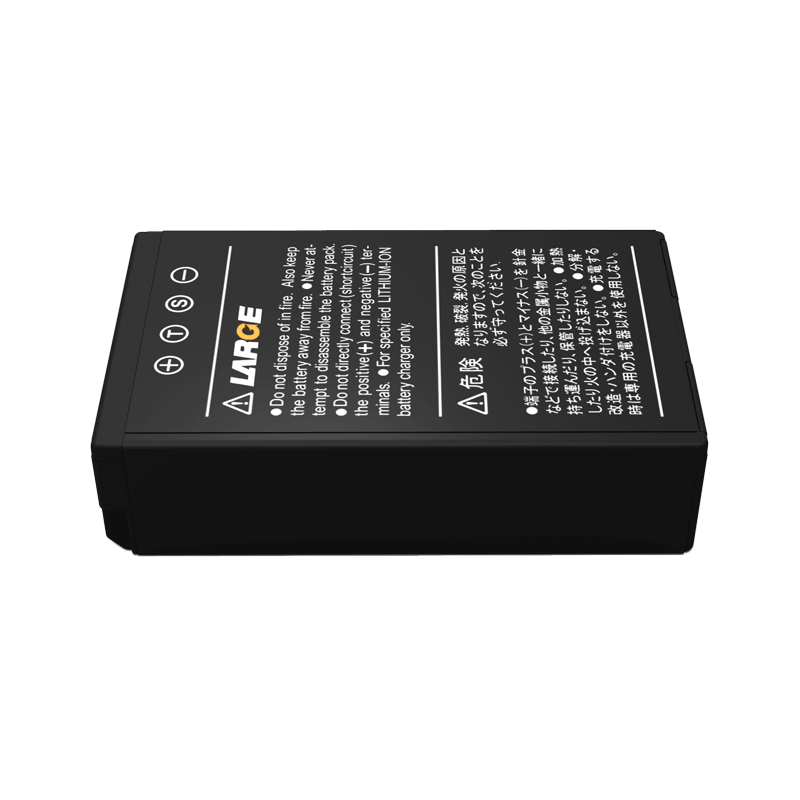

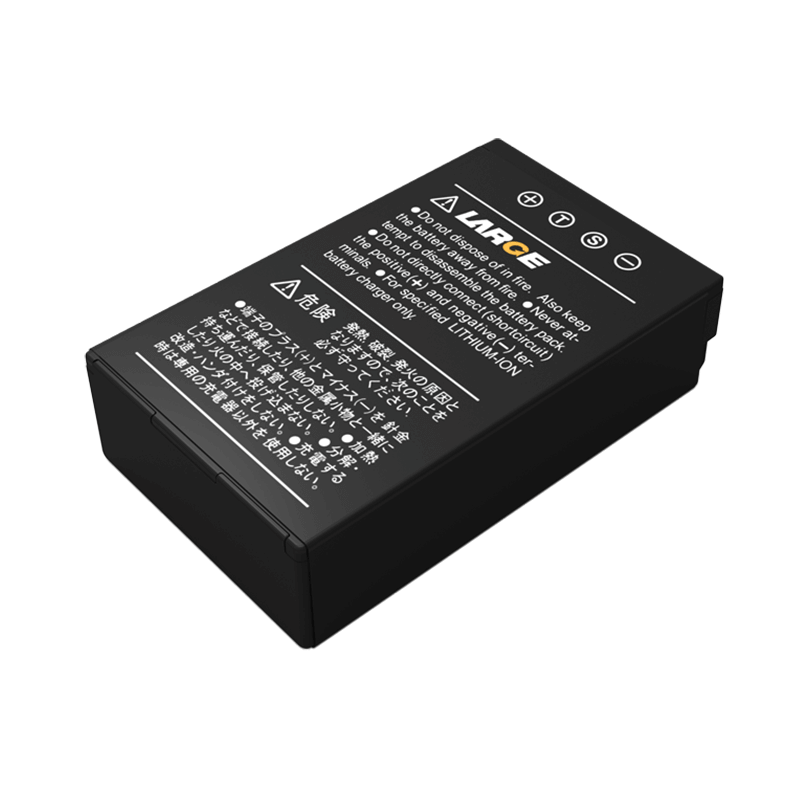

7.4V 1850mAh Lithium Polymer Battery for Interphone

Product Detail

Product number: 02DQ0209-02

Cell model:703961/3.7V/1850mAh

Battery specification: 703961-2S1P/7.4V/1850mAh

Nominal voltage:7.4V

Nominal capacity:1850mAh

Charging voltage: 8.4V

Charging current: ≤1.8A

Discharging current: 0.9A

Instant discharging current: 2.7A

End-off voltage: 6.0V

Internal resistance: ≤260mΩ

Battery weight: 75g

Product dimension: 17.3*41*66.3mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~45 ℃

Temperature protection: /

Battery case: engineering plastic ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: interphone


*
*
*
