Custom Lithium ion Battery Pack

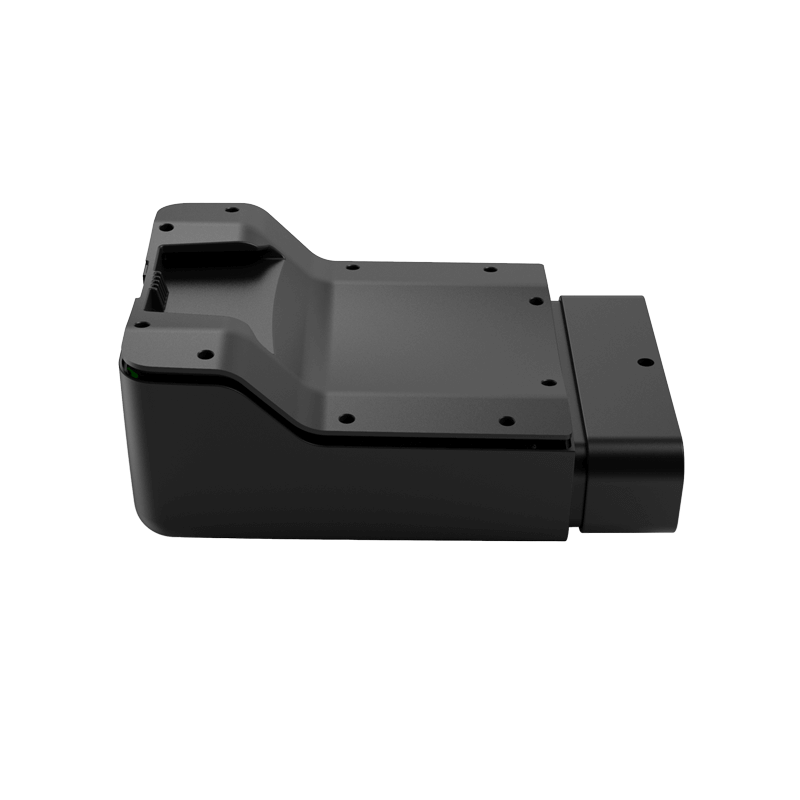

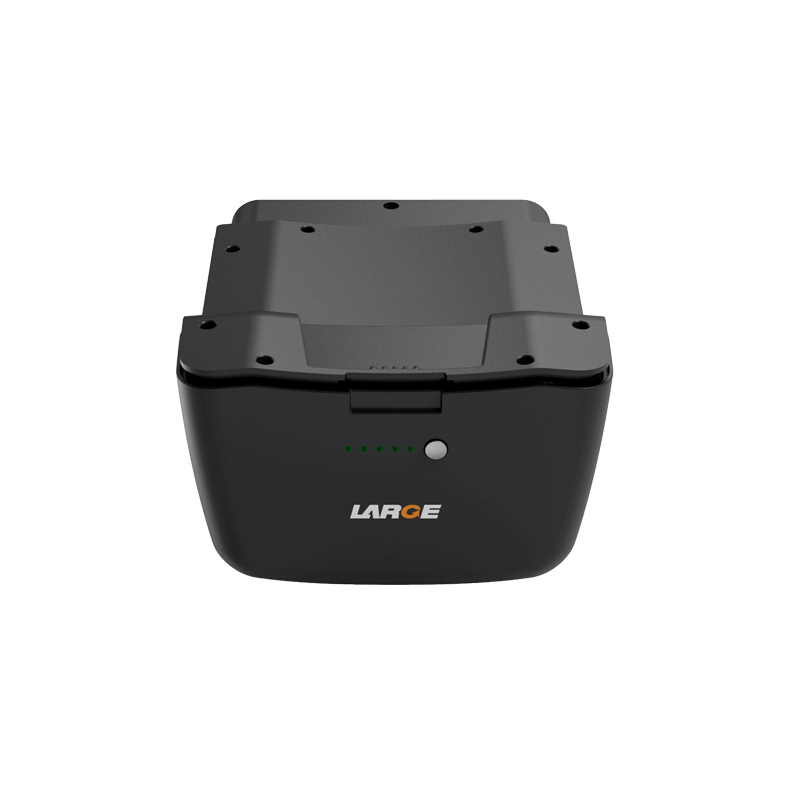

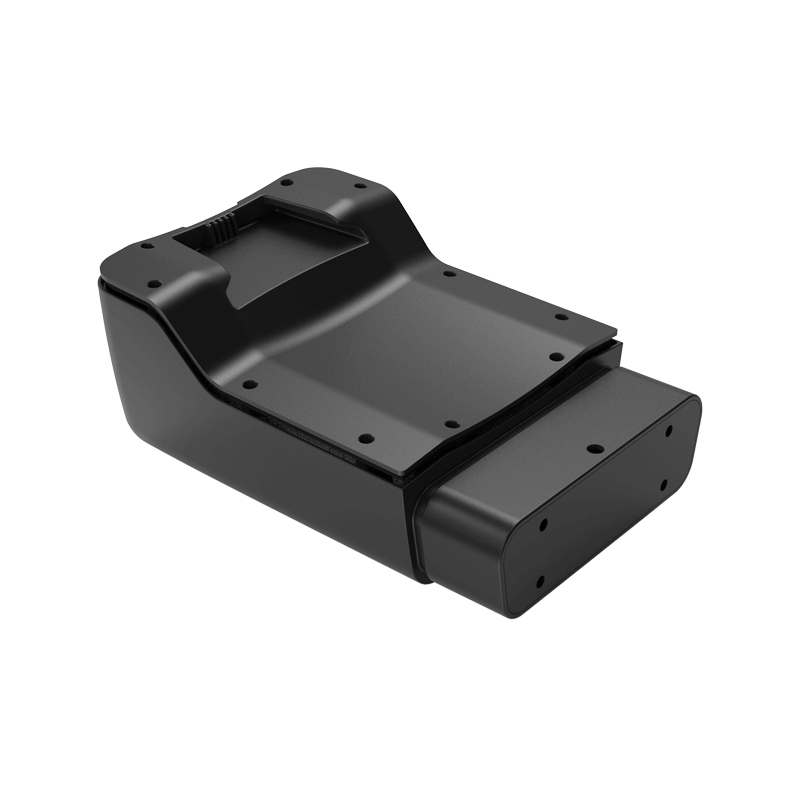

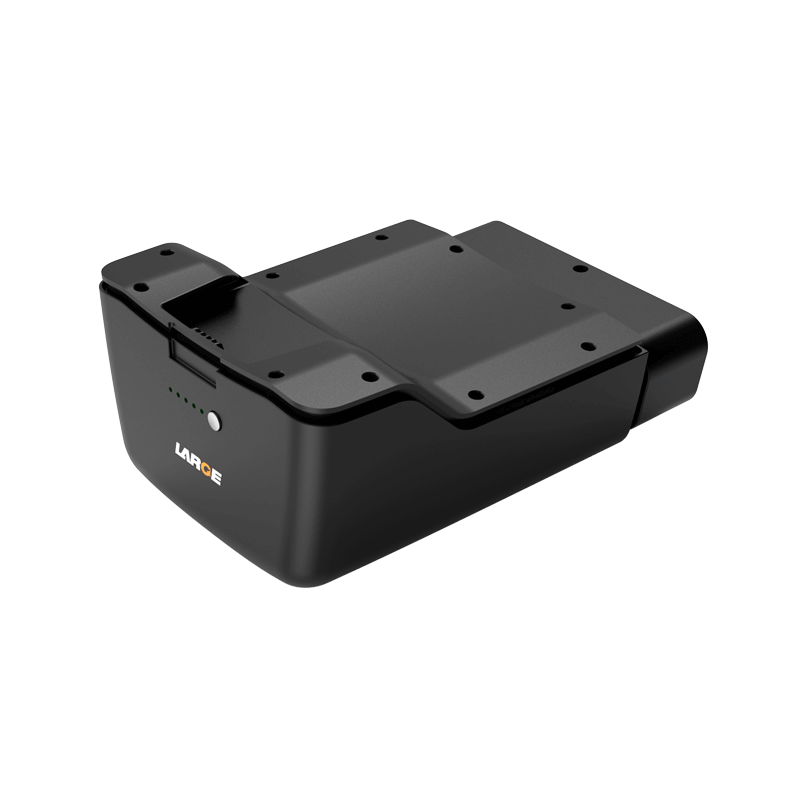

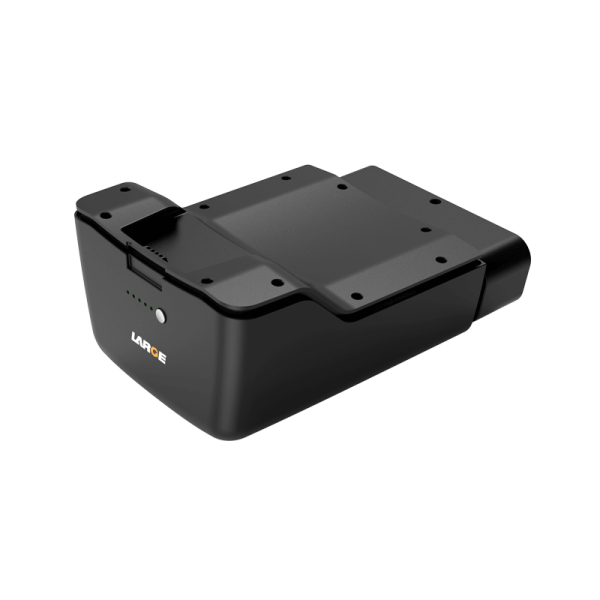

26650 35.2V 5.6Ah Lithium Ion Battery Pack for Lifter

Product Detail

Product number: 08DQ0021-02

Cell model: 26650/2800mAh/3.2V

Battery specification: 26650-11S2P/5600mAh/35.2V

Nominal voltage: 35.2V

Nominal capacity: 5.6Ah

Charging voltage: 39.6V

Charging current: ≤5.8A

Discharge current: 29.0A

Instant discharge current: 60A

Discharge cut-off voltage: 22.0V

Finished product internal resistance: ≤2500mΩ

Battery weight: 4.95kg

Product size: 104.26*172.55*230.94mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 25℃

Battery case: ABS+PC case

Intelligent lithium battery protection: power calculation, short circuit protection, overcharge protection, over discharge protection, over current protection, etc.

Application: Lifter

*
*
*
