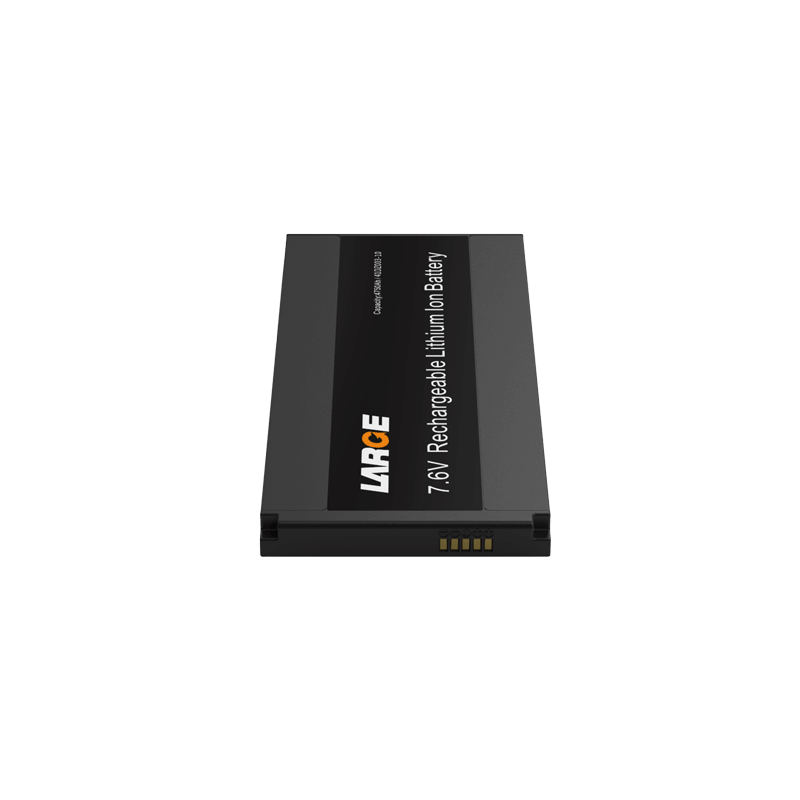

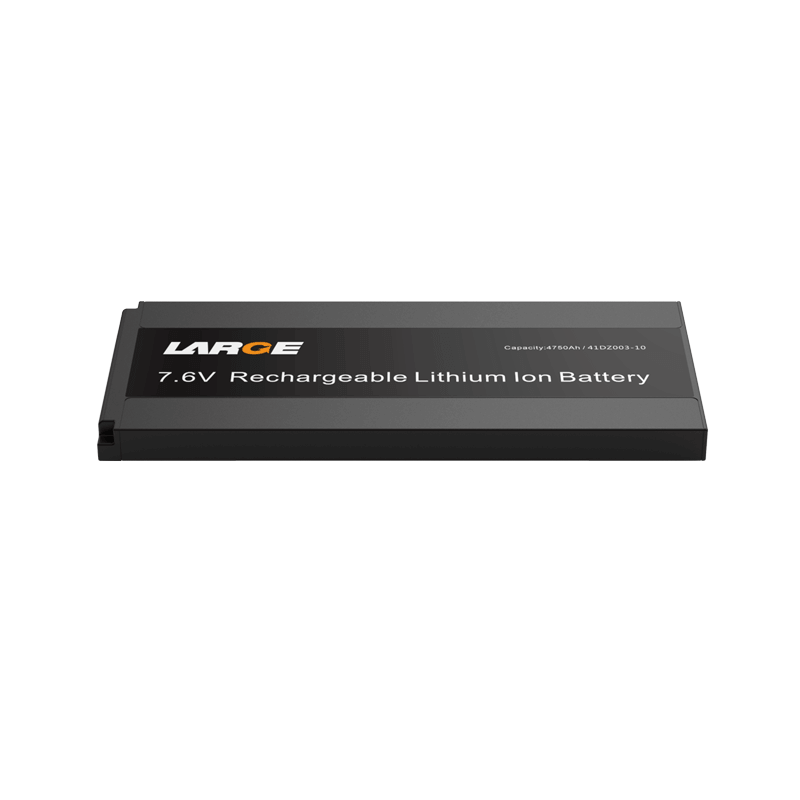

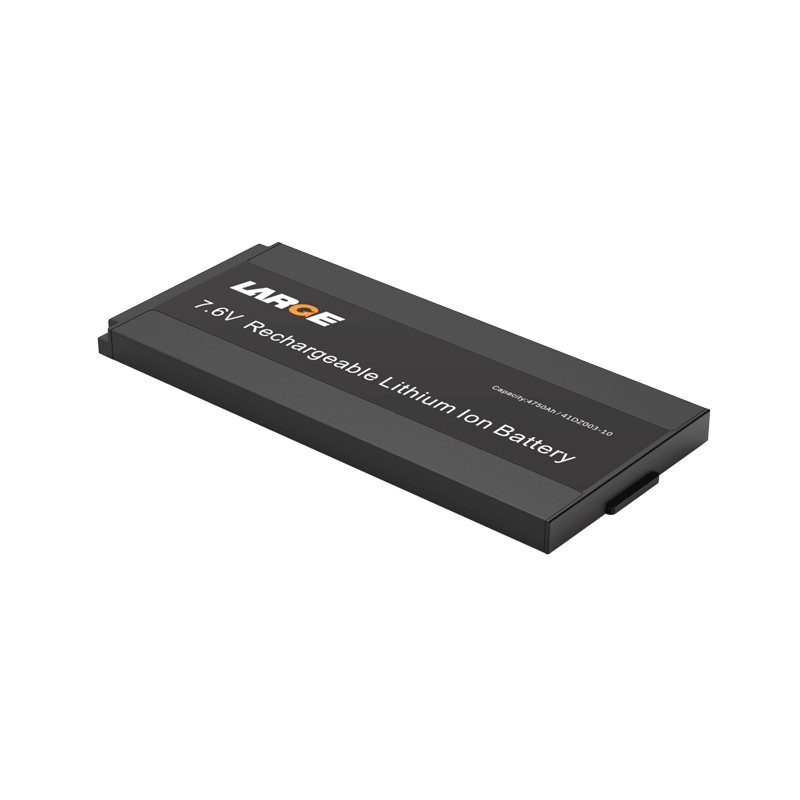

7.6V 4.75Ah Lithium Polymer Battery for Medical Assistance Electronic Loupe

Product number: 41DZ003-10

Cell model: 3760130PLV-4.35V-4750mah

Battery specifications: 3760130-2S1P/4.75Ah/7.6V

Nominal voltage: 7.6V

Nominal capacity: 4.75Ah

Charging voltage: 8.7V

Charging current: ≤ 2.375A

Discharge current: 2.375A

Instantaneous discharge current: 4.75A

Discharge cut-off voltage: 6V

Product internal resistance: ≤180mΩ

Battery weight: 180G

Product size: 145*65*9(mm)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 55℃

Storage temperature: -20 to 45 ° C

Battery case: industrial grade

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: auxiliary medical care

Product features

1.Current: The maximum continuously discharging current is 3A.

2.Data communication management: Adopt imported protection chip and MOS, including 10KNTC to transmit temperature changes in real time, and minimize security risks.

3.Features: Use self-developed super-high - capacity polymer cell.

4.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
