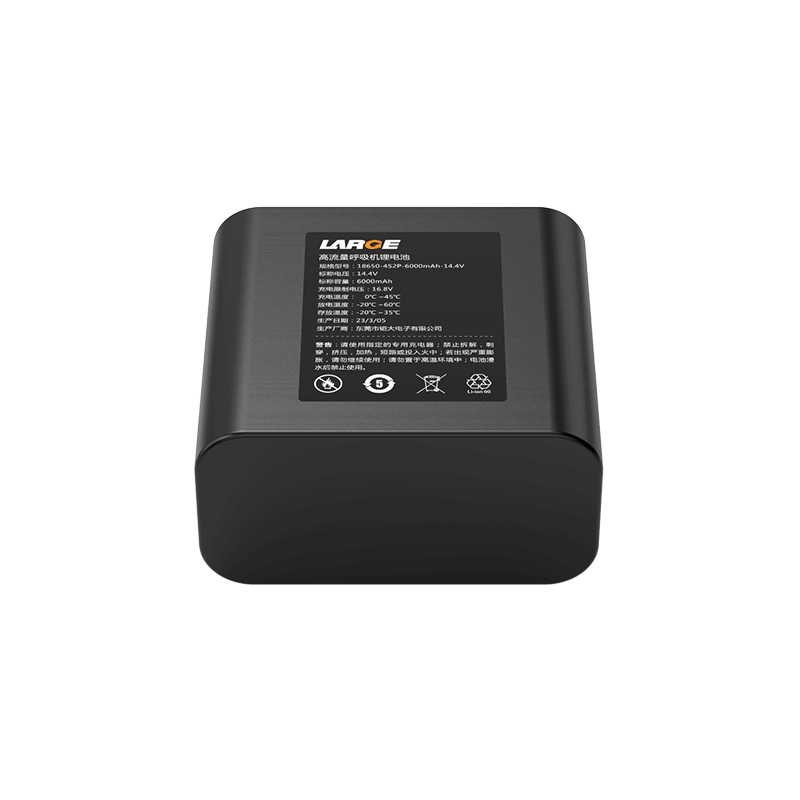

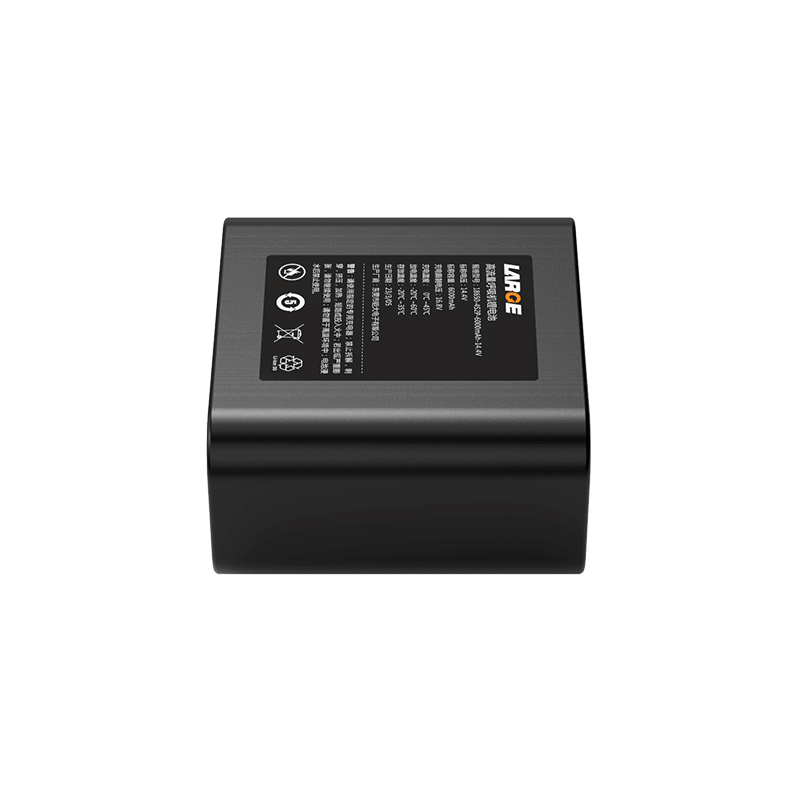

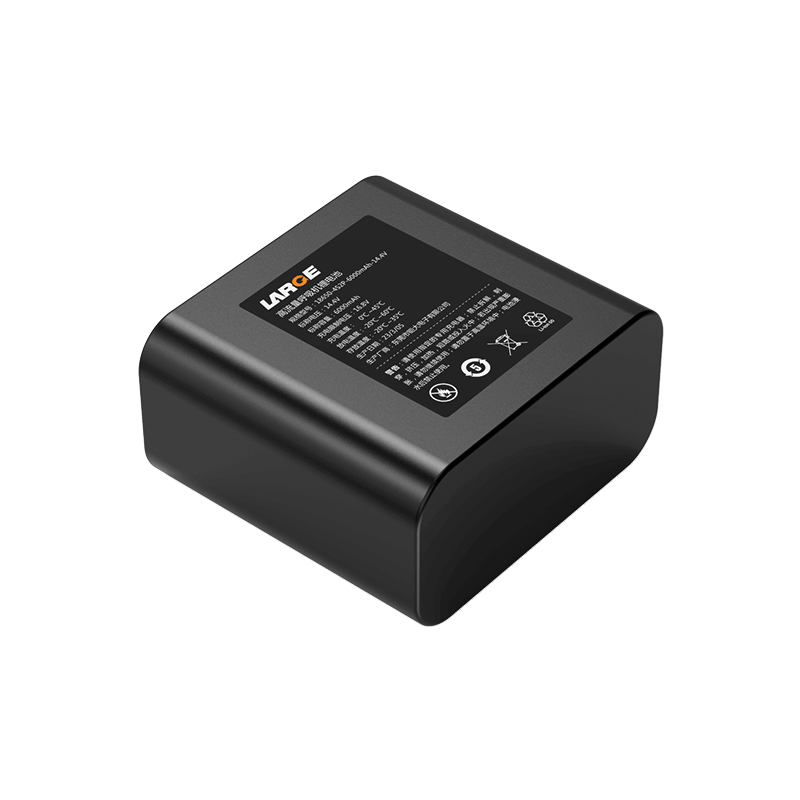

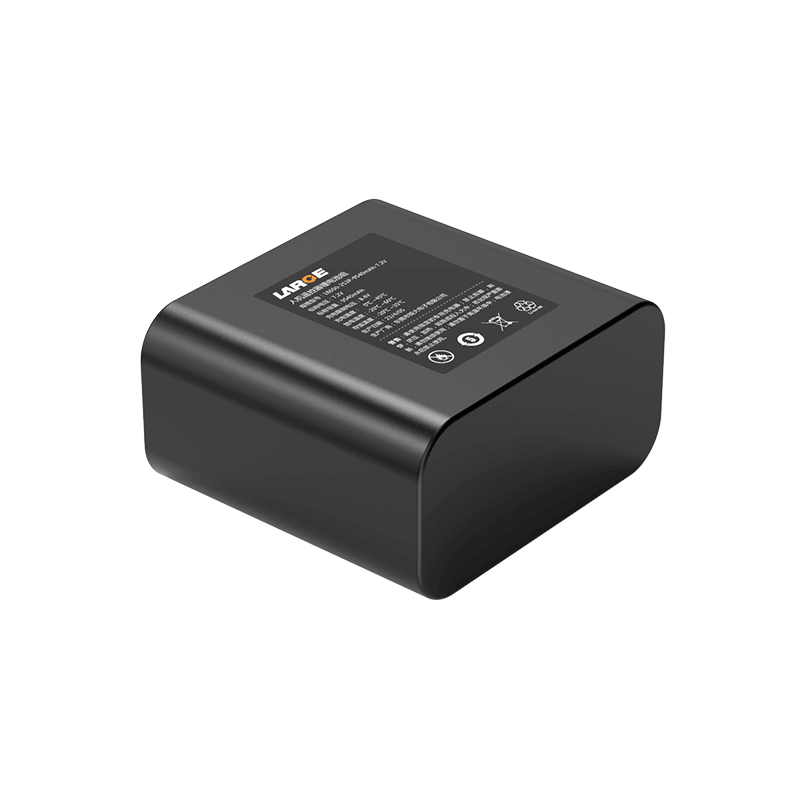

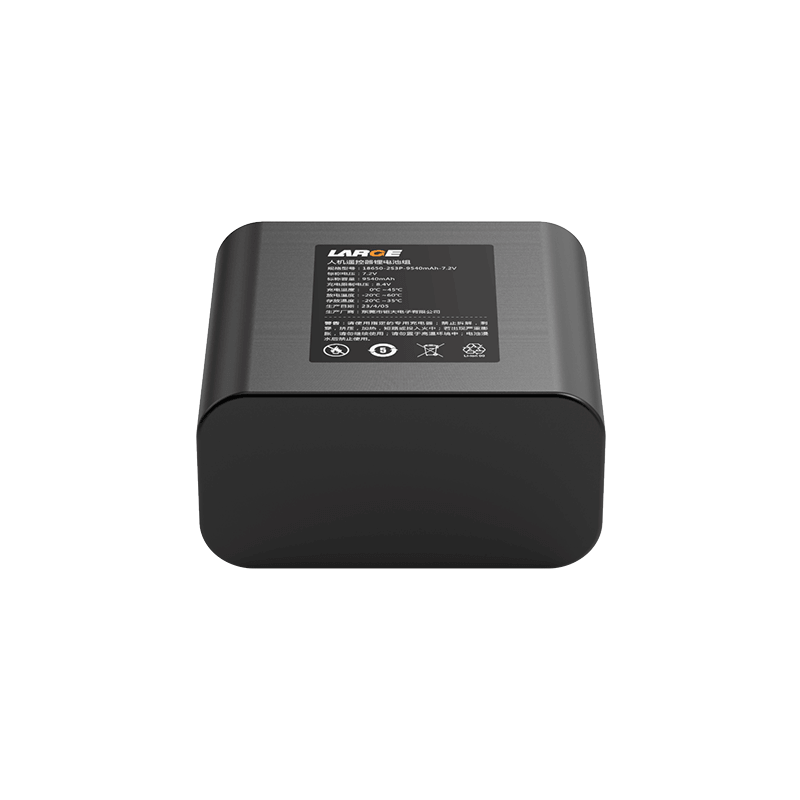

18650 14.4V 6000mAh High Flow Ventilator Lithium-ion Battery

Product number: 10DQ0087-01

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-4S2P-6000mAh-14.4V

Product size: 76*72*39mm (Max)

Nominal voltage: 14.4V

Nominal capacity: 6000mAh

Finished internal resistance: ≤200mΩ

Charging voltage: 16.8V

Charging current: ≤3.0A

Discharge current: ≤3.0A

Discharge cut-off voltage: 10.8V

Battery weight: 400g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.

Applications: ventilator, oxygen generator, portable equipment, medical equipment

Product Features

1.Blue PVC heat shrink film package is simple and reliable,and easy to install;

2.Connector plug output terminal: use MOLEX plug output mode to increase the electrical reliability of the plug;

3.Data communication management: TI-SMBus software management chip, SMBus communication accurate data transmission, accurate temperature control, to minimize security risks.

4.Battery management: high stability, high precision monitoring, accurate control, ESD protection, temperature protection and other functions,so as to minimize security risks.

5.The battery pack has nice safety, good discharge performance and long cycle life;

6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
