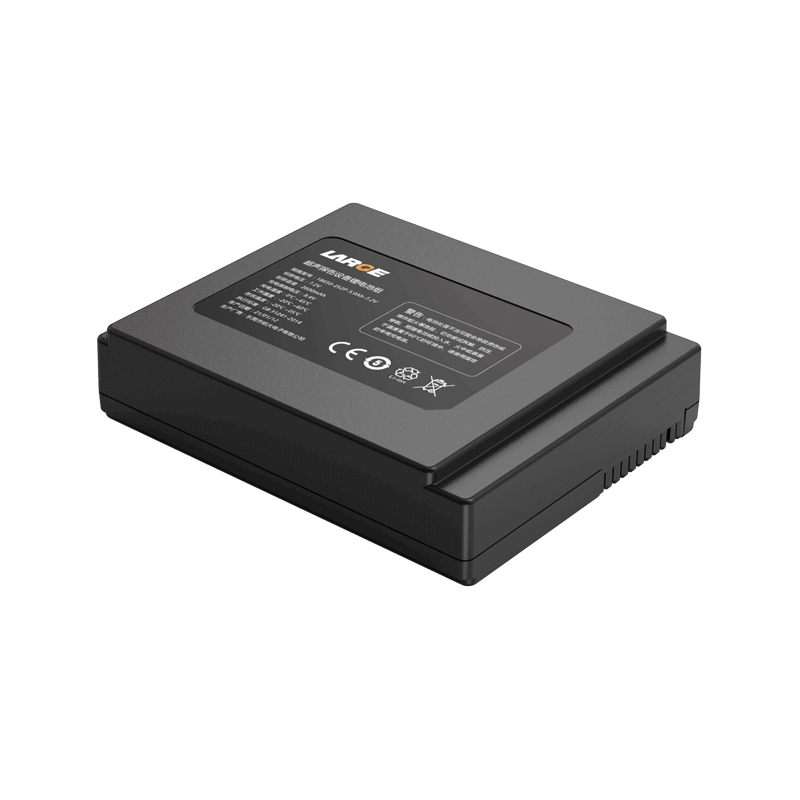

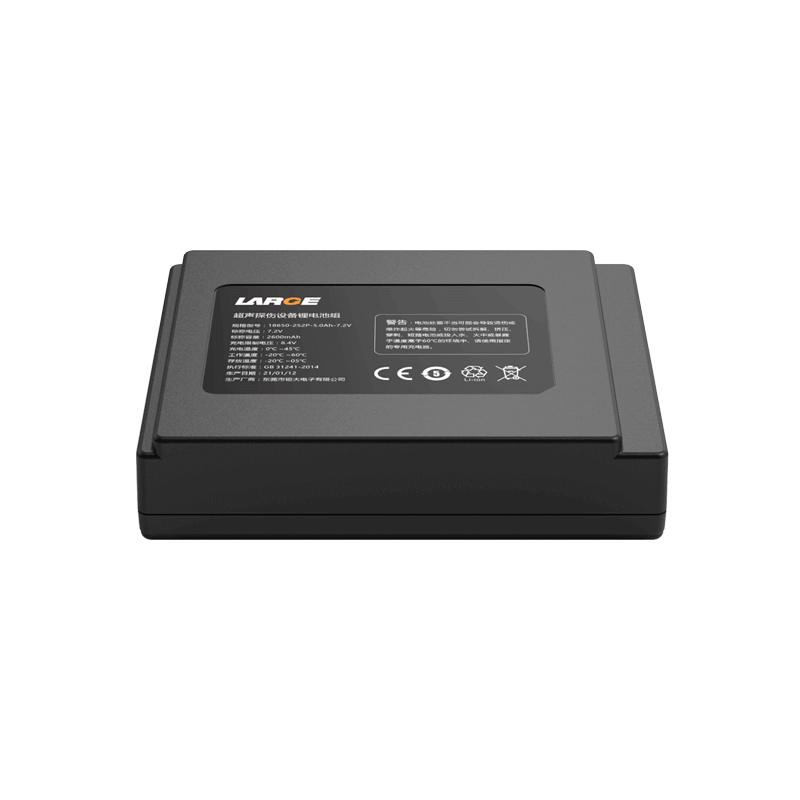

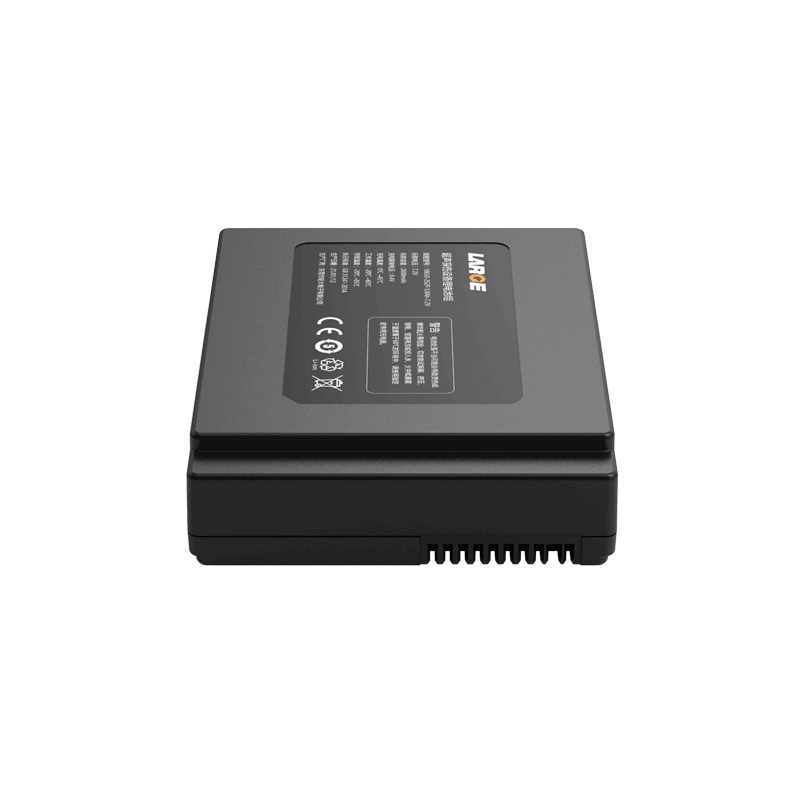

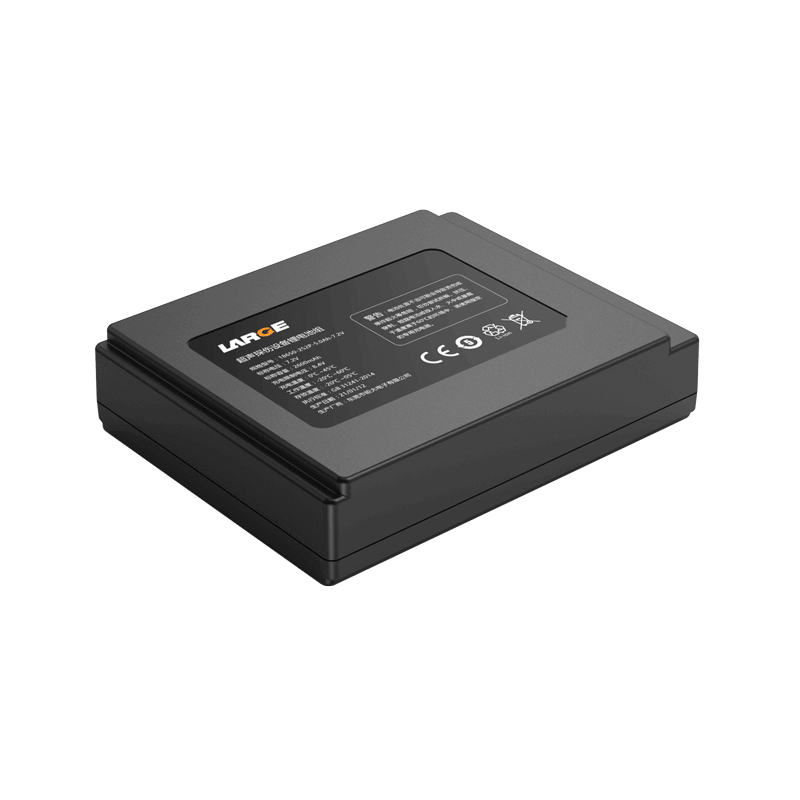

18650 7.2V 5.0Ah Lithium ion Battery Pack
Product Number:
05DQ0052-01
Nominal voltage:
7.2V
Nominal capacity:
5Ah
Battery Configuration:
18650-2S2P
Dimension:
88.8*70.8*17.8mm
Application:
industrial equipment
Plastic Case Design,Multi Protection Circuit,Stable 2S2P Structure
Product Overview
This battery is designed for ultrasonic flaw detection equipment used in industrial non-destructive testing scenarios. It provides stable output and reliable power support, ensuring continuous operation and high-precision inspection performance in demanding field environments with compact structure and robust safety protection.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 05DQ0052-01 |
| Cell Model | Sanyo UR1865ZM2 / 2550mAh / 3.6V |
| Battery Configuration | 2S2P |
| Nominal Voltage | 7.2V |
| Nominal Capacity | 5Ah |
| Rated Energy | 36Wh |
| Charging Voltage | 8.4V |
| Discharge Cut-off Voltage | 6V |
| Standard Charging Current | ≤2.4A |
| Standard Discharge Current | ≤2.5A |
| Internal Resistance | ≤220mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage Temperature | -20～+50℃ (1 month) / -20～40℃ (<3 months) / -20～+20℃ (<12 months) |
| Dimensions | 88.870.817.8mm (Max) |
| Weight | 200g |
| Battery Case | Plastic case |
| Protection System | Short circuit protection, overcharge protection, over-discharge protection, overcurrent protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
