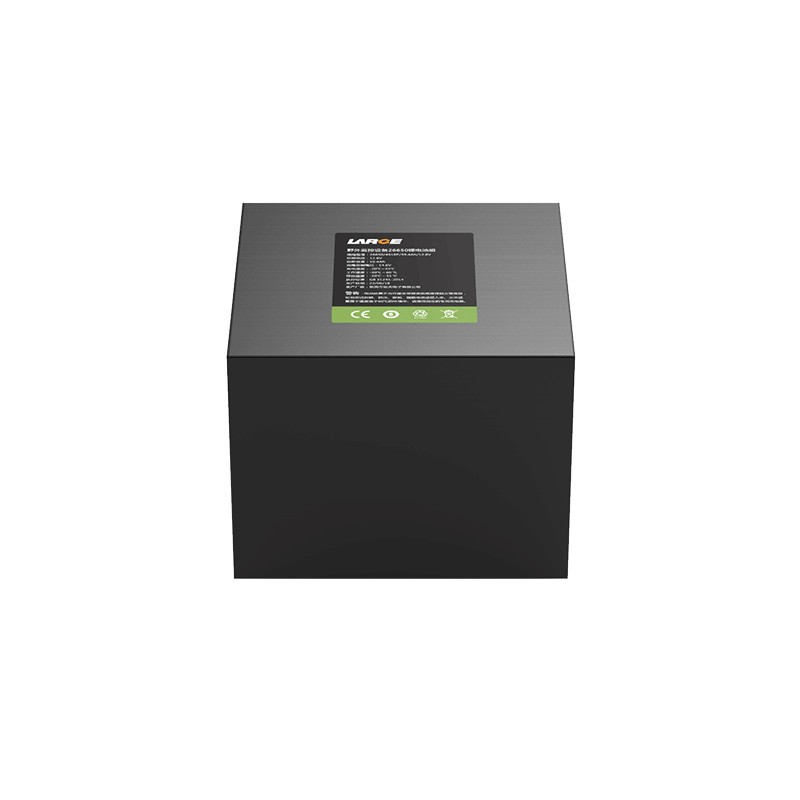

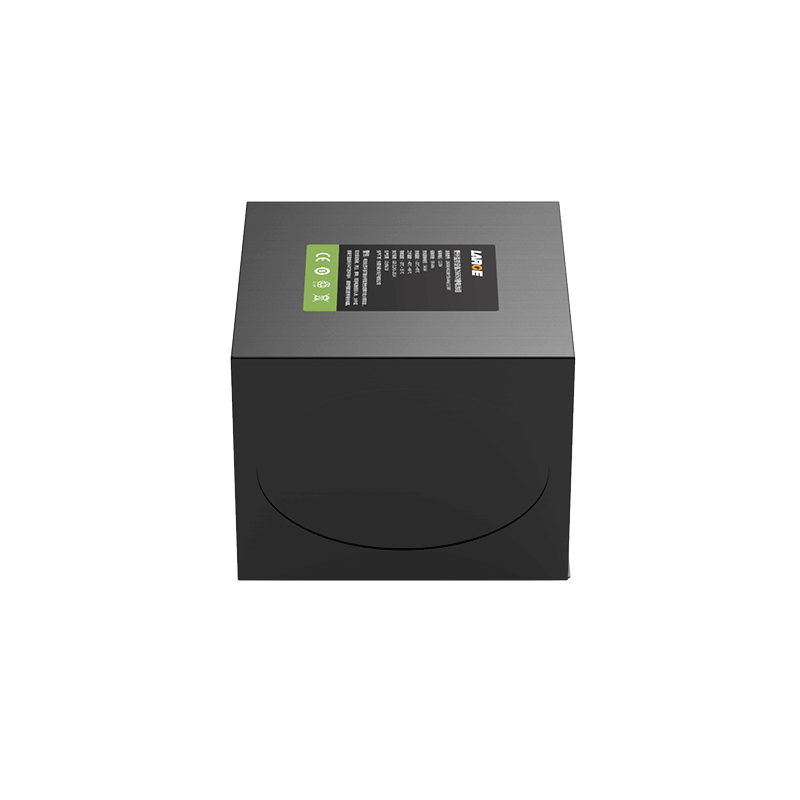

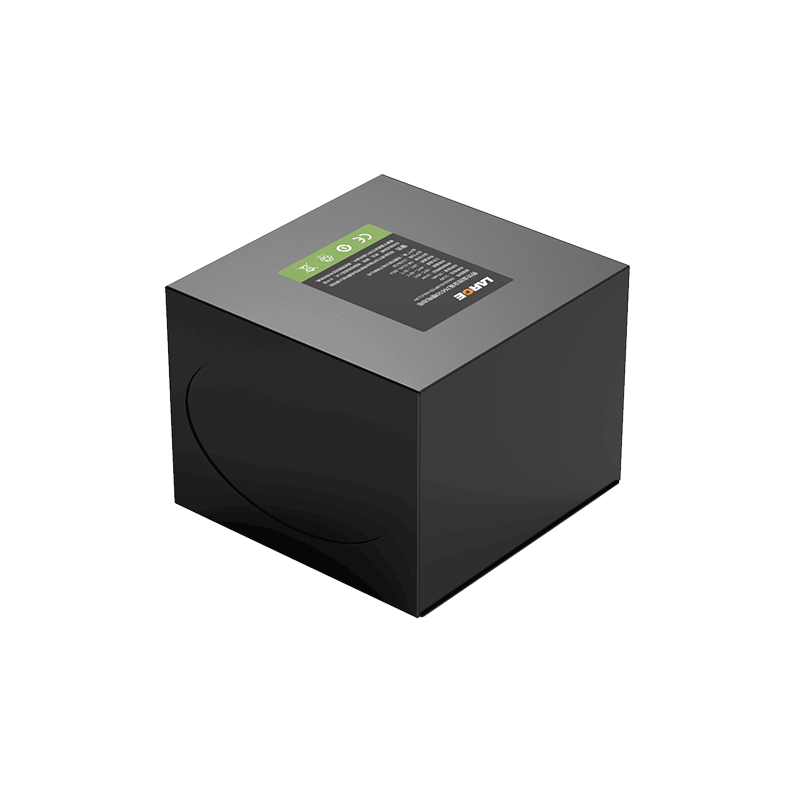

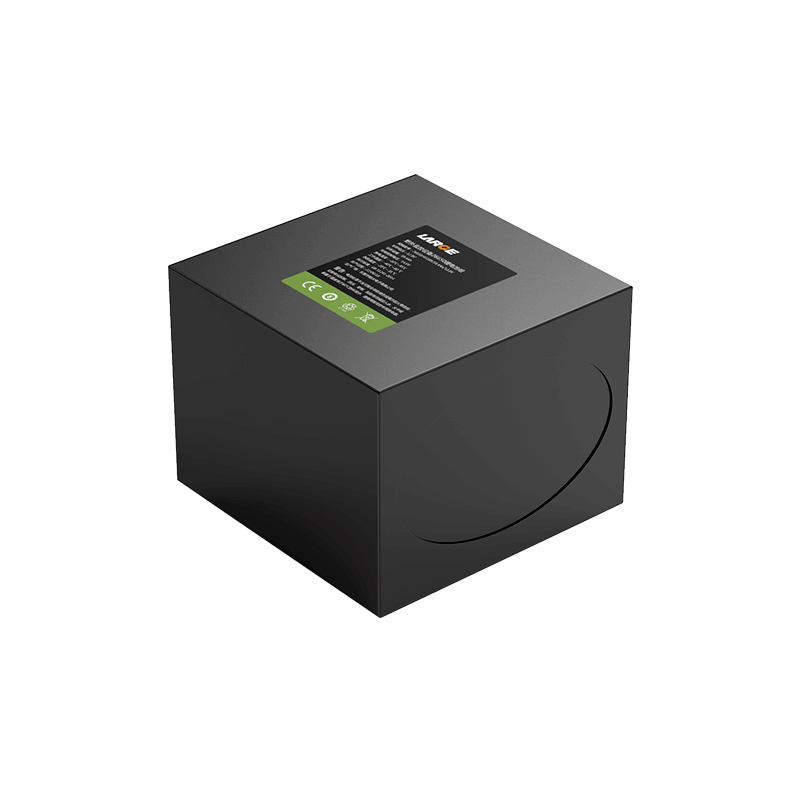

26650 12.8V 59.4Ah Low Temperature LiFePO4 Battery for Field Monitoring Equipment

Product number: 01WQ0090-01

Cell model: 26650/3300mAh/ 3.2V-Low temperature

Battery specification: 26650-4S18P/59.4AH/12.8V

Nominal voltage: 12.8V

Nominal capacity: 59.4Ah

Charging voltage: 14.6V

Charging current: ≤20.0A

Discharge current: 20.0A

Instant discharge current: 30A

Discharge cut-off voltage: 10.0V

Finished internal resistance: ≤150mΩ

Battery weight: 10kg

Product dimension: 140*179*183mm

Charging temperature: -20 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery case: None

Intelligent lithium battery protection: power management, short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: Field monitoring equipment
