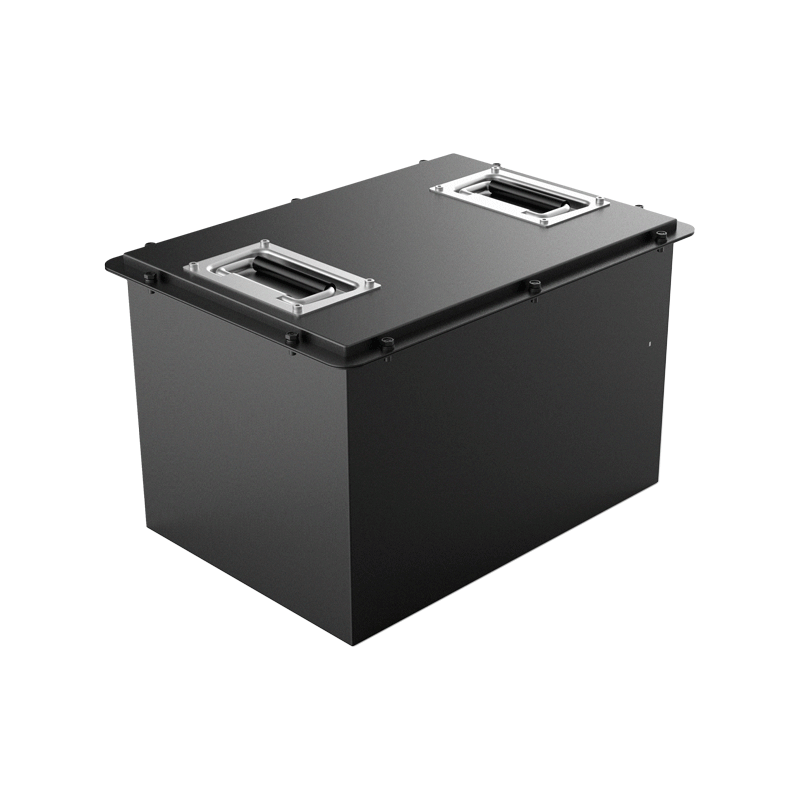

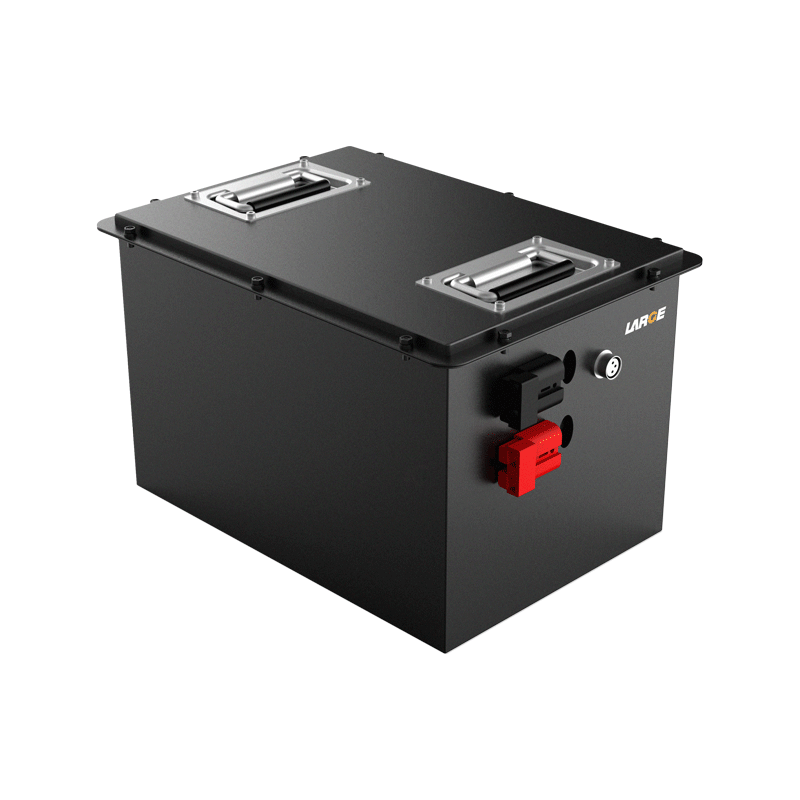

26650 48V 50Ah LiFePO4 Battery for AGV

Product Detail

Product number: 03EQ115-01

Cell model:LiFePO4 26650/3.2V/3.5Ah

Battery specification: LiFePO4-15S16P/48V/50Ah

Nominal voltage:48V

Nominal capacity:56Ah

Charging voltage: 54V

Charging current: ≤25A fast charge 0.5C2.5h fully charge

Discharging current: 50A

Instant discharging current: 150A

End-off voltage: 37.5V

Internal resistance: ≤150mΩ

Battery weight: 35kg

Product dimension: 395*285*240mm(Max) do not include the size of mounting holes

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~60 ℃

Temperature protection: 65℃±5℃

Battery case: cold-rolled sheet + housing sprayed powder

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, 485 communication, etc.

Application: industrial equipment, AGV logistics van, RGV, patrol robot, etc.


Product features

1. Large current: connect the batteries by copper nickel compositing with nickel strap so as to meet the requirements of charging and discharging with large current, which is safe and reliable.

2. Communication interface: adopt aviation connector, compatible RS485 communication protocol and can read the information of battery voltage, current, temperature, capacity, etc.

3. Data communication management: adopt BMS software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

4. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

6. Charging: the plug adopts Anderson socket supporting 0.5C fast charge.

*
*
*
