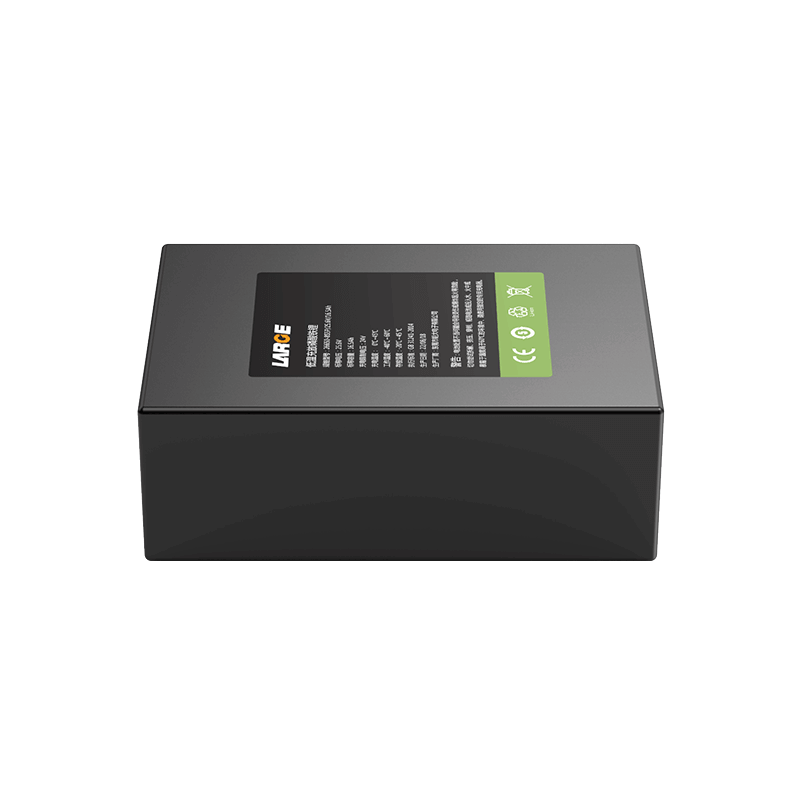

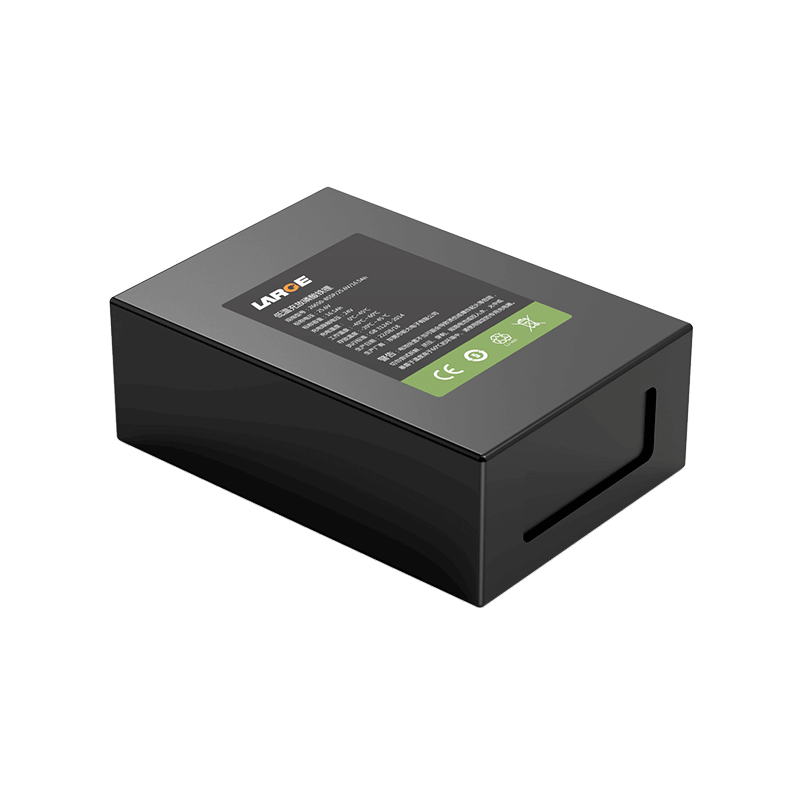

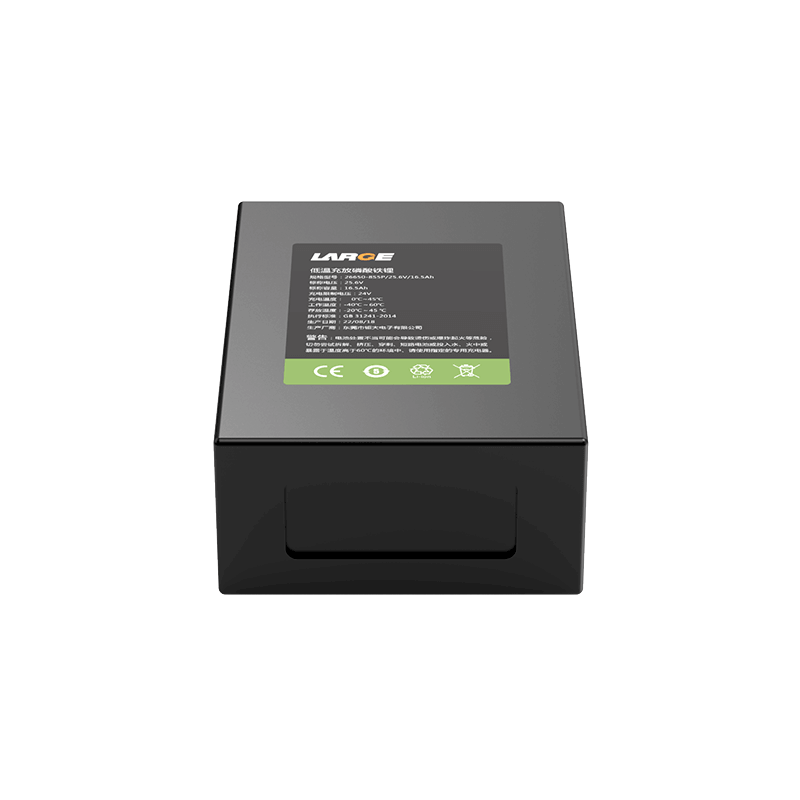

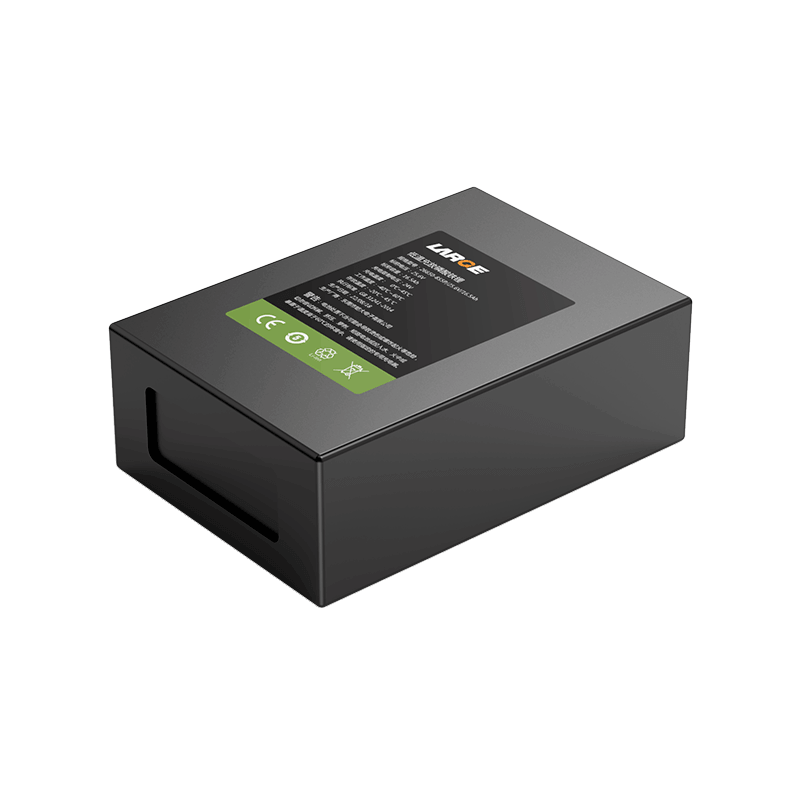

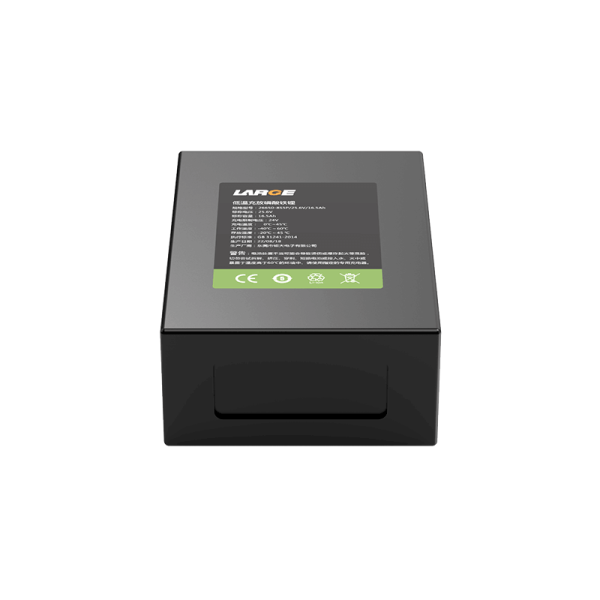

26650 25.6V 16.5Ah Low Temperature LIFePO4 Battery for Industrial Equipment Backup Power Supply

Project number: 37DZ079-05

Cell model: 26650/3.2V/3.3Ah

Battery specification: 26650-8S5P/25.6V/16.5Ah

Nominal voltage: 25.6V

Nominal capacity: 16.5Ah

Charging input voltage: 24V

Charging current: 3A (constant current and constant voltage management)

Discharge voltage: 16-29.2(voltage regulator)

Discharge cut-off voltage: 16V

Internal resistance of finished product: ≤200mΩ

Battery weight: 13.5Kg

Product size: 80*162*230mm

Charging temperature: -20 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -20 ~ 45 ° C

Temperature protection: 65℃±5℃

Battery case: bracket PVC construction

Communication: 485 communication with LCD display

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, etc.

Application: Industrial equipment, backup power supply
